$0.97 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

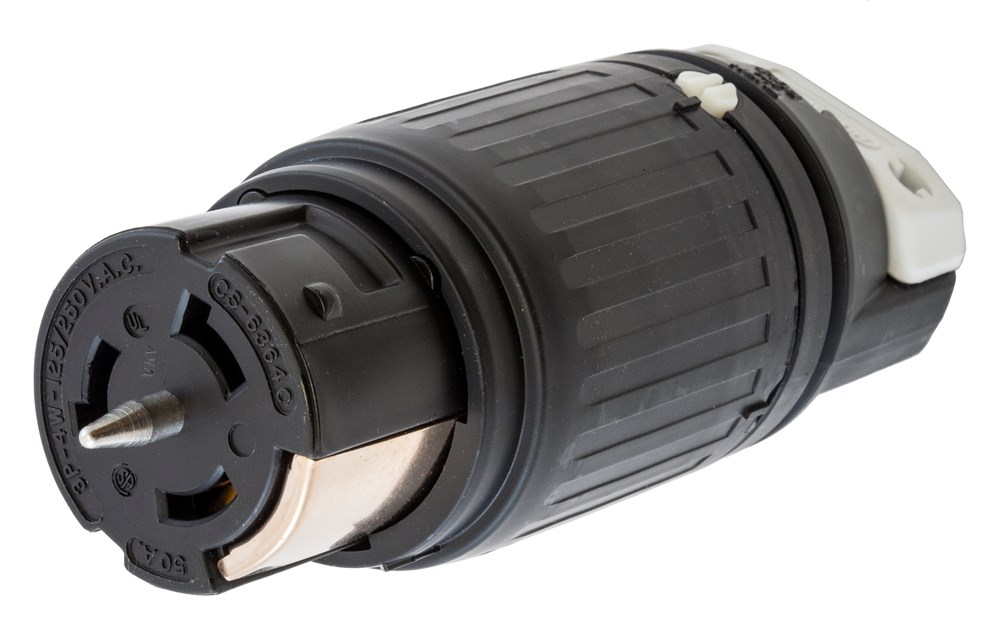

Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 50A 125/250V, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black and White
Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 50A 125/250V, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black and White
150
- UPC
- 783585827971
- UNSPSC
- 39121421
- Country of Origin
- US
- Amperage Rating:
- 50 A
- Color:
- Black/White
- Material:
- Nylon
- Number Of Poles:
- 3
- Size:
- 6.50 in x 2.56 in x 2.50 in
- Type:
- Connector Body
- Voltage Rating:
- 125/250 VAC
- Amperage Rating:
- 50 A
- Brand ID:
- WIRING DEVICE-KELLEMS
- Cable Range:
- 0.830 - 1.250 in
- Carton Quantity:
- 10
- Catalog Number:
- CS6364C
- Color:
- Black/White
- Conductor Range:
- #6AWG
- Connection:
- Pressure Screw Terminal
- Cord Diameter:
- 0.830-1.250 in
- Cord Range:
- .830"-1.250"(21.08-31.75)
- Current / Amperage Rating:
- 50 A
- Current Rating:
- 50 A
- Description - Long:
- Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 50A 125/250V, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black and White
- Description - Short:
- Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 50A 125/250V, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black and White
- EU RoHS Indicator:
- No
- Environmental Conditions:
- Indoor Dry Unless Protected By Additional Means
- FEATURES - Bullets:
- Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands;Heavy duty two-piece external cord clamp provides maximum strain relief;Thermoplastic polyester interior provides heat resistance and impact strength;Oversized contacts minimize operating temperature
- FV_Voltage Rating Description:
- 125/250 VAC
- Insulation:
- Insulated Body
- Material:
- Nylon
- Mounting:
- Cord Mounted
- NEMA Rating:
- Non-NEMA
- Number Of Conductors:
- 4-Wire Non-Grounding
- Number Of Poles:
- 3
- OEM Brand Name:
- Hubbell Wiring Device-Kellems
- Performance:
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better;Environmental - Operating Temperatures - Maximum continuous 75°C minimum –40°C (w/o impact);Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only
- Product Name:
- CS6364C
- Size:
- 6.50 in x 2.56 in x 2.50 in
- Standard:
- Certified to CSA C22.2 No.42;Listed to UL 498
- Sub Brand:
- 50A Twist-Lock
- Temperature Rating:
- Maximum Continuous: 75В° C; Minimum Continuous: -40В° C w/o impact, -25В° with impact.
- Type:
- Connector Body
- Voltage Rating:
- 125/250 VAC
- Voltage Rating Description:
- 125/250 VAC
HBL7314C
$52.64 /ea
Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 20A 125/250V, 3-Pole 3-Wire Non Grounding, Non- NEMA, Screw Terminal, Black and White Nylon.
| Attributed Data | Included |
|---|---|
| Brand ID | WIRING DEVICE-KELLEMS Yes |
| Cable Range | 0.360 - 0.930 in Yes |
| Catalog Number | HBL7314C Yes |
| Color | Black/White Yes |
| Conductor Range | #14AWG to #12AWG Yes |
| Connection | Pressure Screw Terminal Yes |
| Description - Long | Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 20A 125/250V, 3-Pole 3-Wire Non Grounding, Non- NEMA, Screw Terminal, Black and White Nylon. Yes |
| Description - Short | Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 20A 125/250V, 3-Pole 3-Wire Non Grounding, Non- NEMA, Screw Terminal, Black and White Yes |
| EU RoHS Indicator | Yes Yes |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means Yes |
| FEATURES - Bullets | Ribbed nylon housing provides a secure grip and impact and chemical resistance.;Superior cord grip design protects terminations from excess strain.;Clear, funnel shaped wire entry for ease of termination.;Integral dust shield protects wiring chamber from dust or contaminants. Yes |
| Insulation | Insulated Body Yes |
| Item Type | 20A Insulgrip® Connector Yes |
| Material | Nylon Yes |
| Material - Mounting Hardware | Cord Mounted Yes |
| Mounting | Cord Mounted Yes |
| NEMA Rating | Non-NEMA Yes |
| Number Of Conductors | 3-Wire Non-Grounding Yes |
| Number Of Poles | 3 Yes |
| OEM Brand Name | Hubbell Wiring Device-Kellems Yes |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 Yes |
| Product Name | HBL7314C Yes |
| Size | 2.26 in x 2.26 in x 3.86 in Yes |
| Standard | UL498 Yes |
| Sub Brand | Twist-Lock Yes |
| Temperature Rating | Maximum Continuous: 75В° C; Minimum Continuous: -40В° C w/o impact, -25В° with impact. Yes |
| Type | Connector Body Yes |
| UPC | 783585037509 Yes |
| Voltage Rating | 125/250 V Yes |
| Voltage Rating Description | 125/250 V Yes |
SNAP1RA
$2.97 /ea
Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Angled SNAPConnect 2 Connector, Commercial Grade, 2-Pole 3-WireGrounding, 15/20A 125V
| Attributed Data | Included |
|---|---|
| Brand ID | WIRING DEVICE-KELLEMS Yes |
| Catalog Number | SNAP1RA Yes |
| Color | Colorless Yes |
| Conductor Range | Pre-Wired #12 THHN Yes |
| Connection | Screw Terminals Yes |
| Description - Long | Straight Blade Devices, Receptacles, SNAPConnect, Right Angle Pigtailed Connector, Commercial Grade, 2-Pole 3-Wire Grounding, 20A 125V. Yes |
| Description - Short | Straight Blade Devices, Receptacles, SNAPConnect, Right Angle Pigtailed Connector, Commercial Grade, 2-Pole 3-Wire Grounding, 20A 125V Yes |
| EU RoHS Indicator | Yes Yes |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means Yes |
| FEATURES - Bullets | Transparent housing to inspect contacts;Audible SNAP, indicates solid connection;Reduces installation time;Fully insulated design Yes |
| Insulation | Insulated Body Yes |
| Item Type | SNAPConnect Connector Yes |
| Lead Length | 6 inch leads Yes |
| Material | Polycarbonate Yes |
| Material - Mounting Hardware | Cord Mounted Yes |
| Mounting | Cord Mounted Yes |
| NEMA Rating | Non-NEMA Yes |
| Number Of Conductors | 3-Wire Grounding Yes |
| Number Of Poles | 2 Yes |
| OEM Brand Name | Hubbell Wiring Device-Kellems Yes |
| Performance | Electrical: Current Interrupting- Certified for current interrupting at full rated current;Electrical: Dielectric Voltage- Withstands 2,000V minimum;Mechanical: Product Identification Ratings are a permanent part of the device;Environmental: Flammability- UL 94V-2;Environmental: Operating Temperature- Maximum continuous 75°C;minimum -40°C (w/o impact) Yes |
| Product Name | Extra Heavy Duty Right Angle Pigtailed Connector with 6" leads, #12AWG THHN/THWN-1, 15A-20A, Clear Yes |
| Series | Extra Heavy Duty Yes |
| Size | 1.48 in x 0.78 in x 0.79 in Yes |
| Standard | Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 Yes |
| Sub Brand | Straight Blade Yes |
| Temperature Rating | Maximum Continuous: 75В° C; Minimum Continuous: -40В° C w/o impact, -25В° with impact. Yes |
| Type | Pigtailed Connector Yes |
| UPC | 783585251981 Yes |
| Voltage Rating | 125 V Yes |
| Voltage Rating Description | 125 V Yes |
5100C9W-MAD
$5.05 /ea

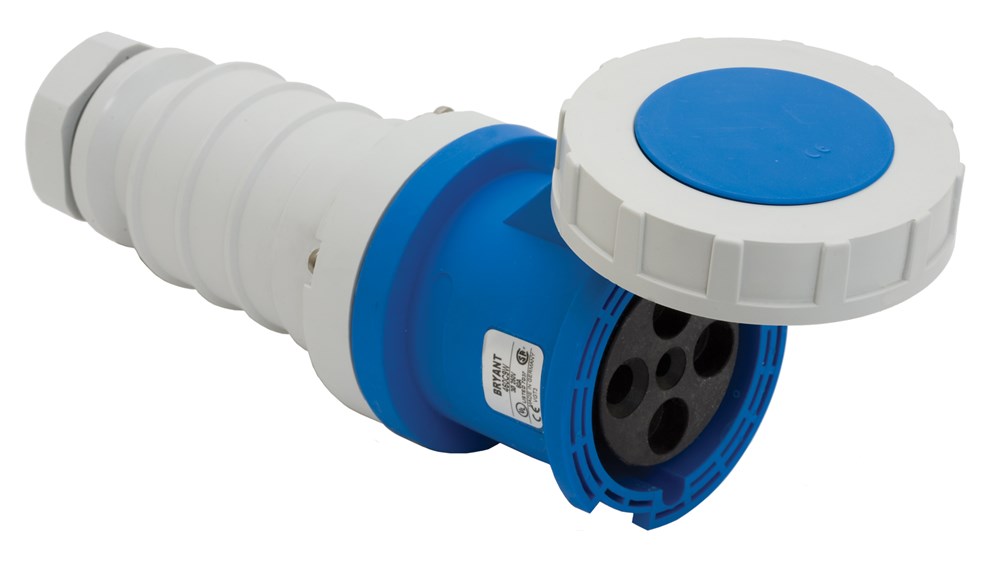

Bryant Wiring Devices, Heavy Duty Products, IEC Pin and Sleeve Devices,Industrial Grade, Female Connector Body, 100A 3-Phase Wye 120/208V AC,4-Pole 5-Wire Grounding,Screw Terminals, Blue, Watertight
| Product Image |
|
|
|
|---|---|---|---|
|
HBL7314C
Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 20A 125/250V, 3-Pole 3-Wire Non Grounding, Non- NEMA, Screw Terminal, Black and White Nylon.
$52.64 / EA
|
SNAP1RA
Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Angled SNAPConnect 2 Connector, Commercial Grade, 2-Pole 3-WireGrounding, 15/20A 125V
$2.97 / EA
|
5100C9W-MAD
Bryant Wiring Devices, Heavy Duty Products, IEC Pin and Sleeve Devices,Industrial Grade, Female Connector Body, 100A 3-Phase Wye 120/208V AC,4-Pole 5-Wire Grounding,Screw Terminals, Blue, Watertight
$5.05 / EA
|
|
