UPC
- 751338206601
-
UNSPSC
- 39131708
-
Country of Origin
- MUL
-
Material
- Die-Cast Aluminum
-
Type

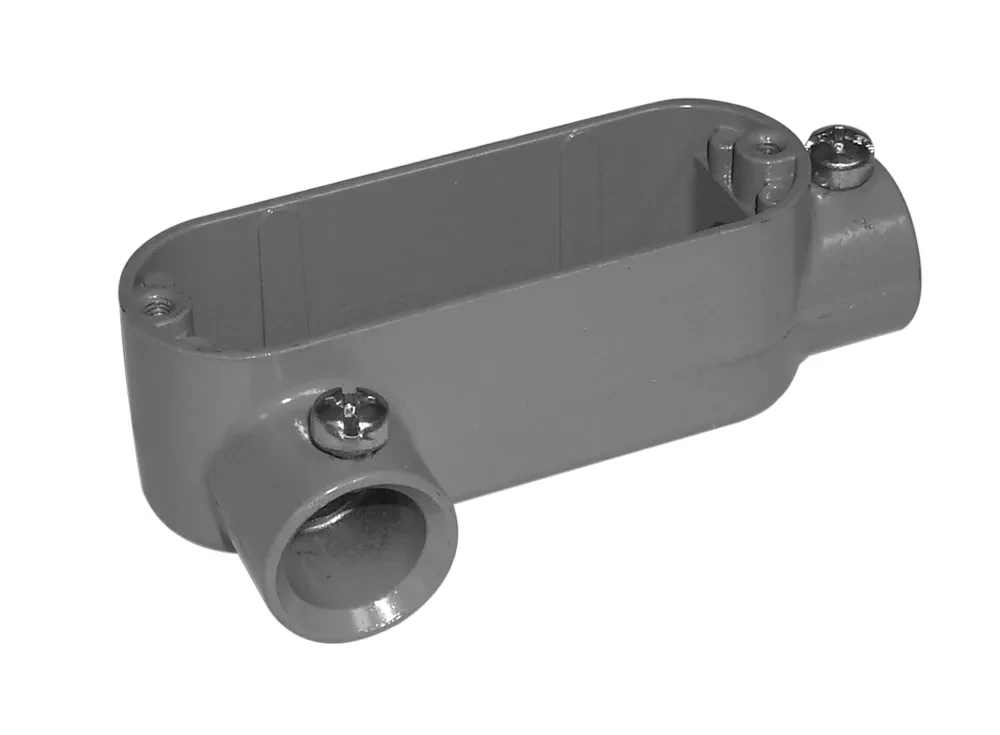

- LR Type Conduit Body
-
Connection
- Female Threaded
-
Connectors (IN)
- Female Threaded IN
-
For Use With
- EMT Conduit
-
Form
- LR
-
Height
- 2.77 in
-
Height (IN)
- 2.770 IN
-
Hub Size
- 1.25 in
-
Label Description
- EMT CONDUIT BODY- LR TYPE
-
Length
- 7.894 IN
-
Material
- Die-Cast Aluminum
-
Mounting
- Wall Mount
-
Nominal Length Inches
- 5.570
-
Number of Conductors
- 3
-
Screw Material
- Steel
-
Size (IN)
- 1-1/4" IN
-
Size (trade) (IN)
- 1-1/4" IN
-
Standard
- UL E170258, CSA Certified, UL 514B, Federal Specification A-A-50563, NEMA/ANSI FB-1, Military Specification Number W-F-406D, W-F-406E, W-F-408D, W-S-610D
-
Type
- LR Type Conduit Body
-
WebShop Width (IN)
- 3.385 IN
-
Width
- 3.385 in
-
Wire Size
- 2 AWG
