$84.62 / EA

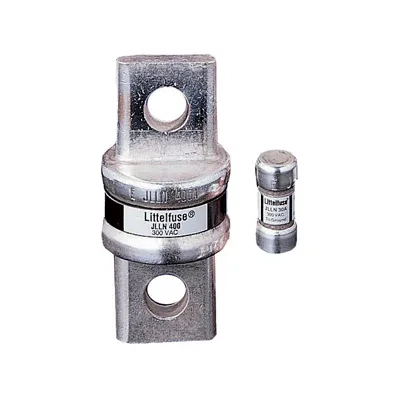

Space saving POWR-GARD Class T fuses are the most compact fuses available in ratings above 30 amperes — less than one-third the size of comparable Class R fuses. When rated in accordance with the NEC, Class T fuses provide fast-acting overload and short circuit protection for non-inductive circuits and equipment. Used in inductive circuits, the ampere rating of Class T fuses must be increased to prevent opening on inrush currents. In such instances, Class T fuses may provide only short circuit p...
Space saving POWR-GARD Class T fuses are the most compact fuses available in ratings above 30 amperes — less than one-third the size of comparable Class R fuses. When rated in accordance with the NEC, Class T fuses provide fast-acting overload and short circuit protection for non-inductive circuits and equipment. Used in inductive circuits, the ampere rating of Class T fuses must be increased to prevent opening on inrush currents. In such instances, Class T fuses may provide only short circuit protection. For motor and general purpose circuits where space is not critical, we recommend POWR-PRO™ JTD_ID Indicator series, LLNRK/LLSRK series, or FLSR_ID Indicator series.
150
- UPC
- 079458180985
- UNSPSC
- 39121627
- Country of Origin
- MX
- Amperage Rating:
- 600 A
- Type:
- Class T
- Voltage Rating:
- 300 VAC
- Amperage Rating:
- 600 A
- Standard:
- UL Listed CSA Certified
- Sub Brand:
- POWR-GARD JLLN Series
- Type:
- Class T
- Voltage Rating:
- 300 VAC
10NHG01B
$78.57 /ea
Fuse-link, LV, 10 A, AC 500 V, NH01, gL/gG, IEC, dual indicator, live gripping lugs
| Attributed Data | Included |
|---|---|
| Class | Class C gL/gG Yes |
| Connection | Blade end Yes |
| Dimensions | 5.3150 IN X 1.1634 IN X 2.2756 IN Yes |
| Interrupt Rating | 120 kAIC Yes |
| Material | Ceramic Yes |
| Standard | UL Listed ,CCC Marked,RoHS Compliant,CE Marked Yes |
| Sub Brand | Bussmann Series Yes |
| Type | Low voltage NH fuse Yes |
125NHG00B
$53.66 /ea
Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 125A, 120 kAIC, Combination fuse status indicator,Blade end connection, Class C gL/gG, Square-body with knife blade contact, Metal plated copper contact plate
| Attributed Data | Included |
|---|---|
| Class | Class C gL/gG Yes |
| Connection | Blade end Yes |
| Dimensions | 3.1102 IN X 1.1811 IN X 2.2835 IN Yes |
| Interrupt Rating | 120 kAIC Yes |
| Material | Ceramic Yes |
| Size | 78.5 mm Length X 30 mm Width Yes |
| Standard | VDE ,CCC Marked ,VDE ,VDE ,CCC Marked ,Marqué CCC ,UL Listed ,UL Listed ,VDE ,UL Listed ,UL geregistreerd ,Répertorié UL ,CCC Marked ,VDE ,UL Listed ,CCC Marked ,CCC gemarkeerd ,VDE,RoHS-konform,RoHS-kompatibel,CE Marked,RoHS Compliant,Conformité RoHS,Conforme a RoHS,CE-Kennzeichnung,CE-markering,Marquage CE,Con marchio CE,CE-merket,RoHS-compliant Yes |
| Sub Brand | Bussmann Series Yes |
| Type | Low voltage NH fuse Yes |
125NHG01B
$77.84 /ea
Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 125A, 120 kAIC, Combination fuse status indicator, fuse, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Ceramic body - 125NHG01B
| Attributed Data | Included |
|---|---|
| Class | Class C gL/gG Yes |
| Connection | Blade end Yes |
| Dimensions | 5.3150 IN X 1.1634 IN X 2.2756 IN Yes |
| Interrupt Rating | 120 kAIC Yes |
| Material | Ceramic Yes |
| Standard | UL Listed ,UL Listed ,CCC Marked ,UL Listed ,Marqué CCC ,UL geregistreerd ,CCC Marked ,UL Listed ,Répertorié UL ,CCC Marked ,CCC gemarkeerd ,CCC Marked,Marquage CE,CE-merket,RoHS Compliant,CE Marked,RoHS-konform,RoHS-kompatibel,CE-Kennzeichnung,Conforme a RoHS,Conformité RoHS,Con marchio CE,RoHS-compliant,CE-markering Yes |
| Sub Brand | Bussmann Series Yes |
| Type | Low voltage NH fuse Yes |
| Product Image |
|
|
|
|||
|---|---|---|---|---|---|---|
|
10NHG01B
Fuse-link, LV, 10 A, AC 500 V, NH01, gL/gG, IEC, dual indicator, live gripping lugs
$78.57 / EA
|
125NHG00B
Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 125A, 120 kAIC, Combination fuse status indicator,Blade end connection, Class C gL/gG, Square-body with knife blade contact, Metal plated copper contact plate
$53.66 / EA
|
125NHG01B
Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 125A, 120 kAIC, Combination fuse status indicator, fuse, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Ceramic body - 125NHG01B
$77.84 / EA
|
||||
| Attributed Data | ||||||
| Amperage Rating | 10 A 10 A | 125 A 125 A | ||||
| Class | Class C gL/gG Class C gL/gG | |||||
| Connection | Blade end Blade end | |||||
| Dimensions | 3.1102 IN X 1.1811 IN X 2.2835 IN 3.1102 IN X 1.1811 IN X 2.2835 IN | 5.3150 IN X 1.1634 IN X 2.2756 IN 5.3150 IN X 1.1634 IN X 2.2756 IN | ||||
| Frequency Rating | 45-62 Hz 45-62 Hz | |||||
| Interrupt Rating | 120 kAIC 120 kAIC | |||||
| Material | Ceramic Ceramic | |||||
| Size | 78.5 mm Length X 30 mm Width 78.5 mm Length X 30 mm Width | |||||
| Standard | UL Listed,CCC Marked,RoHS Compliant,CE Marked UL Listed,CCC Marked,RoHS Compliant,CE Marked | UL Listed ,CCC Marked,RoHS Compliant,CE Marked UL Listed ,CCC Marked,RoHS Compliant,CE Marked | UL Listed,UL Listed,CCC Marked,UL Listed,Marqué CCC,UL geregistreerd,CCC Marked,UL Listed,Répertorié UL,CCC Marked,CCC gemarkeerd,CCC Marked,Marquage CE,CE-merket,RoHS Compliant,CE Marked,RoHS-konform,RoHS-kompatibel,CE-Kennzeichnung,Conforme a RoHS,Conformité RoHS,Con marchio CE,RoHS-compliant,CE-markering UL Listed,UL Listed,CCC Marked,UL Listed,Marqué CCC,UL geregistreerd,CCC Marked,UL Listed,Répertorié UL,CCC Marked,CCC gemarkeerd,CCC Marked,Marquage CE,CE-merket,RoHS Compliant,CE Marked,RoHS-konform,RoHS-kompatibel,CE-Kennzeichnung,Conforme a RoHS,Conformité RoHS,Con marchio CE,RoHS-compliant,CE-markering | UL Listed ,UL Listed ,CCC Marked ,UL Listed ,Marqué CCC ,UL geregistreerd ,CCC Marked ,UL Listed ,Répertorié UL ,CCC Marked ,CCC gemarkeerd ,CCC Marked,Marquage CE,CE-merket,RoHS Compliant,CE Marked,RoHS-konform,RoHS-kompatibel,CE-Kennzeichnung,Conforme a RoHS,Conformité RoHS,Con marchio CE,RoHS-compliant,CE-markering UL Listed ,UL Listed ,CCC Marked ,UL Listed ,Marqué CCC ,UL geregistreerd ,CCC Marked ,UL Listed ,Répertorié UL ,CCC Marked ,CCC gemarkeerd ,CCC Marked,Marquage CE,CE-merket,RoHS Compliant,CE Marked,RoHS-konform,RoHS-kompatibel,CE-Kennzeichnung,Conforme a RoHS,Conformité RoHS,Con marchio CE,RoHS-compliant,CE-markering | VDE,CCC Marked,VDE,VDE,CCC Marked,Marqué CCC,UL Listed,UL Listed,VDE,UL Listed,UL geregistreerd,Répertorié UL,CCC Marked,VDE,UL Listed,CCC Marked,CCC gemarkeerd,VDE,RoHS-konform,RoHS-kompatibel,CE Marked,RoHS Compliant,Conformité RoHS,Conforme a RoHS,CE-Kennzeichnung,CE-markering,Marquage CE,Con marchio CE,CE-merket,RoHS-compliant VDE,CCC Marked,VDE,VDE,CCC Marked,Marqué CCC,UL Listed,UL Listed,VDE,UL Listed,UL geregistreerd,Répertorié UL,CCC Marked,VDE,UL Listed,CCC Marked,CCC gemarkeerd,VDE,RoHS-konform,RoHS-kompatibel,CE Marked,RoHS Compliant,Conformité RoHS,Conforme a RoHS,CE-Kennzeichnung,CE-markering,Marquage CE,Con marchio CE,CE-merket,RoHS-compliant | VDE ,CCC Marked ,VDE ,VDE ,CCC Marked ,Marqué CCC ,UL Listed ,UL Listed ,VDE ,UL Listed ,UL geregistreerd ,Répertorié UL ,CCC Marked ,VDE ,UL Listed ,CCC Marked ,CCC gemarkeerd ,VDE,RoHS-konform,RoHS-kompatibel,CE Marked,RoHS Compliant,Conformité RoHS,Conforme a RoHS,CE-Kennzeichnung,CE-markering,Marquage CE,Con marchio CE,CE-merket,RoHS-compliant VDE ,CCC Marked ,VDE ,VDE ,CCC Marked ,Marqué CCC ,UL Listed ,UL Listed ,VDE ,UL Listed ,UL geregistreerd ,Répertorié UL ,CCC Marked ,VDE ,UL Listed ,CCC Marked ,CCC gemarkeerd ,VDE,RoHS-konform,RoHS-kompatibel,CE Marked,RoHS Compliant,Conformité RoHS,Conforme a RoHS,CE-Kennzeichnung,CE-markering,Marquage CE,Con marchio CE,CE-merket,RoHS-compliant |
| Sub Brand | Bussmann Series Bussmann Series | |||||
| Type | Low voltage NH fuse Low voltage NH fuse | |||||
| Voltage Rating | 500 V 500 V | |||||
