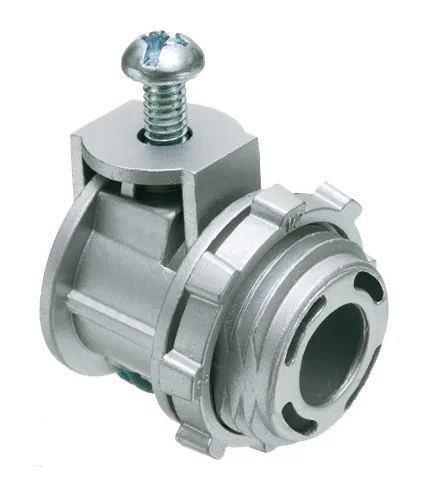

SG38
Zinc die-cast, 1/2" knockout saddle-type connector with spring set screw for securing aluminum and steel cable. Secures into knockout with a...
$1.03 / EA
Available to order
Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
Videos & documents
Documents
154MI
SKU: 154Mi-TOPAZ
MPN: 154MI
Key specs
View all- Material
- Malleable Iron
- Size
- 1-1/4 IN
- Type
- Straight Squeeze BX-Flex Connector
Description
Product overview

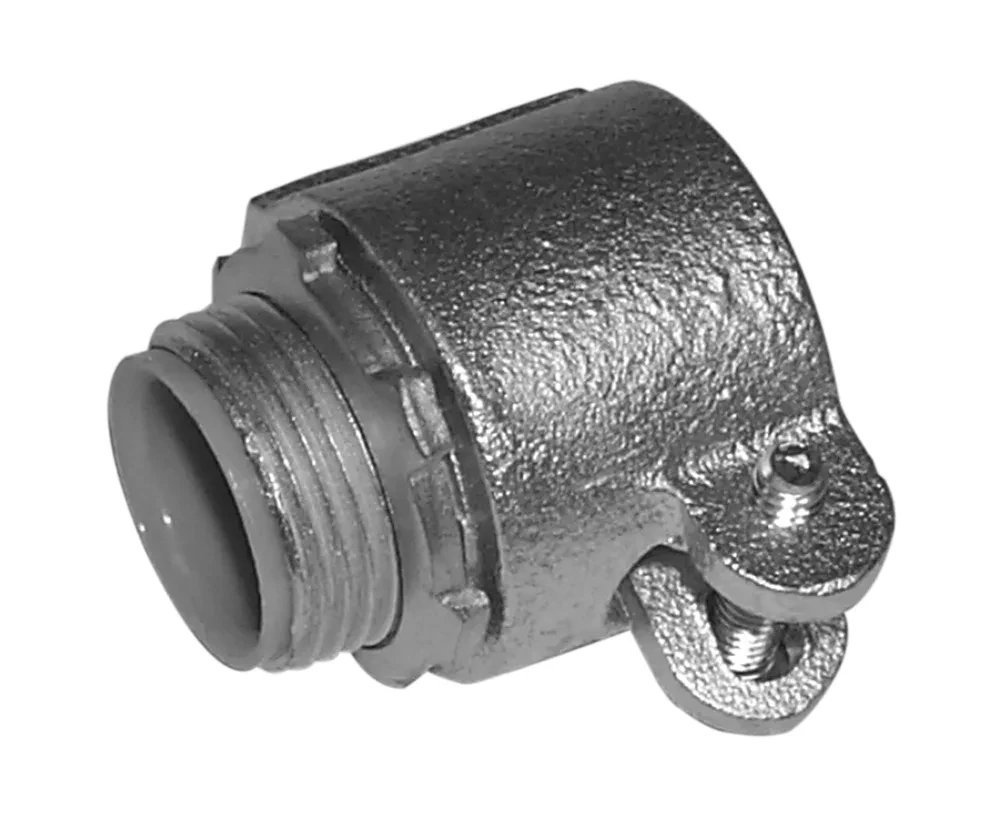

1-1/4" Insulated Throat Squeeze Type Straight BX-Flex Connector
1-1/4" Insulated Throat Squeeze Type Straight BX-Flex Connector
Manufacturer highlights
Topaz's BX-FLEX Straight, Squeeze Type Connectors are fabricated from high grade malleable iron with a zinc finish to ensure longevity and safety. Ins...
Topaz's BX-FLEX Straight, Squeeze Type Connectors are fabricated from high grade malleable iron with a zinc finish to ensure longevity and safety. Insulated throat models offer superior protection against damaging abrasion. Securely connects flexible metal conduit or armored cable to outlet box, load center or other metal enclosures; for indoor use in dry locations. Squeeze type assembly available for conduit sizes between 1/2' to 4'; UL listed and ready for fast delivery.
- Squeeze type straight with insulated throat
Additional manufacturer notes
- Short name
- TPZ
- Feed description
- TPZ 154MI 1-1/4"ST.SQ.CONN.MAL.INS.
- Invoice description
- 1-1/4"ST.SQ.CONN.MAL.INS.10/100PK
Specifications
- UPC
- 751338111318
- UNSPSC
- 39121419
- Country of Origin
- MUL
- Material
- Malleable Iron
- Size
- 1-1/4 IN
- Type
- Straight Squeeze BX-Flex Connector
- Cable Diameter
- 1.44 to 1.63 IN
- Connection
- Threaded x Squeeze
- Connectors (IN)
- Threaded x Squeeze IN
- Insulation
- Insulated Throat
- Label Description
- BX-FLEX CONNECTORS STRAIGHT- INSULATED THROAT
- Length
- 1.25 IN
- Material
- Malleable Iron
- Size
- 1-1/4 IN
- Size (IN)
- 1-1/4" IN
- Standard
- UL 514B, UL File Number E170258, US Federal Specification Number A-A-50552, NEMA/ANSI FB-1, CSA Certified, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D
- Thread Length
- 0.63 IN
- Type
- Straight Squeeze BX-Flex Connector
- Manufacturer keywords
- 1-1/4"ST.SQ.CONN.MAL.INS.10/10
Videos & documents
Documents
Similar items
Compare alternates in this category before ordering.
Similar item
840ST
Zinc die-cast, 1/2" knockout 2-screw cable connector for steel and aluminum jacketed cables. Snaps into knockout with spring steel clip. Con...
$1.00 / EA
98 available
Similar item
100C1050
1" Steel Flexible Cord Connectors Cable Range .95"-1.05"
$12.49 / EA
4 available
Similar item
8401
Zinc die-cast, 1/2" knockout cable connector with round end stop. End stop diameter: .375. Secures into knockout with a locknut.
$0.97 / EA
11 available
Similar item

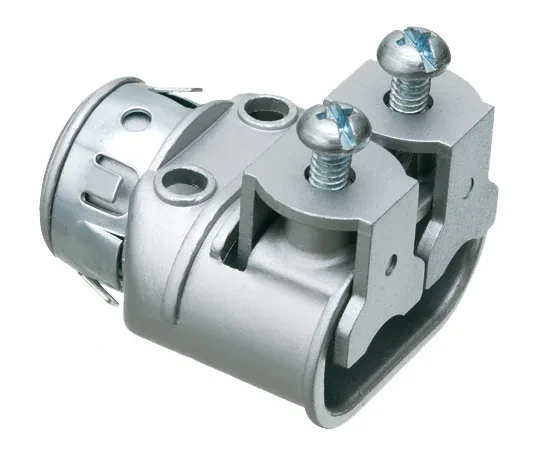

SG3838AST
