16591-3
SKU: 16591-3-EDF
MPN: 16591-3
Key specs
View all- Amperage Rating
- 400 A
- Color
- Black
- Material
- Aluminum/Tin/Thermoplastic
- Size
- 8.48 In Length X 5.50 In Width X 2.93 In Height
- Type
- Power terminal block
- Voltage Rating
- 600 VAC//VDC
Description
Product overview

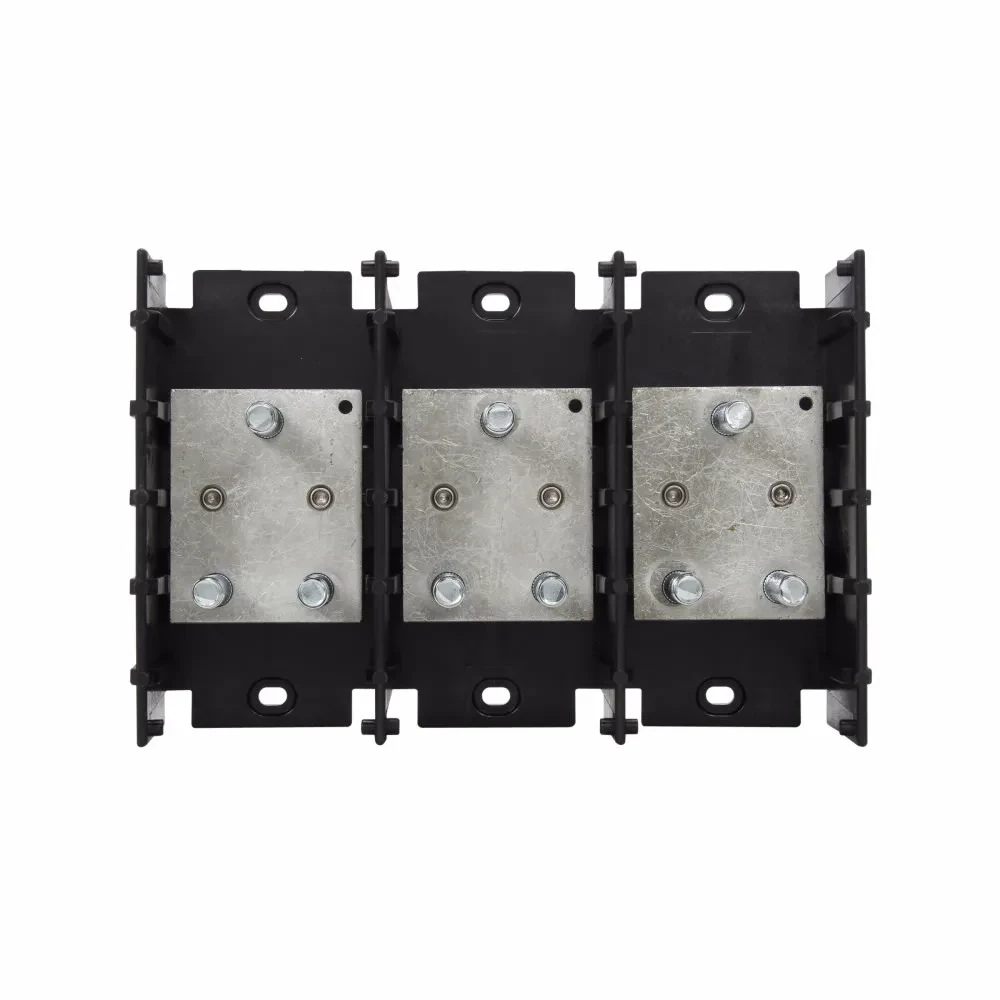

Eaton Bussmann series power terminal block, 600 Vac, 600 Vdc, 400A, Three-pole, 3/8 In-16 TPI X 1-7/16 In Stud (Line), (2) 3/8 In-16 TPI X 1-7/16 In Stud (Load), SCCR: 10 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
Eaton Bussmann series power terminal block, 600 Vac, 600 Vdc, 400A, Three-pole, 3/8 In-16 TPI X 1-7/16 In Stud (Line), (2) 3/8 In-16 TPI X 1-7/16 In Stud (Load), SCCR: 10 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
Manufacturer highlights
Bussmann provides the broadest offering of UL listed Cable Limiters, Welder Limiters, Circuit Limiters and accessories. With products rated for AC or...
Bussmann provides the broadest offering of UL listed Cable Limiters, Welder Limiters, Circuit Limiters and accessories. With products rated for AC or DC applications to suit your specific application requirements.
Additional manufacturer notes
- Short name
- BUSS
- Feed description
- BUSS 16591-3 POWER DISTRIBUTION BLO
- Invoice description
- POWER DISTRIBUTION BLOCK
Specifications
- UPC
- 051712208574
- UNSPSC
- 39121629
- Country of Origin
- MX
- Amperage Rating
- 400 A
- Color
- Black
- Material
- Aluminum/Tin/Thermoplastic
- Size
- 8.48 In Length X 5.50 In Width X 2.93 In Height
- Type
- Power terminal block
- Voltage Rating
- 600 VAC//VDC
- Amperage Rating
- 400 A
- Color
- Black
- Connection
- 3/8 In-16 TPI X 1-7/16 In Stud (Line), (2) 3/8 In-16 TPI X 1-7/16 In Stud (Load)
- Dimensions
- 9.5000 IN X 3.5000 IN X 6.0000 IN
- Material
- Aluminum/Tin/Thermoplastic
- Size
- 8.48 In Length X 5.50 In Width X 2.93 In Height
- Standard
- Contact Manufacturer,RoHS Compliant,Contact factory
- Sub Brand
- Bussmann Series
- Type
- Power terminal block
- Voltage Rating
- 600 VAC//VDC
