$3.87 / EA
volume discounts
- $3.61 for 10+
manufacturer discounts
learn about discounts
- $3.48 for $300.00+
- $3.31 for $500.00+
- $3.18 for $1,000.00+

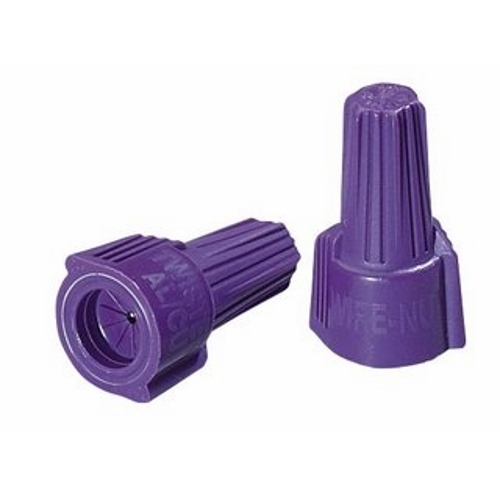

IDEAL, Wire Connector, Twister® Al/Cu, Conductor Range: 1/12 AWG Aluminium Solid With 1/18 AWG Copper Min And 1/10 AWG, Number Of Conductors: 2 to 3 Aluminum to Copper, 1 to 6 Copper to Copper, Material: Flame-retardant Polypropelene, Color: Purple, Voltage Rating: 600 V, Environmental Conditions: Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 DEG F), Wire Type: Al/Cu, Model Number: 65
IDEAL, Wire Connector, Twister® Al/Cu, Conductor Range: 1/12 AWG Aluminium Solid With 1/18 AWG Copper Min And 1/10 AWG, Number Of Conductors: 2 to 3 Aluminum to Copper, 1 to 6 Copper to Copper, Material: Flame-retardant Polypropelene, Color: Purple, Voltage Rating: 600 V, Environmental Conditions: Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 DEG F), Wire Type: Al/Cu, Model Number: 65
The only twist-on for aluminum-to-copper connections.The Twister® AL/CU Wire Connector is the only U...150
The only twist-on for aluminum-to-copper connections.The Twister® AL/CU Wire Connector is the only UL Listed aluminum-to-copper twist-on connector that prevents aluminum oxidation while providing a secure connection. Filled with an anti-oxidant compound, the Twister® AL/CU easily twists on with swept-wings making a comfortable connection with improved conductivity and cooler connections.The live-action spring expands and contracts with aluminum wire to ensure a secure connection while the hexagonal head makes for quick and easy installation by hand or with a standard nut driver.The Twister® AL/CU is the only twist-on wire connector to be UL Listed and CSA Certified for aluminum-to-copper connections, as well as the only twist-on solution to comply with the National Electric Code Section #110-14(b).Twister® AL/CU Wire Connectors are designed as a one-use only connection.For use only on copper-to-copper or aluminum-to-copper connections. Do not use on aluminum-to-aluminum connections.
- The only twist-on for aluminum-to-copper connections.
- The Twister® AL/CU Wire Connector is the only UL Listed aluminum-to-copper twist-on connector that prevents aluminum oxidation while providing a secure connection.
- Filled with an anti-oxidant compound, the Twister® AL/CU easily twists on with swept-wings making a comfortable connection with improved conductivity and cooler connections.
- The live-action spring expands and contracts with aluminum wire to ensure a secure connection while the hexagonal head makes for quick and easy installation by hand or with a standard nut driver.
- The Twister® AL/CU is the only twist-on wire connector to be UL Listed and CSA Certified for aluminum-to-copper connections, as well as the only twist-on solution to comply with the National Electric Code Section #110-14(b).
- For use only on copper-to-copper or aluminum-to-copper connections. Do not use on aluminum-to-aluminum connections.
- The only twist-on for aluminum-to-copper connections.
- The Twister® AL/CU Wire Connector is the only UL Listed aluminum-to-copper twist-on connector that prevents aluminum oxidation while providing a secure connection.
- Filled with an anti-oxidant compound, the Twister® AL/CU easily twists on with swept-wings making a comfortable connection with improved conductivity and cooler connections.
- The live-action spring expands and contracts with aluminum wire to ensure a secure connection while the hexagonal head makes for quick and easy installation by hand or with a standard nut driver.
- The Twister® AL/CU is the only twist-on wire connector to be UL Listed and CSA Certified for aluminum-to-copper connections, as well as the only twist-on solution to comply with the National Electric Code Section #110-14(b).
- For use only on copper-to-copper or aluminum-to-copper connections. Do not use on aluminum-to-aluminum connections.
- UPC
- 783250302659
- UNSPSC
- 39121445
- Country of Origin
- USA
- Color:
- Purple
- Material:
- Flame-Retardant Polypropylene
- Voltage Rating:
- 600 V
- Color:
- Purple
- Conductor Range:
- 1/12 AWG Aluminium Solid With 1/18 AWG Copper Min And 1/10 AWG
- Environmental Conditions:
- Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 DEG F)
- Material:
- Flame-Retardant Polypropylene
- Number Of Conductors:
- 2 to 3 Aluminum to Copper; 1 to 6 Copper to Copper
- Standard:
- CSA C22.2 #188, UL 486C Listed, UL 467 for grounding and bonding,RoHS
- Sub Brand:
- Twister® Al/Cu
- Voltage Rating:
- 600 V
- Wire Type:
- Al/Cu
WT41-500JR
$0.09 /ea
Buchanan, Wire Connector, WingTwist, Conductor Range: 22 - 10 AWG, 2/20 AWG Min, 3/10 Solid AWG MAX, Number Of Conductors: 1 to 6, Material: Flame-retardant Polypropelene, Color: Tan, Voltage Rating: 600 V, Environmental Conditions: Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F), Model Number: WT41
| Attributed Data | Included |
|---|---|
| Color | Tan Yes |
| Conductor Range | 22 - 10 AWG, 2/20 AWG Min, 3/10 Solid AWG MAX Yes |
| Environmental Conditions | Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F) Yes |
| Material | Flame-Retardant Polypropylene Yes |
| Number Of Conductors | 1 to 6 Yes |
| Standard | CSA C22.2 #188, UL 486C Listed, RoHS Yes |
| Sub Brand | WingTwist Yes |
30-059
$22.28 /ea
IDEAL, Wire Connector, Wire-Nut, High Temperature Twist-On, Number Of Conductors: 1 to 6, Conductor Range: 22 - 12 AWG, Min 2 - 20, MAX 3-14, Color: Black, Material: THERMOPLASTIC POLYESTER, Voltage Rating: 600 V, Environmental Conditions: Tough, UL 94V-0 Flame-Retardant Shell Rated At 150 DEG C (302 F), Model Number: 59B, Width: 31/64 IN, Height: 1-1/16 IN
| Attributed Data | Included |
|---|---|
| Color | Black Yes |
| Conductor Range | 22 - 12 AWG, Min 2 - 20, MAX 3-14 Yes |
| Environmental Conditions | Tough, UL 94V-0 Flame-Retardant Shell Rated At 150 DEG C (302 F) Yes |
| Material | Thermoplastic Polyester Yes |
| Number Of Conductors | 1 to 6 Yes |
| Standard | CSA Certified to C22.2 #188, UL Listed to 486C Yes |
| Sub Brand | Wire-Nut Yes |
| Type | High Temperature Twist-On Yes |
30-065
$45.87 /ea
IDEAL, Wire Connector, Twister® Al/Cu, Number Of Conductors: 2 to 3 Aluminum to Copper, 1 to 6 Copper to Copper, Conductor Range: 1/12 AWG Aluminium Solid With 1/18 AWG Copper AWG Min And 1/10 AWG, Material: Flame-retardant Polypropelene, Color: Purple, Voltage Rating: 600 V, Environmental Conditions: Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F), Wire Type: Al/Cu, Model Number: 65
| Attributed Data | Included |
|---|---|
| Color | Purple Yes |
| Conductor Range | 1/12 AWG Aluminium Solid With 1/18 AWG Copper AWG Min And 1/10 AWG Yes |
| Environmental Conditions | Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F) Yes |
| Material | Flame-Retardant Polypropylene Yes |
| Number Of Conductors | 2 to 3 Aluminum to Copper; 1 to 6 Copper to Copper Yes |
| Standard | CSA C22.2 #188, UL 486C Listed, UL 467 for grounding and bonding,RoHS Yes |
| Sub Brand | Twister® Al/Cu Yes |
| Wire Type | Al/Cu Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
WT41-500JR
Buchanan, Wire Connector, WingTwist, Conductor Range: 22 - 10 AWG, 2/20 AWG Min, 3/10 Solid AWG MAX, Number Of Conductors: 1 to 6, Material: Flame-retardant Polypropelene, Color: Tan, Voltage Rating: 600 V, Environmental Conditions: Tough, UL 94V-2 F...
$0.09 / EA
|
30-059
IDEAL, Wire Connector, Wire-Nut, High Temperature Twist-On, Number Of Conductors: 1 to 6, Conductor Range: 22 - 12 AWG, Min 2 - 20, MAX 3-14, Color: Black, Material: THERMOPLASTIC POLYESTER, Voltage Rating: 600 V, Environmental Conditions: Tough, UL...
$22.28 / C
|
30-065
IDEAL, Wire Connector, Twister® Al/Cu, Number Of Conductors: 2 to 3 Aluminum to Copper, 1 to 6 Copper to Copper, Conductor Range: 1/12 AWG Aluminium Solid With 1/18 AWG Copper AWG Min And 1/10 AWG, Material: Flame-retardant Polypropelene, Color: Purp...
$45.87 / EA
|
|
| Attributed Data | |||
| Color | Black Black | Purple Purple | Tan Tan |
| Conductor Range | 1/12 AWG Aluminium Solid With 1/18 AWG Copper AWG Min And 1/10 AWG 1/12 AWG Aluminium Solid With 1/18 AWG Copper AWG Min And 1/10 AWG | 22 - 10 AWG, 2/20 AWG Min, 3/10 Solid AWG MAX 22 - 10 AWG, 2/20 AWG Min, 3/10 Solid AWG MAX | 22 - 12 AWG, Min 2 - 20, MAX 3-14 22 - 12 AWG, Min 2 - 20, MAX 3-14 |
| Environmental Conditions | Tough, UL 94V-0 Flame-Retardant Shell Rated At 150 DEG C (302 F) Tough, UL 94V-0 Flame-Retardant Shell Rated At 150 DEG C (302 F) | Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F) Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F) | |
| Material | Flame-Retardant Polypropylene Flame-Retardant Polypropylene | Thermoplastic Polyester Thermoplastic Polyester | |
| Number Of Conductors | 1 to 6 1 to 6 | 2 to 3 Aluminum to Copper; 1 to 6 Copper to Copper 2 to 3 Aluminum to Copper; 1 to 6 Copper to Copper | |
| Standard | CSA C22.2 #188, UL 486C Listed, RoHS CSA C22.2 #188, UL 486C Listed, RoHS | CSA C22.2 #188, UL 486C Listed, UL 467 for grounding and bonding,RoHS CSA C22.2 #188, UL 486C Listed, UL 467 for grounding and bonding,RoHS | CSA Certified to C22.2 #188, UL Listed to 486C CSA Certified to C22.2 #188, UL Listed to 486C |
| Sub Brand | Twister® Al/Cu Twister® Al/Cu | WingTwist WingTwist | Wire-Nut Wire-Nut |
| Type | High Temperature Twist-On High Temperature Twist-On | ||
| Voltage Rating | 600 V 600 V | ||
| Wire Type | Al/Cu Al/Cu | ||
| Add a product to the cart | Show more details | Show more details | Show more details |
