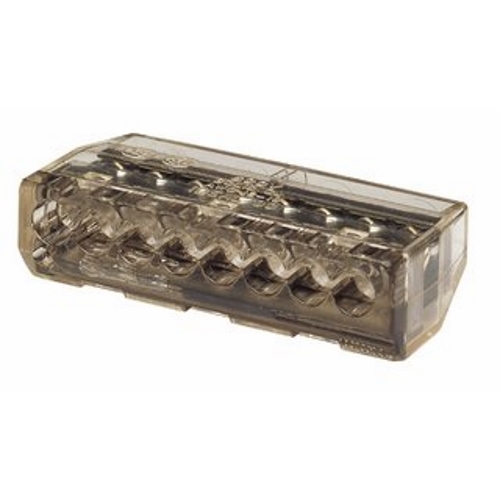

IDEAL, Wire Connector, In-Sure, Push-In, Size: 0.355 IN Length X 1.380 IN Width X 0.717 IN Height, Wire Size: #12 AWG - #20 AWG Solid, #14 AWG - #16 AWG (19 Strand Or Less) #18 AWG (7 Strand Or Less) Stranded, #12 AWG - #14 AWG (19 Strand Or Less) #16 AWG (26 Strand Or Less) 318 AWG (16 Strand Or Less) Stranded (Tin Bonded), Connection: 8 Ports, Color: Black, Voltage Rating: 600 V Maximum Building Wire, 1000 V Maximum Signs And Lighting Fixtures, Temperature Rating: 105 DEG C Shell Rated, Wire Type: Solid, Stranded, Stranded (Tin Bonded), Model: 90
IDEAL, Wire Connector, In-Sure, Push-In, Size: 0.355 IN Length X 1.380 IN Width X 0.717 IN Height, Wire Size: #12 AWG - #20 AWG Solid, #14 AWG - #16 AWG (19 Strand Or Less) #18 AWG (7 Strand Or Less) Stranded, #12 AWG - #14 AWG (19 Strand Or Less) #16 AWG (26 Strand Or Less) 318 AWG (16 Strand Or Less) Stranded (Tin Bonded), Connection: 8 Ports, Color: Black, Voltage Rating: 600 V Maximum Building Wire, 1000 V Maximum Signs And Lighting Fixtures, Temperature Rating: 105 DEG C Shell Rated, Wire Type: Solid, Stranded, Stranded (Tin Bonded), Model: 90

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

30-690

Manufacturer
Ideal Industries

$419.72 / EA

manufacturer discounts
learn about discounts

  • $391.73 for $300.00+
  • $373.08 for $500.00+
  • $357.54 for $1,000.00+

In stock (0)
Lead time: over 7 days
may be longer on small orders

IDEAL, Wire Connector, In-Sure, Push-In, Size: 0.355 IN Length X 1.380 IN Width X 0.717 IN Height, Wire Size: #12 AWG - #20 AWG Solid, #14 AWG - #16 AWG (19 Strand Or Less) #18 AWG (7 Strand Or Less) Stranded, #12 AWG - #14 AWG (19 Strand Or Less) #16 AWG (26 Strand Or Less) 318 AWG (16 Strand Or Less) Stranded (Tin Bonded), Connection: 8 Ports, Color: Black, Voltage Rating: 600 V Maximum Building Wire, 1000 V Maximum Signs And Lighting Fixtures, Temperature Rating: 105 DEG C Shell Rated, Wire T...

IDEAL, Wire Connector, In-Sure, Push-In, Size: 0.355 IN Length X 1.380 IN Width X 0.717 IN Height, Wire Size: #12 AWG - #20 AWG Solid, #14 AWG - #16 AWG (19 Strand Or Less) #18 AWG (7 Strand Or Less) Stranded, #12 AWG - #14 AWG (19 Strand Or Less) #16 AWG (26 Strand Or Less) 318 AWG (16 Strand Or Less) Stranded (Tin Bonded), Connection: 8 Ports, Color: Black, Voltage Rating: 600 V Maximum Building Wire, 1000 V Maximum Signs And Lighting Fixtures, Temperature Rating: 105 DEG C Shell Rated, Wire Type: Solid, Stranded, Stranded (Tin Bonded), Model: 90

The In-Sure® Push-In Wire Connector is perfect for residential, light commercial, lighting retrofit,...150

The In-Sure® Push-In Wire Connector is perfect for residential, light commercial, lighting retrofit, and pre-fab wiring systems, or any other branch circuit wiring application where a traditional twist-on wire connector would be used. Simply push the wire in – the low insertion force makes it easy.The color-coded shell allows for quick identification of port configuration while the clear polycarbonate housing allows for visual verification of every connection. The ergonomic design is easier to grip which means more comfortable push-in connections. The compact size makes for easy installations in even the tightest spots or shallow boxes, and the tough, flame-retardant shell stands up to the harshest environments.UL Listed, CSA Certified, and rated to 600V – the In-Sure® saves time and improves productivity while perfecting connections.

  • The In-Sure® Push-In Wire Connector is perfect for residential, light commercial, lighting retrofit, and pre-fab wiring systems, or any other branch circuit wiring application where a traditional twist-on wire connector would be used.
  • Simply push the wire in – the low insertion force makes it easy.
  • The color-coded shell allows for quick identification of port configuration while the clear polycarbonate housing allows for visual verification of every connection.
  • The ergonomic design is easier to grip which means more comfortable push-in connections.
  • The compact size makes for easy installations in even the tightest spots or shallow boxes, and the tough, flame-retardant shell stands up to the harshest environments.
  • UL Listed, CSA Certified, and rated to 600V – the In-Sure® saves time and improves productivity while perfecting connections.
  • The In-Sure® Push-In Wire Connector is perfect for residential, light commercial, lighting retrofit, and pre-fab wiring systems, or any other branch circuit wiring application where a traditional twist-on wire connector would be used.
  • Simply push the wire in – the low insertion force makes it easy.
  • The color-coded shell allows for quick identification of port configuration while the clear polycarbonate housing allows for visual verification of every connection.
  • The ergonomic design is easier to grip which means more comfortable push-in connections.
  • The compact size makes for easy installations in even the tightest spots or shallow boxes, and the tough, flame-retardant shell stands up to the harshest environments.
  • UL Listed, CSA Certified, and rated to 600V – the In-Sure® saves time and improves productivity while perfecting connections.
UPC
783250285167
UNSPSC
39121409
Country of Origin
JPN
Color:
Black
Size:
0.355 IN Length X 1.380 IN Width X 0.717 IN Height
Type:
Push-In
Voltage Rating:
600/1000 V
Color:
Black
Connection:
8 Ports
Size:
0.355 IN Length X 1.380 IN Width X 0.717 IN Height
Standard:
CSA C22.2 #188, 486C/467 UL Listed, RoHS
Sub Brand:
In-Sure
Temperature Rating:
105 DEG C Shell Rated
Type:
Push-In
Voltage Rating:
600/1000 V
Wire Size:
#12 AWG - #20 AWG Solid, #14 AWG - #16 AWG (19 Strand Or Less) #18 AWG (7 Strand Or Less) Stranded, #12 AWG - #14 AWG (19 Strand Or Less) #16 AWG (26 Strand Or Less) 318 AWG (16 Strand Or Less) Stranded (Tin Bonded)
Wire Type:
Solid, Stranded, Stranded (Tin Bonded)
