$110.52 / EA
manufacturer discounts
learn about discounts
- $99.09 for $1,500.00+
- $95.28 for $2,500.00+
- $91.46 for $3,500.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders

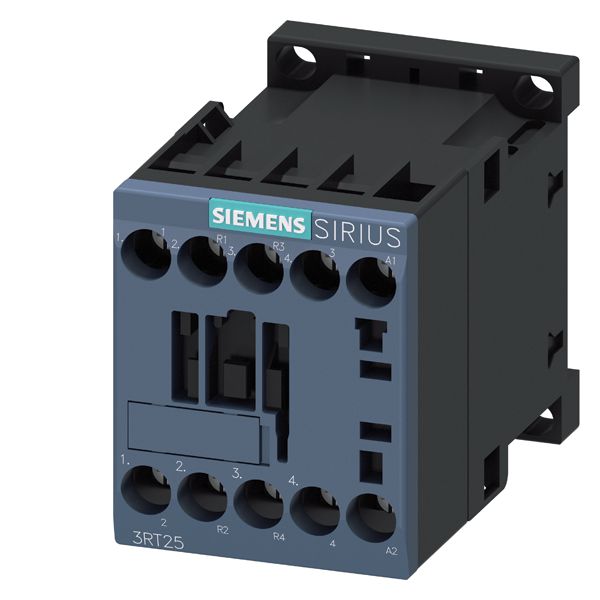

Cont., AC-3, 5.5KW/400V, AC-1 22a, AC 24v 50/60HZ, 4-pole, 2s+2oe, size s00, screw terminals
Cont., AC-3, 5.5KW/400V, AC-1 22a, AC 24v 50/60HZ, 4-pole, 2s+2oe, size s00, screw terminals
150
- UPC
- 662643916614
- UNSPSC
- 39121529
- Country of Origin
- DE
- Operating current / at 1 current path / at DC-1 / at 110 V / rated value:
- 2.1 A
- Operating current / at 1 current path / at DC-1 / at 220 V / rated value:
- 0.8 A
- Operating current / at 1 current path / at DC-1 / at 24 V / rated value:
- 20 A
- Operating current / at 1 current path / at DC-1 / at 440 V / rated value:
- 0.6 A
- Operating power / at AC-1 / at 230 V / rated value:
- 7.5 kW
- Operating power / at AC-1 / at 400 V / rated value:
- 13.00 k kW
- Operating power / at AC-2 / at AC-3 / at 230 V / per NC contact / rated value:
- 2.2 kW
- Operating power / at AC-2 / at AC-3 / at 230 V / per NO contact / rated value:
- 3 kW
- Operating power / at AC-2 / at AC-3 / at 400 V / per NC contact / rated value:
- 4 kW
- Operating power / at AC-2 / at AC-3 / at 400 V / per NO contact / rated value:
- 5.5 kW
45377
$14.22 /ea
CONTACT,BLACK (ES750) (50453777)
86645
$158.01 /ea
CONTACTOR (91866456)
3RT1466-6AB36
$1,840.20 /ea
DRIVE CONVENTIONAL RAIL CONNECTIONS 3-POLE, SIZE S10 AUXILIARY CONTACTS 2NO+2NCAC/DC OPERATION 23-26V UC CONTACTOR, 400A/AC-1
| Attributed Data | Included |
|---|---|
| Design of the surge suppressor | withvaristor Yes |
| Mounting type | screwfixing Yes |
| Mounting type / Side-by-side mounting | Yes Yes |
| Product function / Bus communication | No Yes |
| Protection class IP / on the front | IP00 Yes |
| Size of contactor | S10 Yes |
| Type of electrical connection / for auxiliary and control current circuit | screw-typeterminals Yes |
| Type of voltage | AC/DC Yes |
| mounting position | withverticalmountingsurface+/-90°rotatable,withverticalmountingsurface+/-22.5°tiltabletothefrontandback Yes |
| product brand name | SIRIUS Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
45377
CONTACT,BLACK (ES750) (50453777)
$14.22 / EA
|
86645
CONTACTOR (91866456)
$158.01 / EA
|
3RT1466-6AB36
DRIVE CONVENTIONAL RAIL CONNECTIONS 3-POLE, SIZE S10 AUXILIARY CONTACTS 2NO+2NCAC/DC OPERATION 23-26V UC CONTACTOR, 400A/AC-1
$1,840.20 / EA
|
|
| Attributed Data | |||
| Design of the surge suppressor | withvaristor withvaristor | ||
| Mounting type | screwfixing screwfixing | ||
| Mounting type / Side-by-side mounting | Yes Yes | ||
| Product function / Bus communication | No No | ||
| Protection class IP / on the front | IP00 IP00 | ||
| Size of contactor | S10 S10 | ||
| Type of electrical connection / for auxiliary and control current circuit | screw-typeterminals screw-typeterminals | ||
| Type of voltage | AC/DC AC/DC | ||
| mounting position | withverticalmountingsurface+/-90°rotatable,withverticalmountingsurface+/-22.5°tiltabletothefrontandback withverticalmountingsurface+/-90°rotatable,withverticalmountingsurface+/-22.5°tiltabletothefrontandback | ||
| product brand name | SIRIUS SIRIUS | ||
