4AM6142-5AT10-0FA0
SKU: 4AM6142-5AT10-0FA0
MPN: 4AM6142-5AT10-0FA0
Key specs
View all- Efficiency
- 0.96
- Electrical input frequency / maximum
- 60 Hz
- Electrical input frequency / minimum
- 50 Hz
- Electrical output frequency / maximum
- 60 Hz
- Electrical output frequency / minimum
- 50 Hz
- Height
- 0.164 m
Description
Product overview
>ISOLATION TRANSFORMER CIRCUIT TRANSFORMER 61558-2-1, -2-2, -2-4 CONTROL INSTALLATION SCREW EN CONNECTION TERMINALS SCREW/TAB TA/ISOKL 40 /B IP00 TYPE OF VECTOR GR./SHIELD WNG. II0 /0 ISEC(A) 6,96 F(HZ) 50...60 UPRI(V) 400+/-5% USEC(V) 230PN/PN(S6)(KVA) 1,6 /7,3 TRANSFORMER SITAS PHASES 1
>ISOLATION TRANSFORMER CIRCUIT TRANSFORMER 61558-2-1, -2-2, -2-4 CONTROL INSTALLATION SCREW EN CONNECTION TERMINALS SCREW/TAB TA/ISOKL 40 /B IP00 TYPE OF VECTOR GR./SHIELD WNG. II0 /0 ISEC(A) 6,96 F(HZ) 50...60 UPRI(V) 400+/-5% USEC(V) 230PN/PN(S6)(KVA) 1,6 /7,3 TRANSFORMER SITAS PHASES 1
Manufacturer highlights
Additional manufacturer notes
- Short name
- S-A
- Feed description
- S-A 4AM6142-5AT10-0FA0 XFMR,1-PH,1.
- Invoice description
- XFMR,1-PH,1.6KVA,PRI 400V,SEC 230V
Specifications
- UPC
- 754554903842
- UNSPSC
- 39121029
- Country of Origin
- CZ
- Efficiency
- 0.96
- Electrical input frequency / maximum
- 60 Hz
- Electrical input frequency / minimum
- 50 Hz
- Electrical output frequency / maximum
- 60 Hz
- Electrical output frequency / minimum
- 50 Hz
- Height
- 0.164 m
- Mounting type
- screws
- Product function / Insulation monitoring
- No
- Product function / Short-circuit and overload proof
- No
- Product function / Temperature monitoring
- No
- Type of electrical connection / at input / for main current circuit
- screw-typeterminals/tabterminals
- Type of electrical connection / at output / for main current circuit
- screw-typeterminals/tabterminals
- Width
- 0.176 m
Similar items
Compare alternates in this category before ordering.
No image currently available
Similar item
6SY70000AB72
TRANSFORMER F. VENTILATOR 3-PH 660-690V - 230V AC
$2,110.52 / EA
Available to order
Similar item

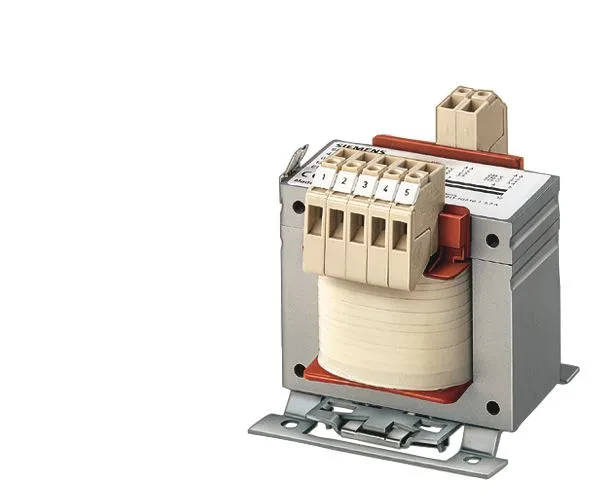

4AM43424TJ100FA0
TRANSFORMER SITAS PHASES 1 PN/PN(S6)(KVA) 0,315 /1,12 UPRI(V) 230+/-5% USEC(V) 110 ISEC(A) 2,86 F(HZ) 50...60 VECTOR GR./SHIELD WNG. II0 /0...
$1,310.84 / EA
Available to order
Similar item

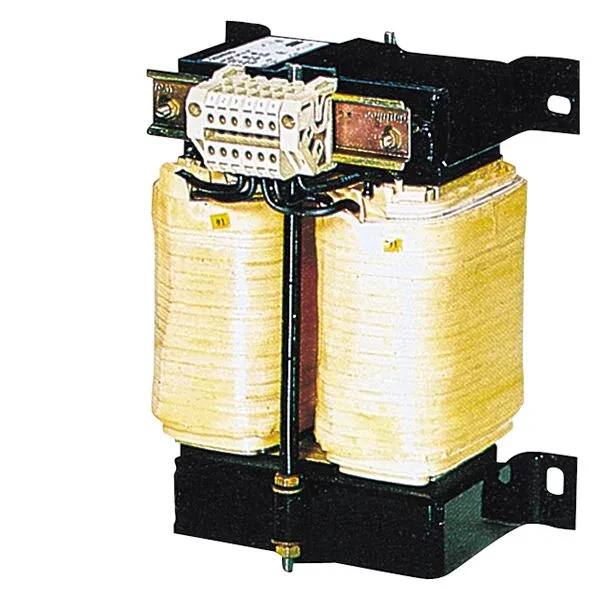

4AT36328DD400FD0
