5815-B18
SKU: 5815-B18
MPN: 5815-B18
Key specs
View all- Amperage Rating
- 600 A
- Size
- 250 kcmil; 4/0 AWG
- Type
- Modular Splice
- Voltage Rating
- 15,000 V
Description
Product overview
3M™ Modular Splicing Kit 5815 is a fully shielded separable connector system. It allows a complete dead front connection that is suitable for operating in submerged or locations. This kit is used with the 3M Modular Splicing System 5815 Series that is rated for 5 to 25 kV and 600 amp industrial shielded power cables.
3M™ Modular Splicing Kit 5815 is a fully shielded separable connector system. It allows a complete dead front connection that is suitable for operating in submerged or locations. This kit is used with the 3M Modular Splicing System 5815 Series that is rated for 5 to 25 kV and 600 amp industrial shielded power cables.
Manufacturer highlights

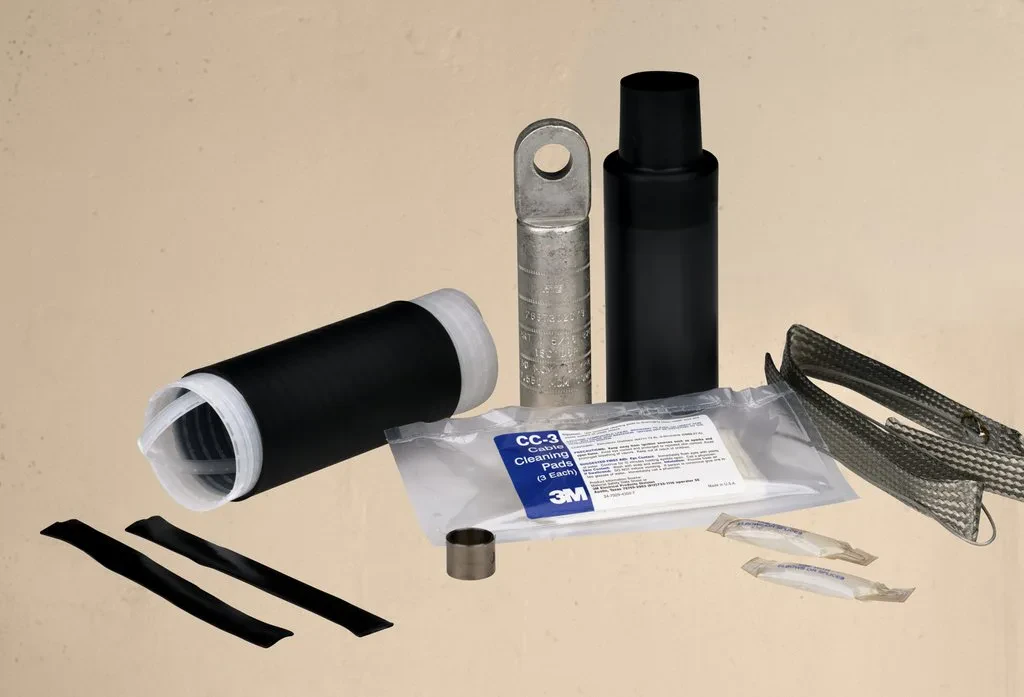

3M™ Modular Splicing Kit 5815 includes 1 cable adapter, 1 aluminum compressed connector, 1 cold shrink jacketing tube, 2 silicone lubricants and more....
3M™ Modular Splicing Kit 5815 includes 1 cable adapter, 1 aluminum compressed connector, 1 cold shrink jacketing tube, 2 silicone lubricants and more. It provides installation information for wire shield, tape shield, UniShield® and jacketed concentric, neutral type solid dielectric cables. For use with 5815 kits to provide for It is suitable for dead ending, splicing and connecting to dead front apparatus like switches, switchgear and transformers that are equipped with bushings. It has an insulating plug that provides a safe means of testing the circuit without disturbing the bolted connection. Simply adding or removing modular components helps the system for future modification. Meets ANSI/IEEE Standard 386.
- Splices tape shield, wire shield, UniShield® and JCN cables
- Suitable for use with a splicing kit, tap splicing kit, equipment kit and dead-end kit
- ANSI Certified and IEEE Approved
Additional manufacturer notes
- Short name
- 3M
- Feed description
- 3M 5815-B18 5815-B18 MODULAR ADAPTE
- Label description
- 3M(TM) Modular Adapter Kit 5815-B18
- Invoice description
- 5815-B18 MODULAR ADAPTER KIT
Specifications
- UPC
- 054007045717
- UNSPSC
- 39121450
- Country of Origin
- USA
- Amperage Rating
- 600 A
- Size
- 250 kcmil; 4/0 AWG
- Type
- Modular Splice
- Voltage Rating
- 15,000 V
- Amperage Rating
- 600 A
- Insulation
- 1
- Insulation Diameter Range
- 0.785-0.970 in
- Shielding Type
- Jacketed Concentric Neutral (JCN); Tape Shield; UniShield(R); Wire Shield
- Size
- 250 kcmil; 4/0 AWG
- Type
- Modular Splice
- Voltage Rating
- 15,000 V
