$52.21 / EA
manufacturer discounts
learn about discounts
- $51.42 for $1,500.00+
- $49.44 for $2,500.00+
- $47.46 for $3,500.00+

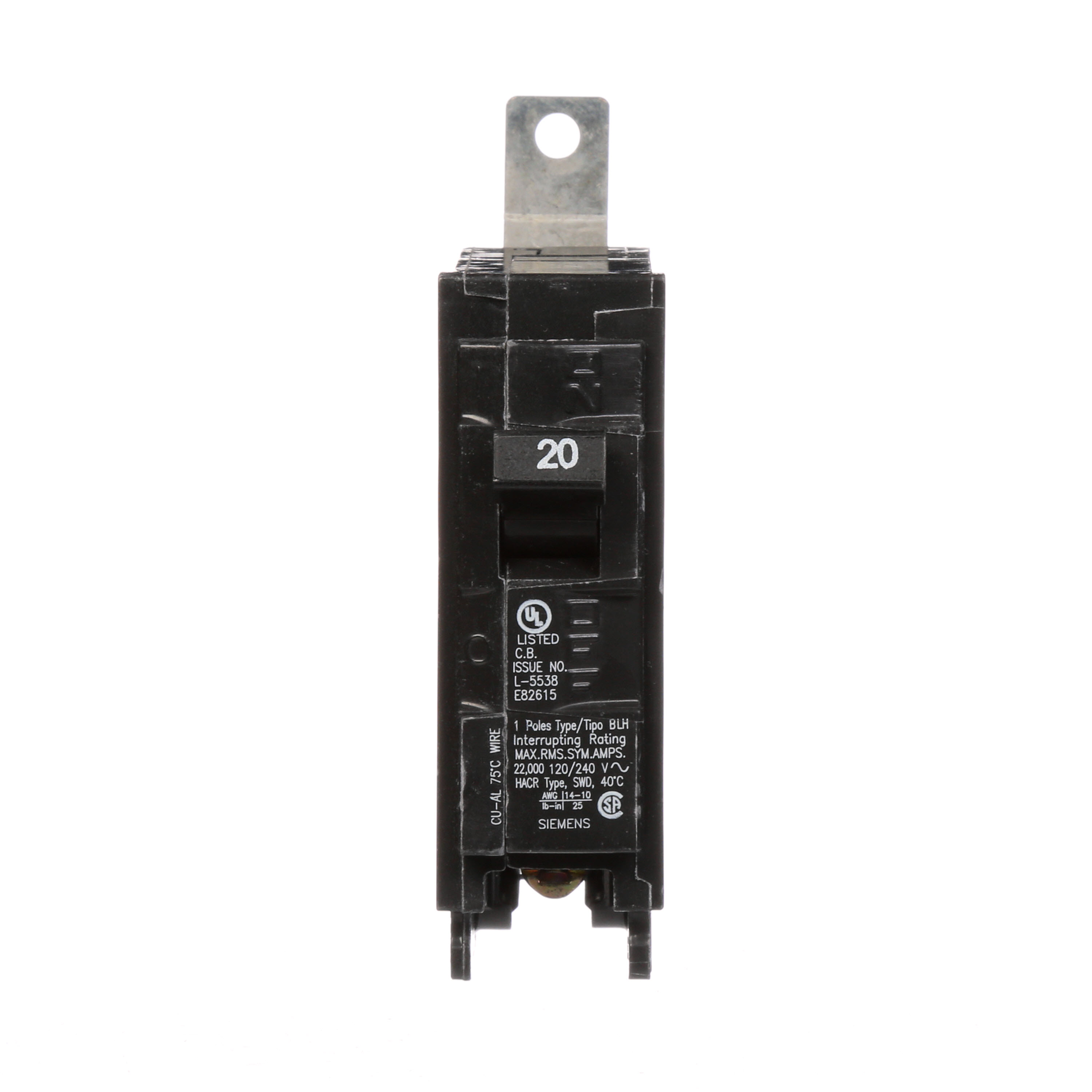

BREAKER 20A 1P 120V 22K BLH 22 KAIC
BREAKER 20A 1P 120V 22K BLH 22 KAIC
150
- UPC
- 783643263826
- UNSPSC
- 39121601
- Country of Origin
- MX
- Number Of Poles:
- 1
- Continuous current / rated value:
- 20 A
- Depth [in]:
- 3 in
- Design of the overload release:
- THERMAL-MAGNETIC
- Design of the product:
- BLH
- Height [in]:
- 3.5625 in
- Number Of Poles:
- 1
- Size of the circuit-breaker:
- BL(125A)
- Standard:
- ULLISTED/CSA/NOMCERTIFIED
- Suitability for operation:
- ELECTRICALDISTRIBUTION
- Supply voltage frequency / rated value / 50/60 Hz:
- TRUE
- Voltage / between phase and Ground (GND) / rated value:
- 120 V
- Width [in]:
- 1 in
AEBT136150C
$8,437.37 /ea
Enclosed Circuit Breaker, Type Threaded Enclosure, Constructional Feature Explosionproof, Dust-Ignitionproof, Watertight, Breaker Type Cutler-Hammer, Trip Type Non-Interchangeable, Voltage Rating 600 VAC, 125/250 VDC, Current Rating 150 Ampere, Interrupting Rating 14000 Ampere at 600 VAC, Number of Poles 3, Hub Size (4) 1-1/4 Inch, Hub Location Feed Through, Enclosure Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/7CD/9EFG, Enclosure Material Copper Free Aluminum, Enclosure Finish Gray Epoxy Powder Coated, Shaft/Handle Material Stainless Steel, Approval UL 877
AECB13615C
$5,671.04 /ea
Enclosed Circuit Breaker, Type Bolted Enclosure, Constructional Feature Explosionproof, Dust-Ignitionproof, Watertight, Breaker Type Cutler-Hammer, FD, Trip Type Non-Interchangeable, Voltage Rating 600 V, Current Rating 150 Ampere, Interrupting Rating 65000 Ampere at 240 VAC, 35000 Ampere at 480 VAC, 18000 Ampere at 600 VAC, Number of Poles 3, Hub Size 2-1/2 Inch, Hub Location Dead End, Enclosure Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/4X, Enclosure Material Copper Free Aluminum, Enclosure Finish Gray Epoxy Powder Coated, Shaft/Handle Material Stainless Steel, Approval UL 1203, CSA C22.2, Material Neoprene (O-Ring), Stainless Steel (Hinges)
EB2EH2W100
$3,611.29 /ea
Enclosed Circuit Breaker, Type Bolted Enclosure, Constructional Feature Explosionproof, Dust-Ignitionproof, Breaker Type EHD, Trip Type Thermal Magnetic, Voltage Rating 480 VAC/250 VDC, Current Rating 100 Ampere, Number of Poles 2, Hub Location Feed Through, Enclosure NEMA 3R/7B/7C/7D/9E/9F/9G, Enclosure Material Copper-Free Aluminum, Enclosure Finish 2 Coat Epoxy Enamel, Shaft/Handle Material Stainless Steel, Mounting Surface, Approval UL 1203, Applications Corrosive Atmosphere, Hazardous Location, Refinery, Chemical Plants, Petrochemical Plants, Processing Plants, Shaft/Bushing Material Stainless Steel
| Product Image |
|
|
|
|---|---|---|---|
|
AEBT136150C
Enclosed Circuit Breaker, Type Threaded Enclosure, Constructional Feature Explosionproof, Dust-Ignitionproof, Watertight, Breaker Type Cutler-Hammer, Trip Type Non-Interchangeable, Voltage Rating 600 VAC, 125/250 VDC, Current Rating 150 Ampere, Inter...
$8,437.37 / EA
|
AECB13615C
Enclosed Circuit Breaker, Type Bolted Enclosure, Constructional Feature Explosionproof, Dust-Ignitionproof, Watertight, Breaker Type Cutler-Hammer, FD, Trip Type Non-Interchangeable, Voltage Rating 600 V, Current Rating 150 Ampere, Interrupting Ratin...
$5,671.04 / EA
|
EB2EH2W100
Enclosed Circuit Breaker, Type Bolted Enclosure, Constructional Feature Explosionproof, Dust-Ignitionproof, Breaker Type EHD, Trip Type Thermal Magnetic, Voltage Rating 480 VAC/250 VDC, Current Rating 100 Ampere, Number of Poles 2, Hub Location Feed...
$3,611.29 / EA
|
|
