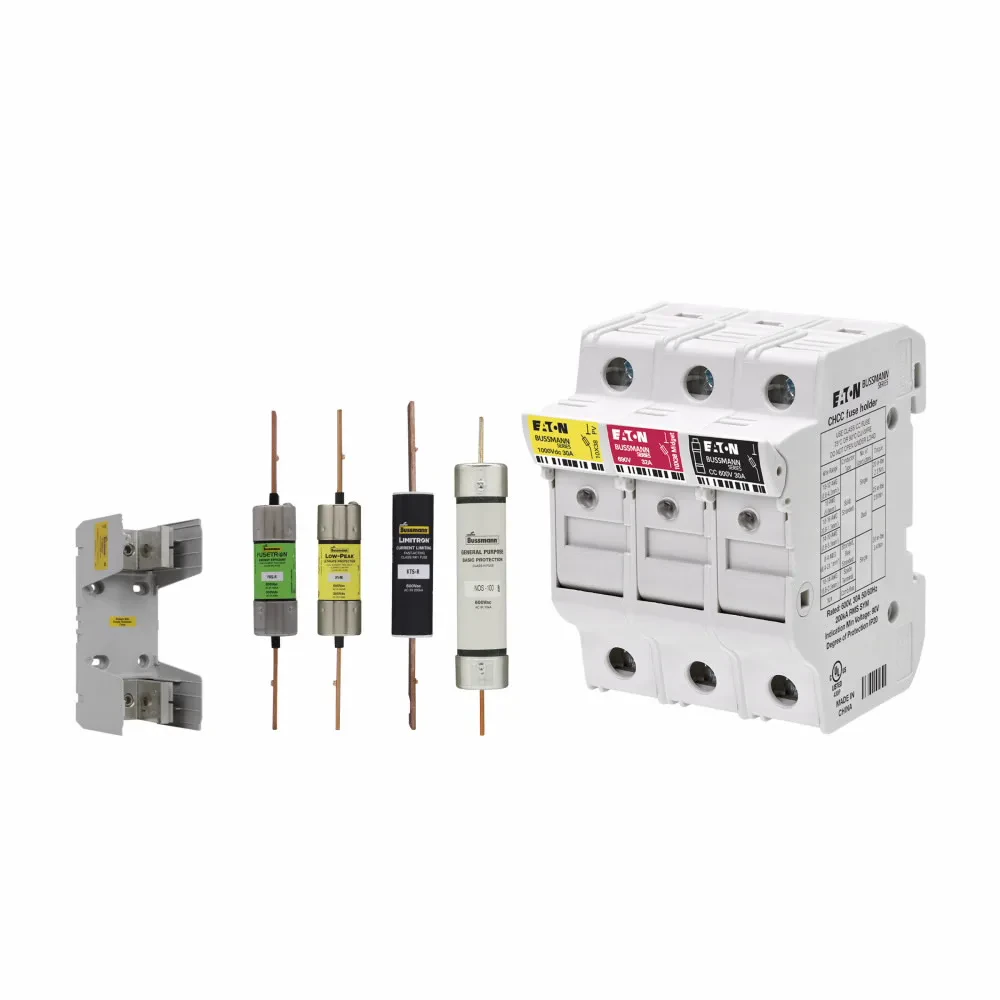

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
BK/FWH5-016A6F
SKU: BK/FWH5-016A6F
MPN: BK/FWH5-016A6F
Key specs
View all- Amperage Rating
- 16 A
- Type
- High speed fuse
- Voltage Rating
- 500 V
Description
Product overview
Eaton Bussmann series FWH high speed fuse, Electric engineering, 500V, 16A, 50 kAIC, Non Indicating, High speed fuse - BK/FWH5-016A6F
Eaton Bussmann series FWH high speed fuse, Electric engineering, 500V, 16A, 50 kAIC, Non Indicating, High speed fuse - BK/FWH5-016A6F
Manufacturer highlights
High speed fuses provide superior protection or isolation for components such as diodes, silicon controlled rectifiers (SCRs), Gate torn-Off Thyristor...
High speed fuses provide superior protection or isolation for components such as diodes, silicon controlled rectifiers (SCRs), Gate torn-Off Thyristors (GTOs) and IGBTs and in light and heavy harsh DC traction applications as high as 4000Vdc and 10,000A. Also used for the protection of DC link/power converters. Optimized dimensions and materials allow for excellent thermal dissipation for high current cycling enviroments, or heavy duty applications.
Additional manufacturer notes
- Short name
- BUSS
- Feed description
- BUSS BK/FWH5-016A6F BUSS, SEMICONDU
- Invoice description
- BUSS, SEMICONDUCTOR, 500V
Specifications
- UPC
- 051712532464
- UNSPSC
- 39121628
- Country of Origin
- MX
- Amperage Rating
- 16 A
- Type
- High speed fuse
- Voltage Rating
- 500 V
- Amperage Rating
- 16 A
- Dimensions
- 0.0010 IN X 0.0010 IN X 0.0010 IN
- Standard
- CSA Certified,CE Marked
- Sub Brand
- Bussmann Series
- Type
- High speed fuse
- Voltage Rating
- 500 V
