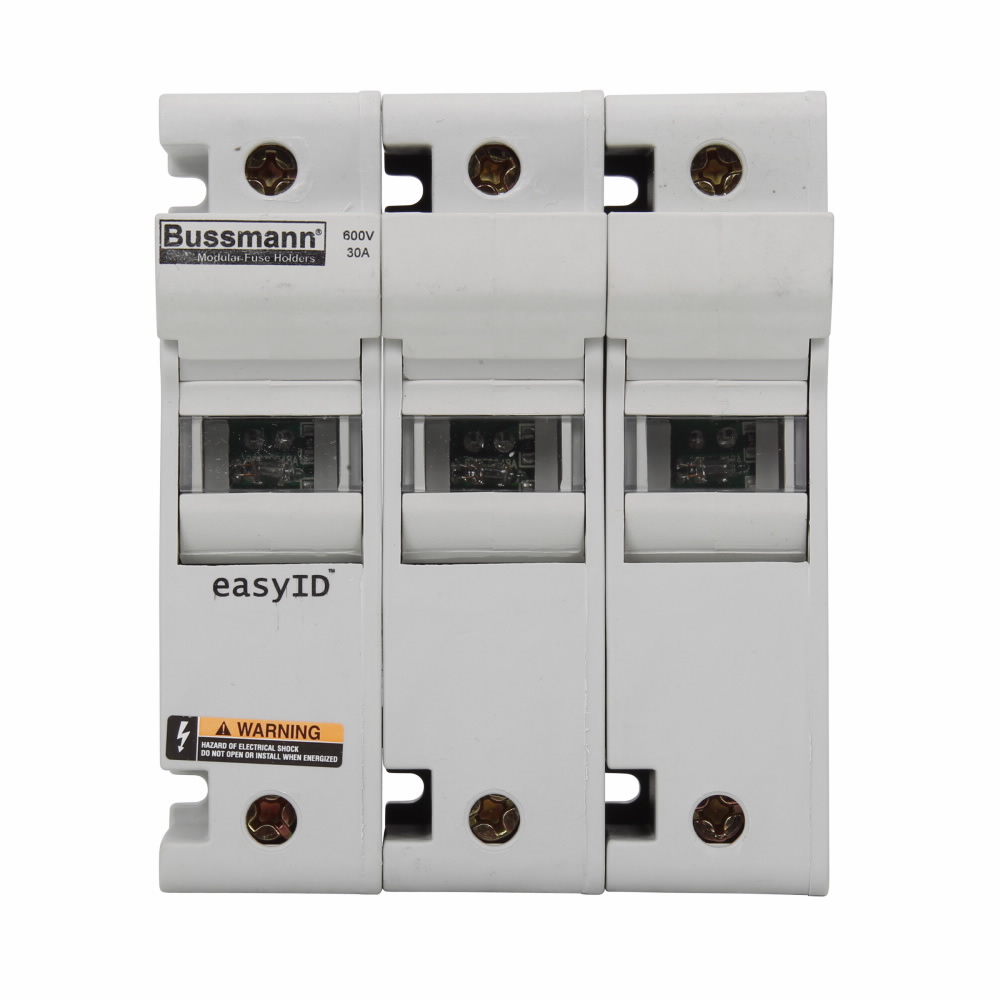

Eaton Bussmann series CH modular fuse holder, 600 Vac, 600 Vdc, 30A, Three-pole, Neon lamp
Eaton Bussmann series CH modular fuse holder, 600 Vac, 600 Vdc, 30A, Three-pole, Neon lamp
Eaton�s Bussmann� series power distribution fuse blocks (PDFB) combine a fuse block and power distri...150
Eaton�s Bussmann� series power distribution fuse blocks (PDFB) combine a fuse block and power distribution block into one component. This patented design simplifies your panel layout and uses up to 65% less panel space. Additionally, it lowers inventory costs while reducing installation time and labor by 33%. Bussmann series PDFBs are available for Class J ferrule and knifeblade fuses. PDFBs up to 60 amps feature DIN-Rail and panel mount versatility for ease of installation. Additionally, PDFBs use fewer wire connections, reducing watts loss and overall operating temperature of the panel
- UPC
- 051712630870
- UNSPSC
- 39121624
- Country of Origin
- CN
- Amperage Rating:
- 30 A
- Material:
- Thermoplastic housingTin-plated copper clip
- Size:
- 3.84 In Length X 2.83 In Width X 4.59 In Height
- Type:
- Modular fuse holder
- Voltage Rating:
- 600 VAC//VDC
- Wattage:
- 85 CEL
- Amperage Rating:
- 30 A
- Class:
- J
- Dimensions:
- 5.0000 IN X 4.5000 IN X 2.0000 IN
- Material:
- Thermoplastic housingTin-plated copper clip
- Mounting:
- 35 mm DIN Rail/Panel
- Operating Temperature:
- 85 Deg C
- Size:
- 3.84 In Length X 2.83 In Width X 4.59 In Height
- Standard:
- Contact Manufacturer,RoHS Compliant
- Sub Brand:
- Bussmann Series
- Type:
- Modular fuse holder
- Voltage Rating:
- 600 VAC//VDC
- Wattage:
- 85 CEL
