$4.64 / EA

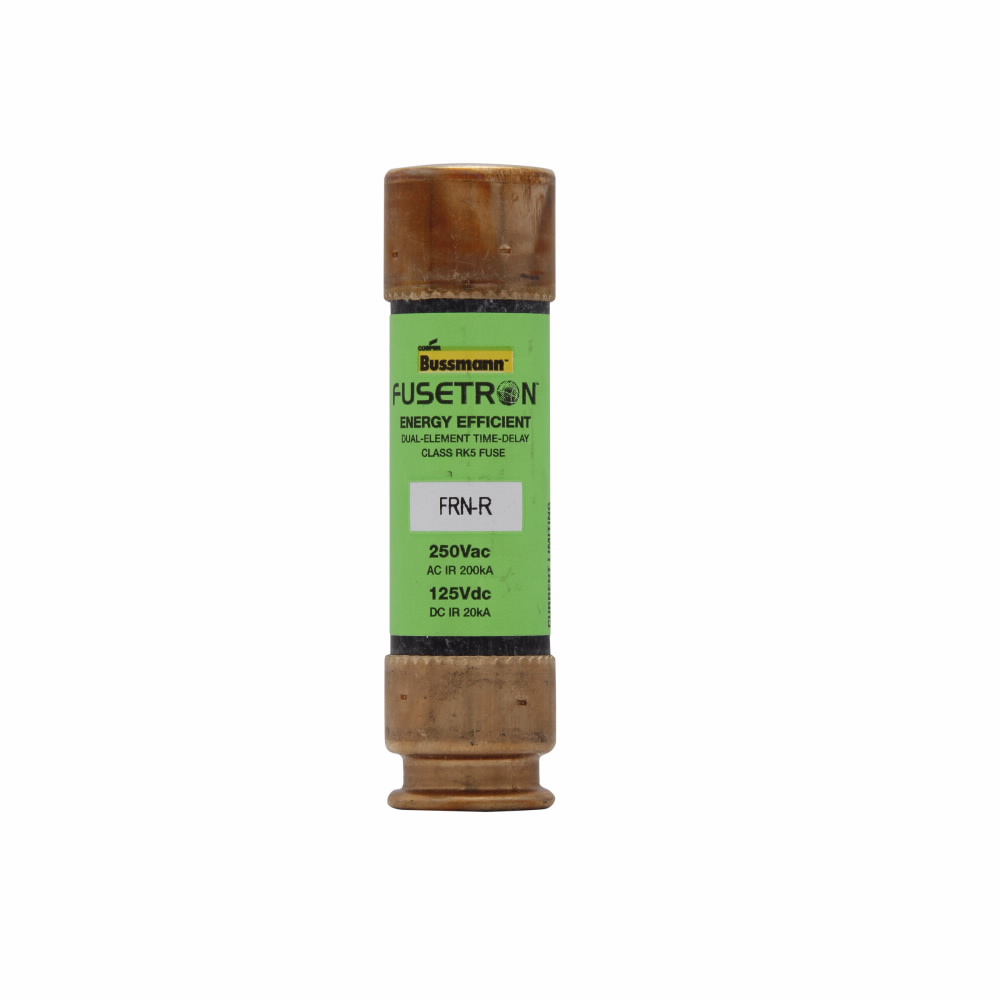

Eaton Bussmann series FRN-R fuse, 40 A, Dual, Class RK5, Non-indicating, Ferrule end x ferrule end, 10 sec at 500%, 20 kAIC at 125 Vdc,200 kAIC at 250 V, Standard, 250 V, 125 Vdc
Eaton Bussmann series FRN-R fuse, 40 A, Dual, Class RK5, Non-indicating, Ferrule end x ferrule end, 10 sec at 500%, 20 kAIC at 125 Vdc,200 kAIC at 250 V, Standard, 250 V, 125 Vdc
Bussmann's UL Class RK5 Fusetron product offering provides energy efficient advanced protection with...150
Bussmann's UL Class RK5 Fusetron product offering provides energy efficient advanced protection with its dual-element, time-delay construction and is available with optional open fuse indication on select ratings. Available in both 250Vac and 600Vac, 200kA RMS Sym interrupting rating and sizes ranging from 0 to 600 amp. Fusetron's deliver 10 seconds (minimum) of time-delay at 500% of rated current (8 seconds for 1/10-30A sizes).
- UPC
- 051712101783
- UNSPSC
- 39121606
- Country of Origin
- MX
- Amperage Rating:
- 40 A
- Size:
- 0.81 In Diameter X 3.00 In Length
- Type:
- Fuse
- Voltage Rating:
- 250/125 VAC//VDC
- Amperage Rating:
- 40 A
- Class:
- RK-5
- Connection:
- Ferrule end x ferrule end
- Dimensions:
- 3.0000 IN X 0.8100 IN X 0.8100 IN
- Element:
- Dual
- Interrupt Rating:
- 20 kAIC at 125 Vdc200 kAIC at 250 Vac
- Response Time:
- 10 S at 500%
- Size:
- 0.81 In Diameter X 3.00 In Length
- Standard:
- CE Marked
- Sub Brand:
- Bussmann Series
- Type:
- Fuse
- Voltage Rating:
- 250/125 VAC//VDC
LKN-150
$42.39 /ea
Eaton Bussmann series LKN fuse link,250V,150A,Class H, K5
| Attributed Data | Included |
|---|---|
| Class | Class K5Class H Yes |
| Dimensions | 3.6000 IN X 1.3000 IN X 1.1000 IN Yes |
| Standard | RoHS Compliant Yes |
| Sub Brand | Bussmann Series Yes |
| Type | Fuse link Yes |
LKN-200
$37.76 /ea
Eaton Bussmann series LKN fuse link,250V,200A,Class H, K5,Non Indicating
| Attributed Data | Included |
|---|---|
| Class | Class HClass K5 Yes |
| Dimensions | 3.6000 IN X 1.3000 IN X 1.1000 IN Yes |
| Standard | RoHS Compliant Yes |
| Sub Brand | Bussmann Series Yes |
| Type | Fuse link Yes |
LKN-300
$76.29 /ea
Eaton Bussmann series LKN fuse link,250V,300A,Class H, K5, LKN series
| Attributed Data | Included |
|---|---|
| Class | Class K5Class H Yes |
| Dimensions | 3.6220 IN X 1.3390 IN X 1.1020 IN Yes |
| Standard | RoHS Compliant Yes |
| Sub Brand | Bussmann Series Yes |
| Type | Fuse link Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
LKN-150
Eaton Bussmann series LKN fuse link,250V,150A,Class H, K5
$42.39 / EA
|
LKN-200
Eaton Bussmann series LKN fuse link,250V,200A,Class H, K5,Non Indicating
$37.76 / EA
|
LKN-300
Eaton Bussmann series LKN fuse link,250V,300A,Class H, K5, LKN series
$76.29 / EA
|
|
| Attributed Data | |||
| Amperage Rating | 150 A 150 A | 200 A 200 A | 300 A 300 A |
| Class | Class HClass K5 Class HClass K5 | Class K5Class H Class K5Class H | |
| Dimensions | 3.6000 IN X 1.3000 IN X 1.1000 IN 3.6000 IN X 1.3000 IN X 1.1000 IN | 3.6220 IN X 1.3390 IN X 1.1020 IN 3.6220 IN X 1.3390 IN X 1.1020 IN | |
| Standard | RoHS Compliant RoHS Compliant | ||
| Sub Brand | Bussmann Series Bussmann Series | ||
| Type | Fuse link Fuse link | ||
| Voltage Rating | 250 V 250 V | ||
| Add a product to the cart | Show more details | Show more details | Show more details |
