$214.98 / EA
manufacturer discounts
learn about discounts
- $192.74 for $1,500.00+
- $185.33 for $2,500.00+
- $177.91 for $3,500.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders

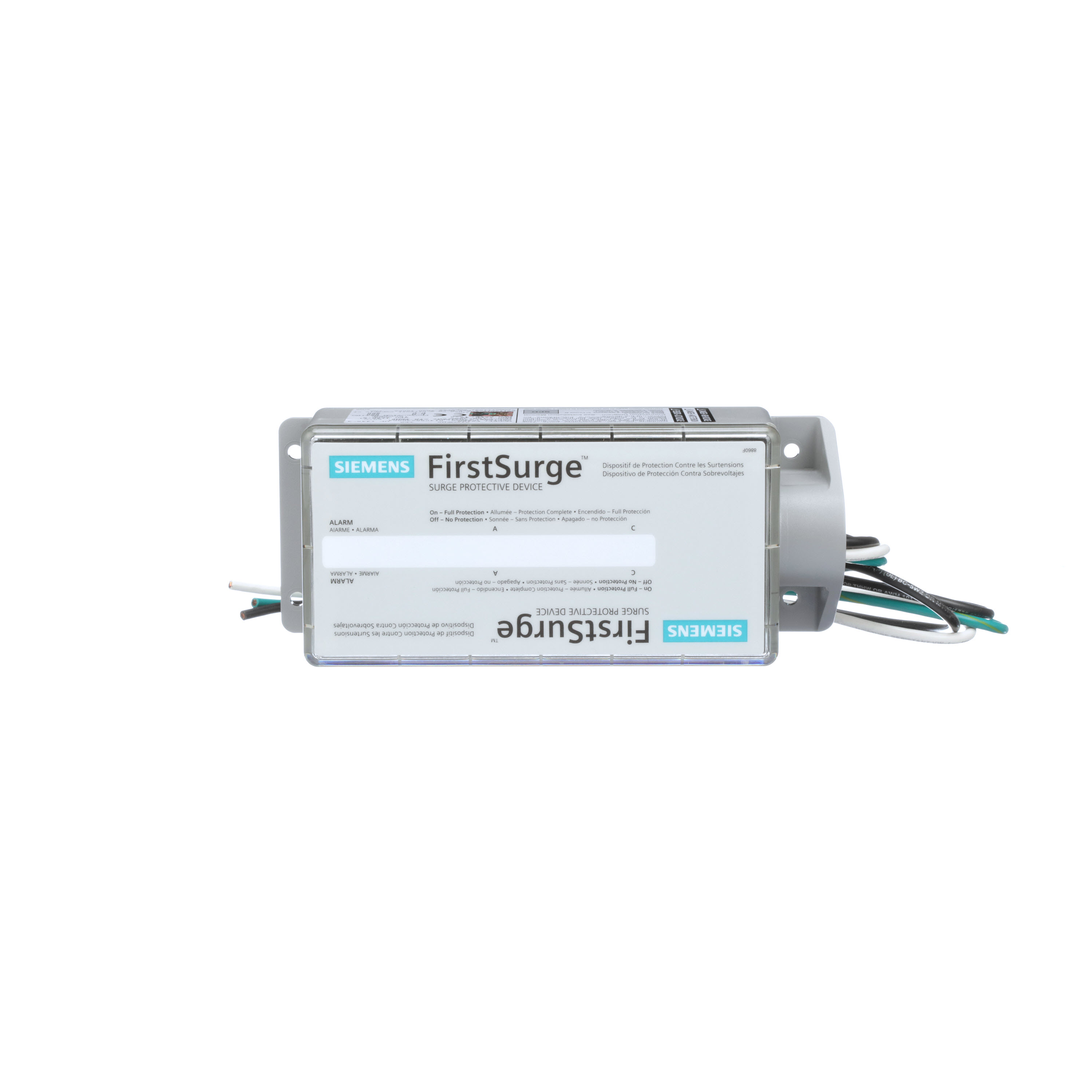

FirstSurge type 2 surge protective device. Rated 120/240V split pahse (Up to 400A) at 50/60Hz. Surge spike capacity 100kA. Special features less than 1 nanosecond response time, Nema 4X enclosure (indoor - outdoor), 3 stage commercial grade notification, ground reference monitoring (GRM), installs onto any brand load center
FirstSurge type 2 surge protective device. Rated 120/240V split pahse (Up to 400A) at 50/60Hz. Surge spike capacity 100kA. Special features less than 1 nanosecond response time, Nema 4X enclosure (indoor - outdoor), 3 stage commercial grade notification, ground reference monitoring (GRM), installs onto any brand load center
150
- UPC
- 804766055553
- UNSPSC
- 39121610
- Country of Origin
- US
- Voltage Rating:
- 120 V
- Depth [in]:
- 3 in
- Frequency Rating:
- Yes
- Height [in]:
- 8 in
- Phase:
- 1
- Sub Brand:
- FirstSurge
- Voltage / between phase and phase / rated value:
- 241 V
- Voltage Rating:
- 120 V
- Width [in]:
- 4 in
5480-BU
$64.00 /ea
15-Amp 125-Volt 4-In-1 Receptacle, Blue
| Attributed Data | Included |
|---|---|
| Environmental Conditions | Flammability (Rated UL 94 V-2) Yes |
| Material | Polycarbonate Yes |
| Mounting | Box Yes |
| Outlet | Four-In-One Yes |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);UL Listed (498);UL Listed (1449);CSA Certified (C22.2);NOM Certified (057) Yes |
| Type | Type 3 SPD Yes |
| Type Of Indicators | Indicator Light Yes |
5480-GY
$64.00 /ea
15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, 4-In-1 Receptacle, Straight Blade, Industrial Grade, Grounding, Surge w/ Indicator Light, Side Wired, Steel Strap, - Gray
| Attributed Data | Included |
|---|---|
| Environmental Conditions | Flammability (Rated UL 94 V-2) Yes |
| Material | Polycarbonate Yes |
| Mounting | Box Yes |
| Outlet | Four-In-One Yes |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);UL Listed (498);UL Listed (1449);CSA Certified (C22.2);NOM Certified (057) Yes |
| Type | Type 3 SPD Yes |
| Type Of Indicators | Indicator Light Yes |
5480-IG
$64.00 /ea
15-Amp 125-Volt 4-In-1 Receptacle, Orange
| Attributed Data | Included |
|---|---|
| Environmental Conditions | Flammability (Rated UL 94 V-2) Yes |
| Material | Polycarbonate Yes |
| Mounting | Box Yes |
| Outlet | Four-In-One Yes |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);UL Listed (498);UL Listed (1449);CSA Certified (C22.2);NOM Certified (057) Yes |
| Type | Type 3 SPD Yes |
| Type Of Indicators | Indicator Light Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
5480-BU
15-Amp 125-Volt 4-In-1 Receptacle, Blue
$64.00 / EA
|
5480-GY
15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, 4-In-1 Receptacle, Straight Blade, Industrial Grade, Grounding, Surge w/ Indicator Light, Side Wired, Steel Strap, - Gray
$64.00 / EA
|
5480-IG
15-Amp 125-Volt 4-In-1 Receptacle, Orange
$64.00 / EA
|
|
| Attributed Data | |||
| Amperage Rating | 15 A 15 A | ||
| Environmental Conditions | Flammability (Rated UL 94 V-2) Flammability (Rated UL 94 V-2) | ||
| Material | Polycarbonate Polycarbonate | ||
| Mounting | Box Box | ||
| Operating Temperature | -40 to +60 DEG C -40 to +60 DEG C | ||
| Outlet | Four-In-One Four-In-One | ||
| Short Circuit Rating | 5 KAMP 5 KAMP | ||
| Size | 4.50 W x 1.15 D IN 4.50 W x 1.15 D IN | ||
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);UL Listed (498);UL Listed (1449);CSA Certified (C22.2);NOM Certified (057) NEMA (WD-1, WD-6);ANSI (C-73);UL Listed (498);UL Listed (1449);CSA Certified (C22.2);NOM Certified (057) | ||
| Type | Type 3 SPD Type 3 SPD | ||
| Type Of Indicators | Indicator Light Indicator Light | ||
| Voltage Rating | 125 V 125 V | ||
