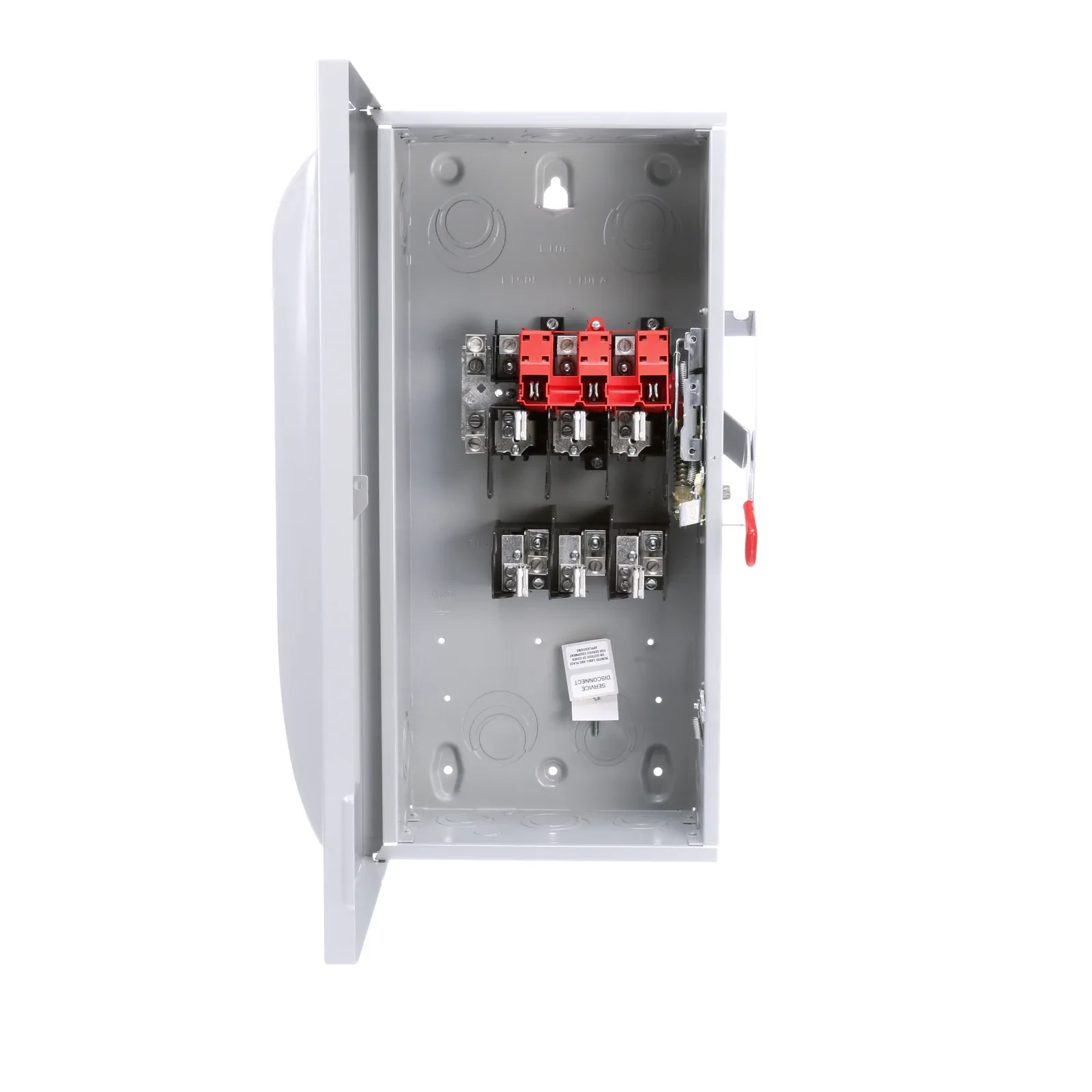

Siemens Low Voltage Circuit Protection General Duty Safety Switch. 3-Pole 3-Fuse and solid neutral Fused in a type 1 enclosure (indoor). Rated 240VAC (100A). Horse power (Std, Time delay) fused 1-PH 2-W (7-1/2, 15), 3-PH 3-W (15, 30), 250VDC (20). Special features service entrance labeled .

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

Siemens Industry, Inc. GF323N

Name: GF323N — Siemens Low Voltage Circuit Protection General Duty Safety Switch.
Brand: SIEMENS INDUSTRY, INC.
SKU: GF323N
Price: 236.60 USD
Availability: InStock

Safety Switch

Purchase options

$236.60 / EA

manufacturer discounts
learn about discounts

$219.70 for $1,500.00+
$211.25 for $2,500.00+
$202.80 for $3,500.00+

In stock (2)

Description

Siemens Low Voltage Circuit Protection General Duty Safety Switch. 3-Pole 3-Fuse and solid neutral Fused in a type 1 enclosure (indoor). Rated 240VAC (100A). Horse power (Std, Time delay) fused 1-PH 2-W (7-1/2, 15), 3-PH 3-W (15, 30), 250VDC (20). Special features service entrance labeled .

150

Specifications

UPC: 783643148147
UNSPSC: 39122205
Country of Origin: MX
Amperage Rating: 100 A
Material: Steel
Number Of Poles: 3
Type: GENERALDUTYSWITCH
Actuator: SINGLETHROW
Ambient temperature / during operation / maximum: 85 °C
Amperage Rating: 100 A
Connection: MECHANICALLUGS
Enclosure: NEMA1
Frequency Rating: TRUE
Material: Steel
Mounting: SURFACE
Number Of Poles: 3
Operating Cycles: 10k
Operating Temperature: -29 ?C
Standard: UL98
Sub Brand: VBII
Type: GENERALDUTYSWITCH
