$48.39 / EA
manufacturer discounts
learn about discounts
- $39.28 for $1,300.00+
- $37.08 for $2,000.00+
- $35.19 for $3,000.00+

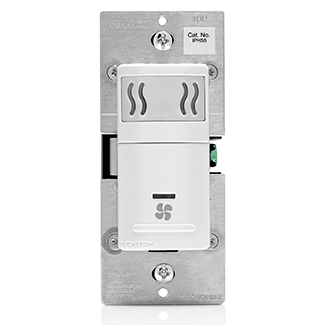

5A-120VAC. 1/6 Hp Fan Load. Humidity Sensor Fan Controller. Single Pole. Screw Terminals For Wiring. Wallplate Not Included. Wire Nuts Not Included - White
5A-120VAC. 1/6 Hp Fan Load. Humidity Sensor Fan Controller. Single Pole. Screw Terminals For Wiring. Wallplate Not Included. Wire Nuts Not Included - White
150
- UPC
- 078477654897
- UNSPSC
- 39122208
- Country of Origin
- CN
- Number Of Poles:
- 1
- Type:
- Humidity Sensor and Fan Control
- Voltage Rating:
- 120 V
- Mounting:
- Wall
- Number Of Poles:
- 1
- Standard:
- CUL/US
- Timing Range:
- 10-45 min
- Type:
- Humidity Sensor and Fan Control
- Voltage Rating:
- 120 V
4100B5WLEV
$617.31 /ea
100 Amp, 600 Volt 3PY, Industrial Grade, Inlet North American Pin and Sleeve, IP67, Watertight, Black
| Attributed Data | Included |
|---|---|
| Action | TP Yes |
| Color | Black Yes |
| Corrosion Resistance | Ferrous Parts Immersed in 20DEG C, 10 PCT Ammonium Chloride Solution for 10 min Yes |
| Current Interrupting | Certified for Current Interrupting at Full Rated Current Yes |
| Environmental Conditions | Humidity (32 DEG C, 93 PCT, 168 HR);Flammability (Rated UL94 V-2) Yes |
| Gasket Material | Chloroprene Yes |
| Interrupt Rating | IP67 Watertight Yes |
| Moisture Resistance | Per UL 1682 Immersed for 24 Hours in 5cm of 25ªC Water Yes |
| Mounting | Flange Mount Yes |
| Number Of Poles | 3 Yes |
| Replacement Parts Material | Reinforced Nylon (Contact Carrier), Brass (Phase and Ground Pins), Valox 357 (Locking Ring), Valox 357 (Mounting Flange) Yes |
| Standard | UL Listed 1682 and 1686, CSA Certified C22.2 No 182.1, Per low voltage directives 73\23\EEC, 93\68\EEC, IEC Rated 60309-1 and 60309-2 Yes |
| Type | Pin & Sleeve Watertight Inlet Yes |
| Wire Size | 3 Yes |
| Wire Size | 4 Yes |
320B6W-LEV
$117.58 /ea
20 Amp, 250 Volt, IEC 309-1 & 309-2, 2P, 3W, Inlet North American Pin & Sleeve Receptacle, Industrial Grade, IP67, Watertight - Blue
| Attributed Data | Included |
|---|---|
| Action | DP Yes |
| Color | Blue Yes |
| Corrosion Resistance | Ferrous Parts Immersed in 20DEG C, 10 PCT Ammonium Chloride Solution for 10 min Yes |
| Current Interrupting | Certified for Current Interrupting at Full Rated Current Yes |
| Environmental Conditions | Humidity (32 DEG C, 93 PCT, 168 HR);Flammability (Rated UL94 V-2) Yes |
| Gasket Material | Chloroprene Yes |
| Interrupt Rating | IP67 Watertight Yes |
| Moisture Resistance | Per UL 1682 Immersed for 24 Hours in 5cm of 25ªC Water Yes |
| Mounting | Flange Mount Yes |
| Number Of Poles | 2 Yes |
| Number Of Poles | 3 Yes |
| Replacement Parts Material | Nylon (Contact Carrier), Brass (Phase and Ground Pins), Valox 357 (Locking Ring), Valox 357 (Mounting Flange) Yes |
| Standard | UL Listed 1682 and 1686, CSA Certified C22.2 No 182.1, Per low voltage directives 73\23\EEC, 93\68\EEC, IEC Rated 60309-1 and 60309-2 Yes |
| Type | Pin & Sleeve Watertight Inlet Yes |
| Wire Size | 3 Yes |
420R9WLEV
$189.82 /ea
20 Amp, 250 Volt 3-Phase, IEC 309-1 & 309-2, 3P, 4W, Outlet North American Pin & Sleeve Receptacle, Industrial Grade, IP67, Watertight - Blue
| Attributed Data | Included |
|---|---|
| Action | TP Yes |
| Color | Blue Yes |
| Corrosion Resistance | Ferrous Parts Immersed in 20DEG C, 10 PCT Ammonium Chloride Solution for 10 min Yes |
| Current Interrupting | Certified for Current Interrupting at Full Rated Current Yes |
| Environmental Conditions | Humidity (32 DEG C, 93 PCT, 168 HR);Flammability (Rated UL94 V-2) Yes |
| Gasket Material | Chloroprene Yes |
| Interrupt Rating | IP67 Watertight Yes |
| Moisture Resistance | Per UL 1682 Immersed for 24 Hours in 5cm of 25ªC Water Yes |
| Mounting | Flange Mount Yes |
| Number Of Poles | 3 Yes |
| Replacement Parts Material | Stainless Steel (Sleeve Spring), Nickel Plated Brass (Cover Eyelet), Brass (Phase and Ground Sleeves), Performance Grade Stainless Steel (Arm Spring), Valox 357 (Cover with Arm), Valox 357 (Mounting Flange) Yes |
| Standard | UL Listed 1682 and 1686, CSA Certified C22.2 No 182.1, Per low voltage directives 73\23\EEC, 93\68\EEC, IEC Rated 60309-1 and 60309-2 Yes |
| Temperature Rise | Max 30DEG C (After 50 Cycles OL at 150 PCT Rated Current) Yes |
| Type | Pin & Sleeve Watertight Receptacle Yes |
| Wire Size | 3 Yes |
| Wire Size | 4 Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
4100B5WLEV
100 Amp, 600 Volt 3PY, Industrial Grade, Inlet North American Pin and Sleeve, IP67, Watertight, Black
$617.31 / EA
|
320B6W-LEV
20 Amp, 250 Volt, IEC 309-1 & 309-2, 2P, 3W, Inlet North American Pin & Sleeve Receptacle, Industrial Grade, IP67, Watertight - Blue
$117.58 / EA
|
420R9WLEV
20 Amp, 250 Volt 3-Phase, IEC 309-1 & 309-2, 3P, 4W, Outlet North American Pin & Sleeve Receptacle, Industrial Grade, IP67, Watertight - Blue
$189.82 / EA
|
|
| Attributed Data | |||
| Action | DP DP | TP TP | |
| Amperage Rating | 20 A 20 A | 100 A 100 A | |
| Color | Black Black | Blue Blue | |
| Corrosion Resistance | Ferrous Parts Immersed in 20DEG C, 10 PCT Ammonium Chloride Solution for 10 min Ferrous Parts Immersed in 20DEG C, 10 PCT Ammonium Chloride Solution for 10 min | ||
| Current Interrupting | Certified for Current Interrupting at Full Rated Current Certified for Current Interrupting at Full Rated Current | ||
| Environmental Conditions | Humidity (32 DEG C, 93 PCT, 168 HR);Flammability (Rated UL94 V-2) Humidity (32 DEG C, 93 PCT, 168 HR);Flammability (Rated UL94 V-2) | ||
| Gasket Material | Chloroprene Chloroprene | ||
| Insulation Resistance | 5 @ 500 V for 1 min Ohms 5 @ 500 V for 1 min Ohms | ||
| Interrupt Rating | IP67 Watertight IP67 Watertight | ||
| Moisture Resistance | Per UL 1682 Immersed for 24 Hours in 5cm of 25ªC Water Per UL 1682 Immersed for 24 Hours in 5cm of 25ªC Water | ||
| Mounting | Flange Mount Flange Mount | ||
| Number Of Poles | 2 2 | 3 3 | |
| Replacement Parts Material | Nylon (Contact Carrier), Brass (Phase and Ground Pins), Valox 357 (Locking Ring), Valox 357 (Mounting Flange) Nylon (Contact Carrier), Brass (Phase and Ground Pins), Valox 357 (Locking Ring), Valox 357 (Mounting Flange) | Reinforced Nylon (Contact Carrier), Brass (Phase and Ground Pins), Valox 357 (Locking Ring), Valox 357 (Mounting Flange) Reinforced Nylon (Contact Carrier), Brass (Phase and Ground Pins), Valox 357 (Locking Ring), Valox 357 (Mounting Flange) | Stainless Steel (Sleeve Spring), Nickel Plated Brass (Cover Eyelet), Brass (Phase and Ground Sleeves), Performance Grade Stainless Steel (Arm Spring), Valox 357 (Cover with Arm), Valox 357 (Mounting Flange) Stainless Steel (Sleeve Spring), Nickel Plated Brass (Cover Eyelet), Brass (Phase and Ground Sleeves), Performance Grade Stainless Steel (Arm Spring), Valox 357 (Cover with Arm), Valox 357 (Mounting Flange) |
| Size | 2.24 L IN 2.24 L IN | 3.74 H x 41 D IN 3.74 H x 41 D IN | 5.71 L IN 5.71 L IN |
| Standard | UL Listed 1682 and 1686, CSA Certified C22.2 No 182.1, Per low voltage directives 73\23\EEC, 93\68\EEC, IEC Rated 60309-1 and 60309-2 UL Listed 1682 and 1686, CSA Certified C22.2 No 182.1, Per low voltage directives 73\23\EEC, 93\68\EEC, IEC Rated 60309-1 and 60309-2 | ||
| Temperature Rise | Max 30DEG C (After 50 Cycles OL at 150 PCT Rated Current) Max 30DEG C (After 50 Cycles OL at 150 PCT Rated Current) | ||
| Type | Pin & Sleeve Watertight Inlet Pin & Sleeve Watertight Inlet | Pin & Sleeve Watertight Receptacle Pin & Sleeve Watertight Receptacle | |
| Voltage Rating | 250 VAC 250 VAC | 600 VAC 600 VAC | |
| Wire Size | 3 3 | 4 4 | |
