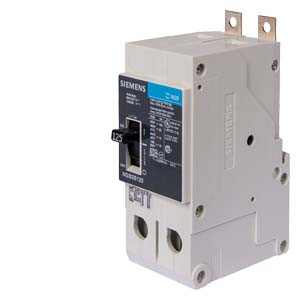

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$1,963.76 / EA
manufacturer discounts
learn about discounts
- $1,760.62 for $1,500.00+
- $1,692.90 for $2,500.00+
- $1,625.18 for $3,500.00+
SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED LGB FRAME WITH VERY HIGH BREAKING CAPACITY. 30A 3-POLE (14KAIC AT 600Y/347V) (65KAIC AT 480Y/277V). SPECIAL FEATURES MOUNTS ON PANELBOARD,LOAD SIDE LUGS ONLY (TC1Q1) WIRE RANGE 14 - 10 AWS (CU/AL). DIMENSIONS (W x H xD) IN 3 x 5.4 x 2.8.
SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED LGB FRAME WITH VERY HIGH BREAKING CAPACITY. 30A 3-POLE (14KAIC AT 600Y/347V) (65KAIC AT 480Y/277V). SPECIAL FEATURES MOUNTS ON PANELBOARD,LOAD SIDE LUGS ONLY (TC1Q1) WIRE RANGE 14 - 10 AWS (CU/AL). DIMENSIONS (W x H xD) IN 3 x 5.4 x 2.8.
150
- UPC
- 887621220242
- UNSPSC
- 39121601
- Country of Origin
- MX
- Number Of Poles:
- 3
- Continuous current / rated value:
- 30 A
- Design of the overload release:
- THERMAL-MAGNETIC
- Design of the product:
- MOLDEDCASECIRCUITBREAKER
- Height [in]:
- 5.4 in
- Mounting type:
- PANELBOARDBUS
- Number Of Poles:
- 3
- Standard:
- UL/CSA/IEC/NOM
- Suitability for operation:
- ELECTRICALDISTRIBUTION
- Tripping characteristic class:
- VERYHIGH
- Voltage / between phase and Ground (GND) / rated value:
- 347 V
- Voltage / between phase and phase / rated value:
- 600 V
- Width [in]:
- 3 in
