$16.16 / EA

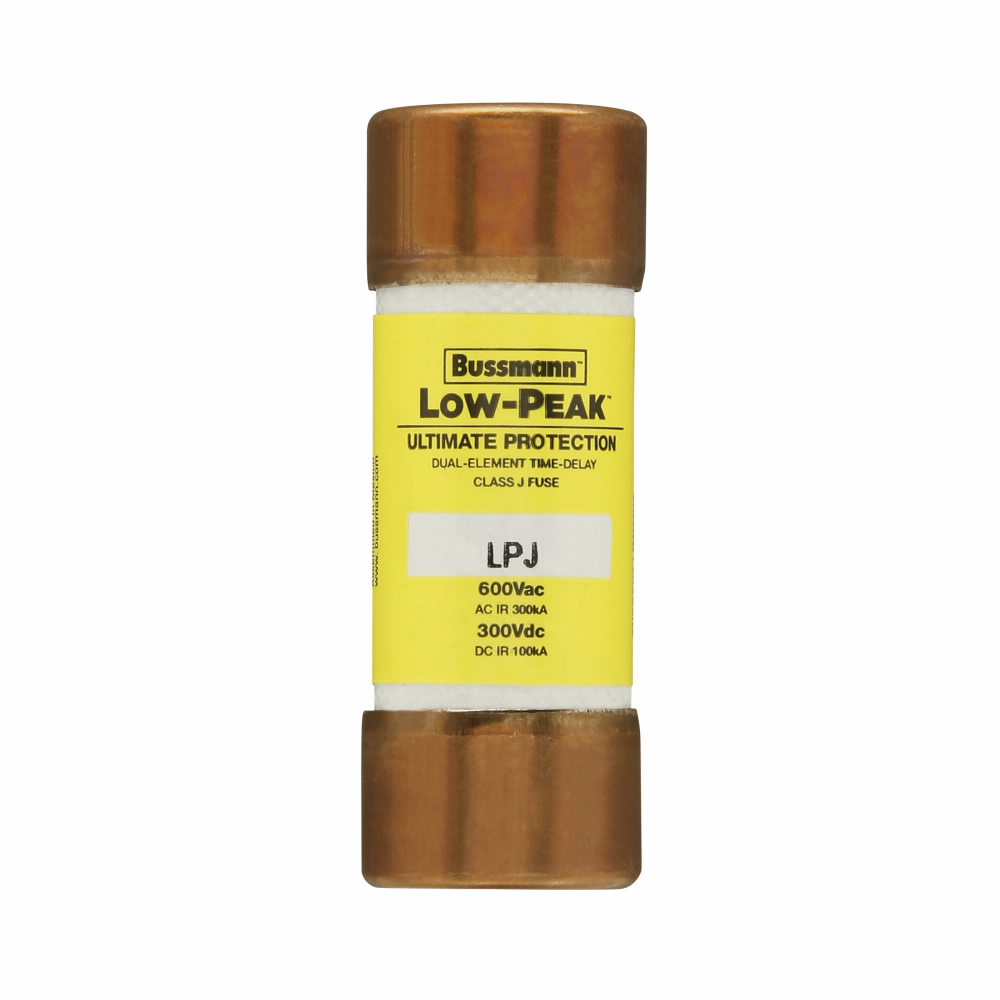

10A 600V Class J Low Peak Dual Element, Time Delay Fuse
10A 600V Class J Low Peak Dual Element, Time Delay Fuse
150
- UPC
- 051712523226
- UNSPSC
- 39121626
- Country of Origin
- MX
- Amperage Rating:
- 10 A
- Size:
- 0.81 In Diameter X 2.25 In Length
- Type:
- Current Limiting, Time Delay
- Voltage Rating:
- 600//300 VAC//VDC
- Amperage Rating:
- 10 A
- Class:
- J
- Connection:
- Ferrule End X Ferrule End
- Element:
- Dual
- Interrupt Rating:
- 300000 Amp (RMS Symmetrical UL), 100000 Amp (DC)
- Response Time:
- 10 S at 500%
- Size:
- 0.81 In Diameter X 2.25 In Length
- Standard:
- UL, CSA C22.2, CE
- Sub Brand:
- Low-Peak
- Type:
- Current Limiting, Time Delay
- Voltage Rating:
- 600//300 VAC//VDC
KWS-R-10
$46.37 /ea
Eaton Bussmann series KWS-R fuse, LIMITRON Fast-acting fuse, Photovoltaic systems, inverters, panelboards, 10 A, Class RK1, Non-indicating, 200 kAIC at 600 Vac, Standard, 600 V
| Attributed Data | Included |
|---|---|
| Class | RK-1 Yes |
| Dimensions | 5.0000 IN X 0.8100 IN X 0.8100 IN Yes |
| Interrupt Rating | 200 kAIC at 600 Vac Yes |
| Standard | CE Marked Yes |
| Sub Brand | Bussmann Series Yes |
| Type | Fuse Yes |
KWS-R-15
$46.37 /ea
Eaton Bussmann series KWS-R fuse, LIMITRON Fast-acting fuse, Photovoltaic systems, inverters, panelboards, 15 A, Class RK1, Non-indicating, 200 kAIC at 600 Vac, Standard, 600 V
| Attributed Data | Included |
|---|---|
| Class | RK-1 Yes |
| Dimensions | 5.0000 IN X 0.8100 IN X 0.8100 IN Yes |
| Interrupt Rating | 200 kAIC at 600 Vac Yes |
| Standard | CE Marked Yes |
| Sub Brand | Bussmann Series Yes |
| Type | Fuse Yes |
KWS-R-20
$46.80 /ea
Eaton Bussmann series KWS-R fuse, LIMITRON Fast-acting fuse, Photovoltaic systems, inverters, panelboards, 20 A, Class RK1, Non-indicating, Ferrule end x ferrule end, 100 kAIC at 600 Vdc,200 kAIC at 600 Vac, Standard, 600 V, 600 Vdc
| Attributed Data | Included |
|---|---|
| Class | RK-1 Yes |
| Connection | Ferrule end x ferrule end Yes |
| Dimensions | 5.0000 IN X 0.8100 IN X 0.8100 IN Yes |
| Interrupt Rating | 200 kAIC at 600 Vac100 kAIC at 600 Vdc Yes |
| Size | 0.81 In Diameter X 5.00 In Length Yes |
| Standard | CE Marked Yes |
| Sub Brand | Bussmann Series Yes |
| Type | Fuse Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
KWS-R-10
Eaton Bussmann series KWS-R fuse, LIMITRON Fast-acting fuse, Photovoltaic systems, inverters, panelboards, 10 A, Class RK1, Non-indicating, 200 kAIC at 600 Vac, Standard, 600 V
$46.37 / EA
|
KWS-R-15
Eaton Bussmann series KWS-R fuse, LIMITRON Fast-acting fuse, Photovoltaic systems, inverters, panelboards, 15 A, Class RK1, Non-indicating, 200 kAIC at 600 Vac, Standard, 600 V
$46.37 / EA
|
KWS-R-20
Eaton Bussmann series KWS-R fuse, LIMITRON Fast-acting fuse, Photovoltaic systems, inverters, panelboards, 20 A, Class RK1, Non-indicating, Ferrule end x ferrule end, 100 kAIC at 600 Vdc,200 kAIC at 600 Vac, Standard, 600 V, 600 Vdc
$46.80 / EA
|
|
| Attributed Data | |||
| Amperage Rating | 10 A 10 A | 15 A 15 A | 20 A 20 A |
| Class | RK-1 RK-1 | ||
| Connection | Ferrule end x ferrule end Ferrule end x ferrule end | ||
| Dimensions | 5.0000 IN X 0.8100 IN X 0.8100 IN 5.0000 IN X 0.8100 IN X 0.8100 IN | ||
| Interrupt Rating | 200 kAIC at 600 Vac 200 kAIC at 600 Vac | 200 kAIC at 600 Vac100 kAIC at 600 Vdc 200 kAIC at 600 Vac100 kAIC at 600 Vdc | |
| Size | 0.81 In Diameter X 5.00 In Length 0.81 In Diameter X 5.00 In Length | ||
| Standard | CE Marked CE Marked | ||
| Sub Brand | Bussmann Series Bussmann Series | ||
| Type | Fuse Fuse | ||
| Voltage Rating | 600 V 600 V | 600 VAC//VDC 600 VAC//VDC | |
