MC1224B1125ESC
SKU: MC1224B1125ESC
MPN: MC1224B1125ESC
Key specs
View all- Amperage Rating
- 125 A
- Size
- 1
- Type
- METERLOADCENTER-MAINDISCONNECTCOMBINATION
- Voltage Rating
- 120 V
Description
Product overview

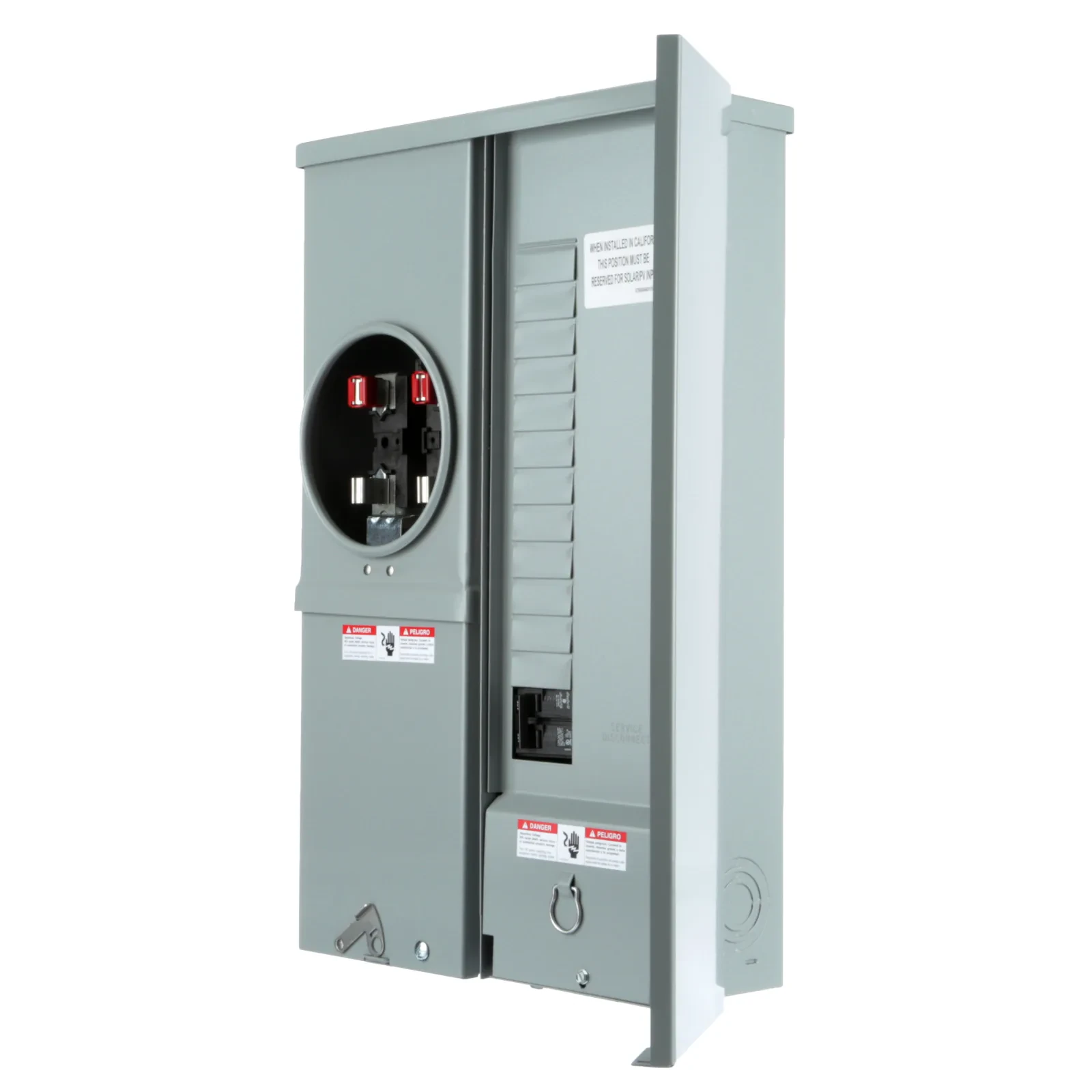

SIEMENS LOW VOLTAGE METER LOAD CENTER COMBINATION. FACTORY INSTALLED MAIN BREAKER 12 (1 INCH) SPACES INTERIOR ALLOWING MAX 24 CIRCUITS. 4-JAW METER / 1-PHASE SYSTEM RATED 125A. SPECIAL FEATURES OH/UG FEED, RING TYPE COVER, SURFACE MOUNTING, EUSERC APPROVED
SIEMENS LOW VOLTAGE METER LOAD CENTER COMBINATION. FACTORY INSTALLED MAIN BREAKER 12 (1 INCH) SPACES INTERIOR ALLOWING MAX 24 CIRCUITS. 4-JAW METER / 1-PHASE SYSTEM RATED 125A. SPECIAL FEATURES OH/UG FEED, RING TYPE COVER, SURFACE MOUNTING, EUSERC APPROVED
Manufacturer highlights
Additional manufacturer notes
- Short name
- S-A
- Feed description
- S-A MC1224B1125ESC MC 12S/24C 125A
- Invoice description
- MC 12S/24C 125A 4J OH/UG RG SUR EU
Specifications
- UPC
- 040892996821
- UNSPSC
- 39121102
- Country of Origin
- MX
- Amperage Rating
- 125 A
- Size
- 1
- Type
- METERLOADCENTER-MAINDISCONNECTCOMBINATION
- Voltage Rating
- 120 V
- Amperage Rating
- 125 A
- Cable Entry
- TOP/BOTTOM
- Frequency Rating
- TRUE
- Mounting
- SURFACE
- Number of terminals
- 3
- Phase
- 1
- Size
- 1
- Standard
- EUSERCCOMPLIANT
- Terminal
- 4-JAW
- Type
- METERLOADCENTER-MAINDISCONNECTCOMBINATION
- Voltage / between phase and phase / rated value
- 240 V
- Voltage Rating
- 120 V
