Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$785.00 / EA
manufacturer discounts
learn about discounts
- $1,400.46 for $1,500.00+
- $1,346.60 for $2,500.00+
- $1,292.74 for $3,500.00+

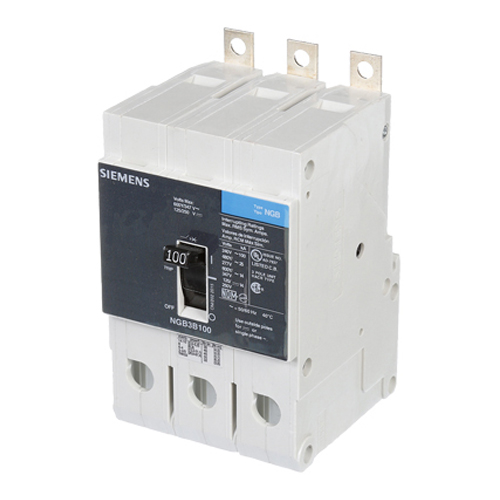

SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED NGB FRAME WITH STANDARD BREAKING CAPACITY. 100A 3-POLE (14KAIC AT 600Y/347V) (25KAIC AT 480Y/277V). SPECIAL FEATURES MOUNTS ON PANELBOARD,NO LUGS. DIMENSIONS (W x H x D) IN 3 x 5.4 x 2.8.
SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED NGB FRAME WITH STANDARD BREAKING CAPACITY. 100A 3-POLE (14KAIC AT 600Y/347V) (25KAIC AT 480Y/277V). SPECIAL FEATURES MOUNTS ON PANELBOARD,NO LUGS. DIMENSIONS (W x H x D) IN 3 x 5.4 x 2.8.
150
- UPC
- 783643553514
- UNSPSC
- 39121601
- Country of Origin
- MX
- Number Of Poles:
- 3
- Continuous current / rated value:
- 100 A
- Design of the overload release:
- THERMAL-MAGNETIC
- Design of the product:
- MOLDEDCASECIRCUITBREAKER
- Height [in]:
- 5.4 in
- Mounting type:
- PANELBOARDBUS
- Number Of Poles:
- 3
- Standard:
- UL/CSA/IEC/NOM
- Suitability for operation:
- ELECTRICALDISTRIBUTION
- Tripping characteristic class:
- STANDARD
- Voltage / between phase and Ground (GND) / rated value:
- 347 V
- Voltage / between phase and phase / rated value:
- 600 V
- Width [in]:
- 3 in
EB2F2W100
$3,551.46 /ea
Enclosed Circuit Breaker, Type Bolted Enclosure, Constructional Feature Explosionproof, Dust-Ignitionproof, Breaker Type FDB, Trip Type Thermal Magnetic, Voltage Rating 600 VAC/250 VDC, Current Rating 100 Ampere, Number of Poles 2, Hub Location Feed Through, Enclosure NEMA 3R/7B/7C/7D/9E/9F/9G, Enclosure Material Copper-Free Aluminum, Enclosure Finish 2 Coat Epoxy Enamel, Shaft/Handle Material Stainless Steel, Mounting Surface, Approval UL 1203, Applications Corrosive Atmosphere, Hazardous Location, Refinery, Chemical Plants, Petrochemical Plants, Processing Plants, Shaft/Bushing Material Stainless Steel
EB2F2W125
$5,172.97 /ea
Enclosed Circuit Breaker, Type Bolted Enclosure, Constructional Feature Explosionproof, Dust-Ignitionproof, Breaker Type FDB, Trip Type Thermal Magnetic, Voltage Rating 600 VAC/250 VDC, Current Rating 125 Ampere, Number of Poles 2, Hub Location Feed Through, Enclosure NEMA 3R/7B/7C/7D/9E/9F/9G, Enclosure Material Copper-Free Aluminum, Enclosure Finish 2 Coat Epoxy Enamel, Shaft/Handle Material Stainless Steel, Mounting Surface, Approval UL 1203, Applications Corrosive Atmosphere, Hazardous Location, Refinery, Chemical Plants, Petrochemical Plants, Processing Plants, Shaft/Bushing Material Stainless Steel
EB2F2W150
$5,172.97 /ea
Enclosed Circuit Breaker, Type Bolted Enclosure, Constructional Feature Explosionproof, Dust-Ignitionproof, Breaker Type FDB, Trip Type Thermal Magnetic, Voltage Rating 600 VAC/250 VDC, Current Rating 150 Ampere, Number of Poles 2, Hub Location Feed Through, Enclosure NEMA 3R/7B/7C/7D/9E/9F/9G, Enclosure Material Copper-Free Aluminum, Enclosure Finish 2 Coat Epoxy Enamel, Shaft/Handle Material Stainless Steel, Mounting Surface, Approval UL 1203, Applications Corrosive Atmosphere, Hazardous Location, Refinery, Chemical Plants, Petrochemical Plants, Processing Plants, Shaft/Bushing Material Stainless Steel
| Product Image |
|
|
|
|---|---|---|---|
|
EB2F2W100
Enclosed Circuit Breaker, Type Bolted Enclosure, Constructional Feature Explosionproof, Dust-Ignitionproof, Breaker Type FDB, Trip Type Thermal Magnetic, Voltage Rating 600 VAC/250 VDC, Current Rating 100 Ampere, Number of Poles 2, Hub Location Feed...
$3,551.46 / EA
|
EB2F2W125
Enclosed Circuit Breaker, Type Bolted Enclosure, Constructional Feature Explosionproof, Dust-Ignitionproof, Breaker Type FDB, Trip Type Thermal Magnetic, Voltage Rating 600 VAC/250 VDC, Current Rating 125 Ampere, Number of Poles 2, Hub Location Feed...
$5,172.97 / EA
|
EB2F2W150
Enclosed Circuit Breaker, Type Bolted Enclosure, Constructional Feature Explosionproof, Dust-Ignitionproof, Breaker Type FDB, Trip Type Thermal Magnetic, Voltage Rating 600 VAC/250 VDC, Current Rating 150 Ampere, Number of Poles 2, Hub Location Feed...
$5,172.97 / EA
|
|
