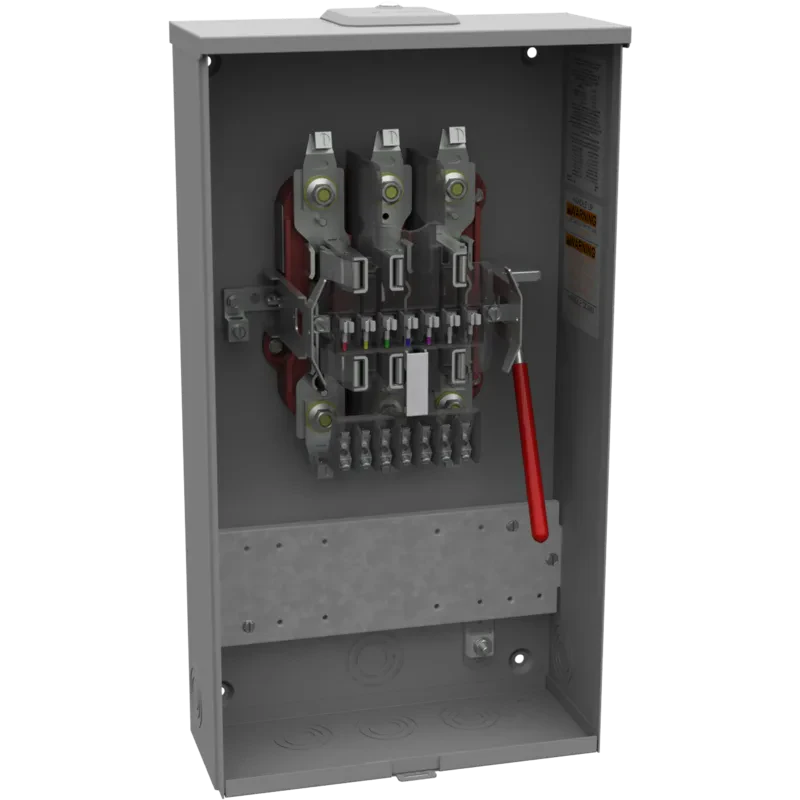

U4497-XL
SKU: U4497-XL
MPN: U4497-XL
Key specs
View all- Amperage Rating
- 20 Continuous Ampere
- Size
- 4.844L x 12W x 22H
- Type
- Ringless Meter Socket
- Voltage Rating
- 600 VAC
Description
Product overview
13 TERM RNGLS SML CLS PLT LVR BYPS TEST SW PROV
13 TERM RNGLS SML CLS PLT LVR BYPS TEST SW PROV
Manufacturer highlights
Additional manufacturer notes
- Short name
- MILB
- Feed description
- MILB U4497-XL 20A 13T RL LVR TS PRO
- Invoice description
- 20A 13T RL LVR TS PROV OU 20821
Specifications
- UPC
- 784572208216
- UNSPSC
- 39121102
- Country of Origin
- USA
- Amperage Rating
- 20 Continuous Ampere
- Size
- 4.844L x 12W x 22H
- Type
- Ringless Meter Socket
- Voltage Rating
- 600 VAC
- Amperage Rating
- 20 Continuous Ampere
- Bypass Type
- Lever Bypass
- Cable Entry
- Overhead or Underground
- Cutout Size
- No Main Breaker
- Enclosure
- G90 Galvanized Steel with Powder Coat Finish
- Equipment Ground
- 2 Barrel Ground Lug
- Frequency Rating
- 60 Hz
- Hub Opening
- Small Closing Plate
- Insulation
- Glass Polyester
- Jaw Quantity
- 13 Terminal
- Line Side Wire Range
- 14 - 2 AWG
- Load Side Wire Range
- 14 - 2 AWG
- Mounting
- Surface Mount
- Number of Meter Positions
- 1 Position
- Phase
- 3
- Size
- 4.844L x 12W x 22H
- Standard
- UL Listed;Type 3R
- Terminal
- Single Mechanical
- Type
- Ringless Meter Socket
- Voltage Rating
- 600 VAC
