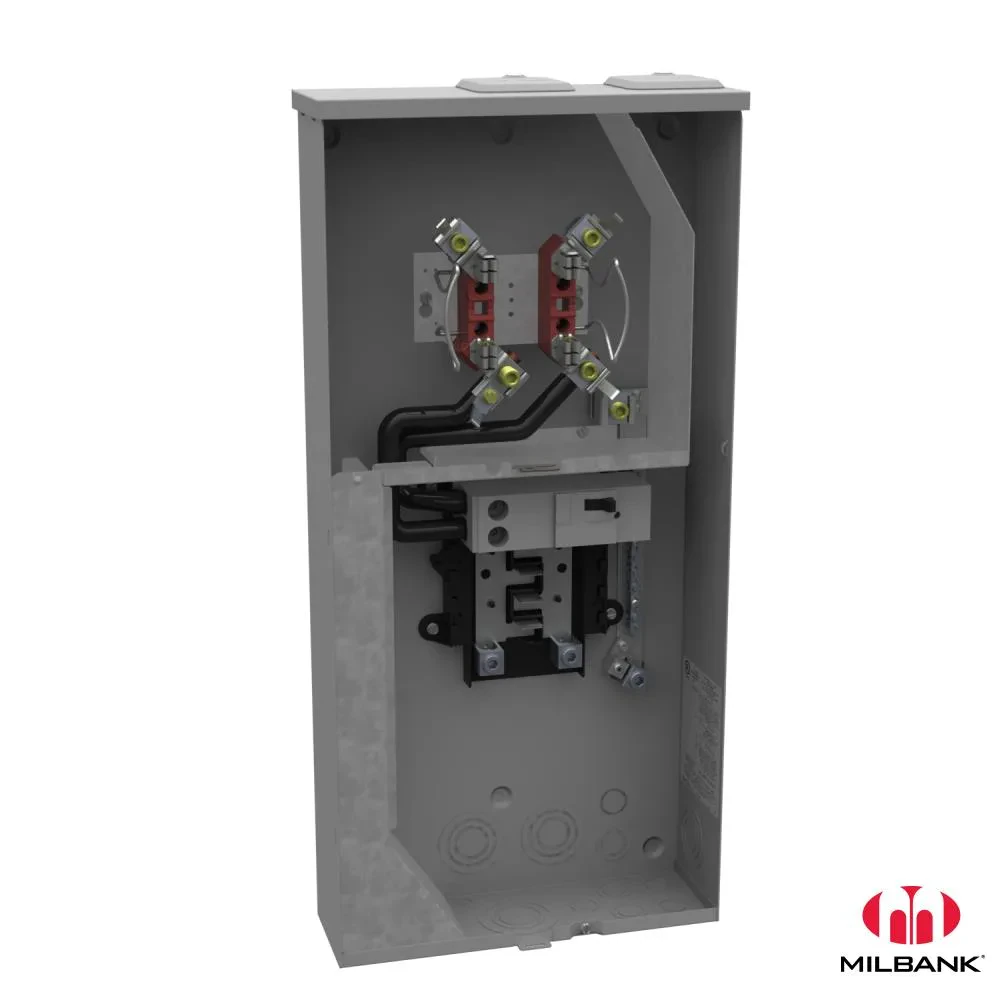

U5168-XTL-200-KK
4 TERM RNGLS 2 SML CLS PLTS 1-200 AMP MN BRKR 8 BRANCH CKT HRN BYPS
$425.52 / EA
23 available
Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
UA2717-YJCA
SKU: UA2717-YJCA
MPN: UA2717-YJCA
Key specs
View all- Amperage Rating
- 200 A
- Type
- UAS8/9
Description
Product overview
200A 4J RGLS 2POS NO BPS MS OH/UG CPL A14 2POS STL RINGLESS LARGE HUB OPEN 2GR ALNOX
200A 4J RGLS 2POS NO BPS MS OH/UG CPL A14 2POS STL RINGLESS LARGE HUB OPEN 2GR ALNOX
Manufacturer highlights
Additional manufacturer notes
- Short name
- S-A
- Feed description
- S-A UA2717-YJCA TALON 200A 4J RGLS
- Invoice description
- TALON 200A 4J RGLS 2POS NO BPS MS OH/UG
Specifications
- UPC
- 783643184619
- UNSPSC
- 39121102
- Country of Origin
- MX
- Amperage Rating
- 200 A
- Type
- UAS8/9
- Amperage Rating
- 200 A
- Depth [in]
- 24 in
- Height [in]
- 6 in
- Standard
- UL
- Type
- UAS8/9
- Voltage / between phase and phase / rated value
- 600 V
- Width [in]
- 14 in
Similar items
Compare alternates in this category before ordering.
Similar item

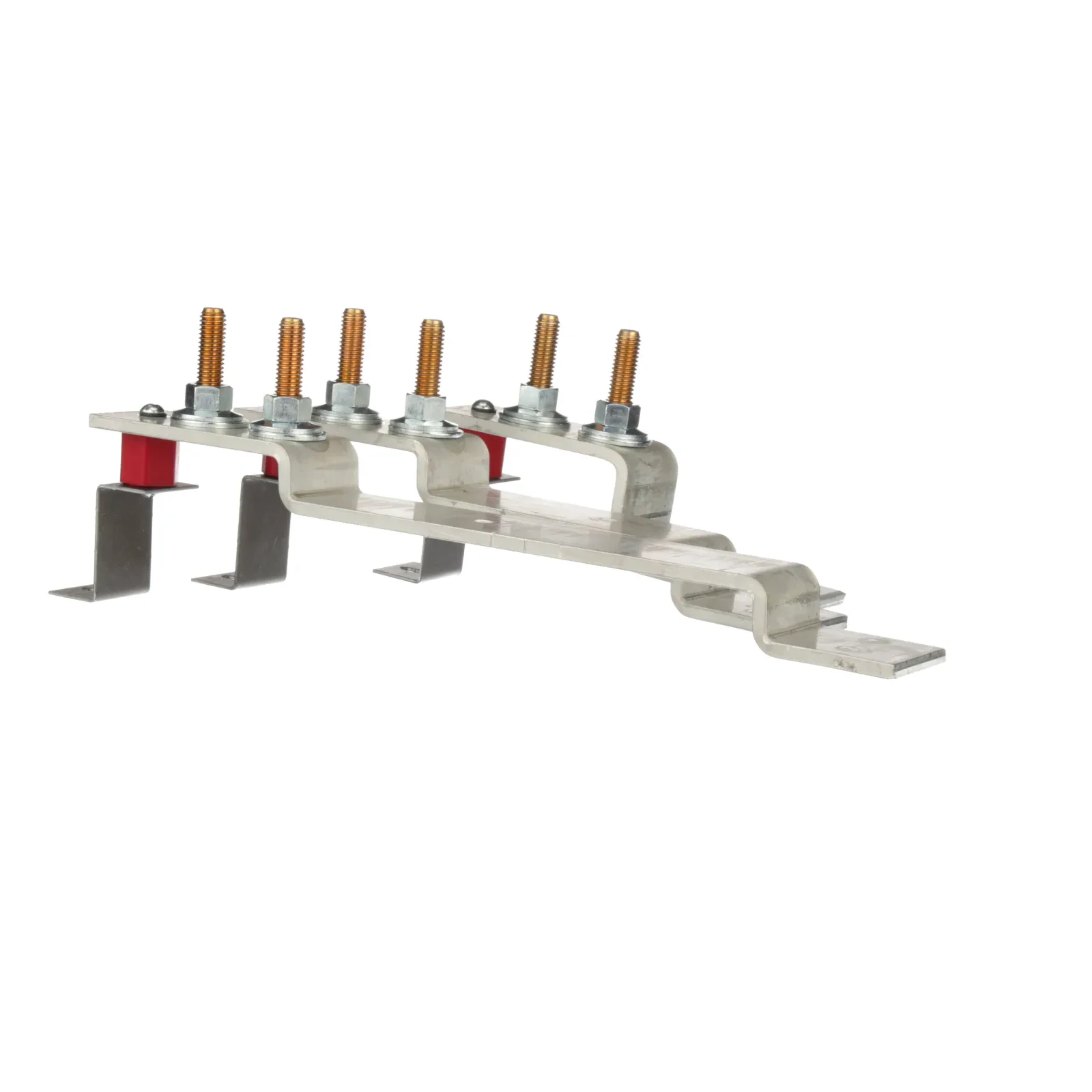

WPSK400
Siemens Low Voltage s Multi-Family Metering Line of Power Mod Accessories and Replacement Parts as part of the Power Mod Accessories and Rep...
$161.91 / EA
2 available
Similar item

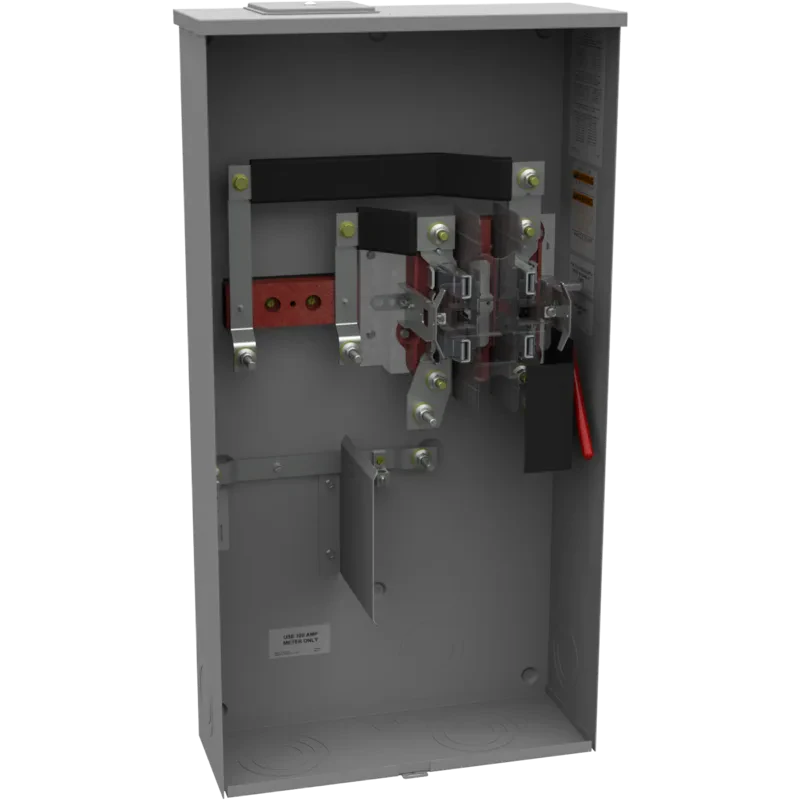

U2448-X-RGE
4 TERM RNGLS LRG CLS PLT LVR BYPS ROCHESTER GAS AND ELECTRIC
$555.38 / EA
2 available
Similar item

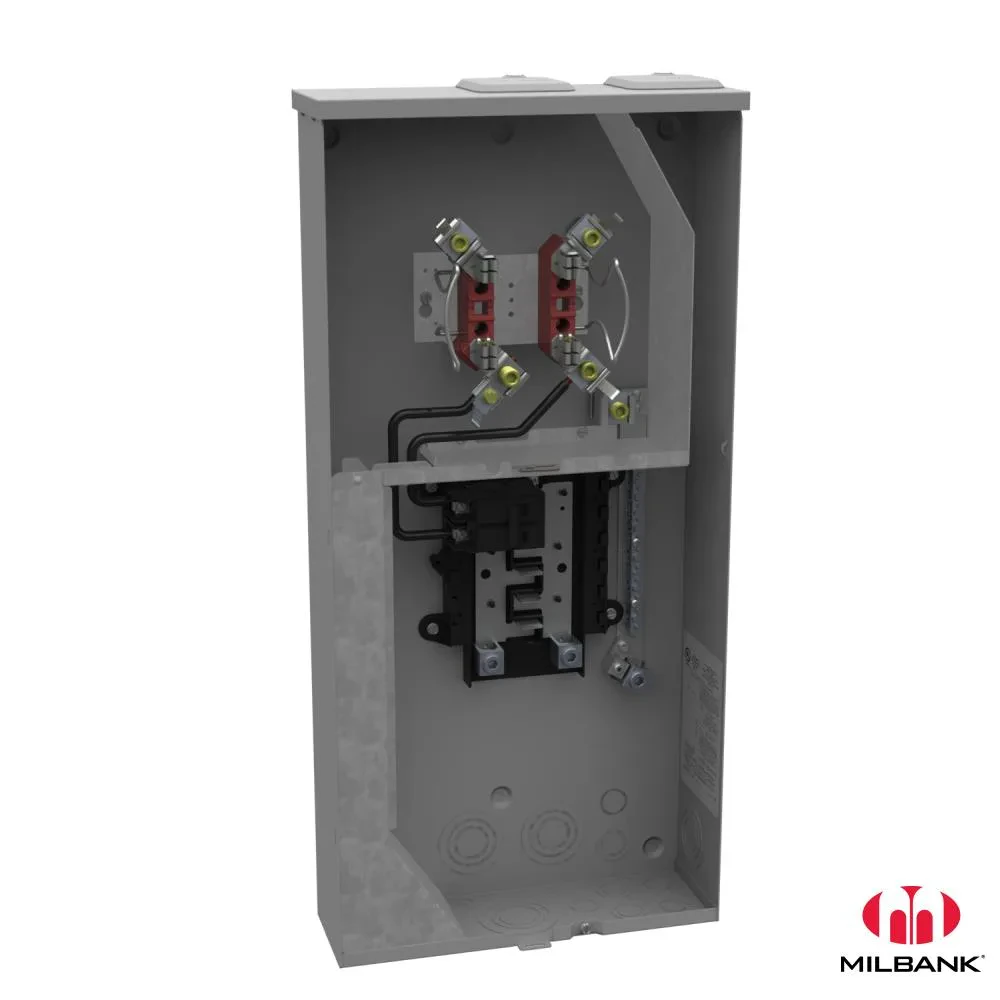

U5168-XTL-100-KK
4 TERM RNGLS 2 SML CLS PLTS 1-100 AMP MN BRKR 10 BRANCH CKT HRN BYPS
$361.43 / EA
2 available
Similar item

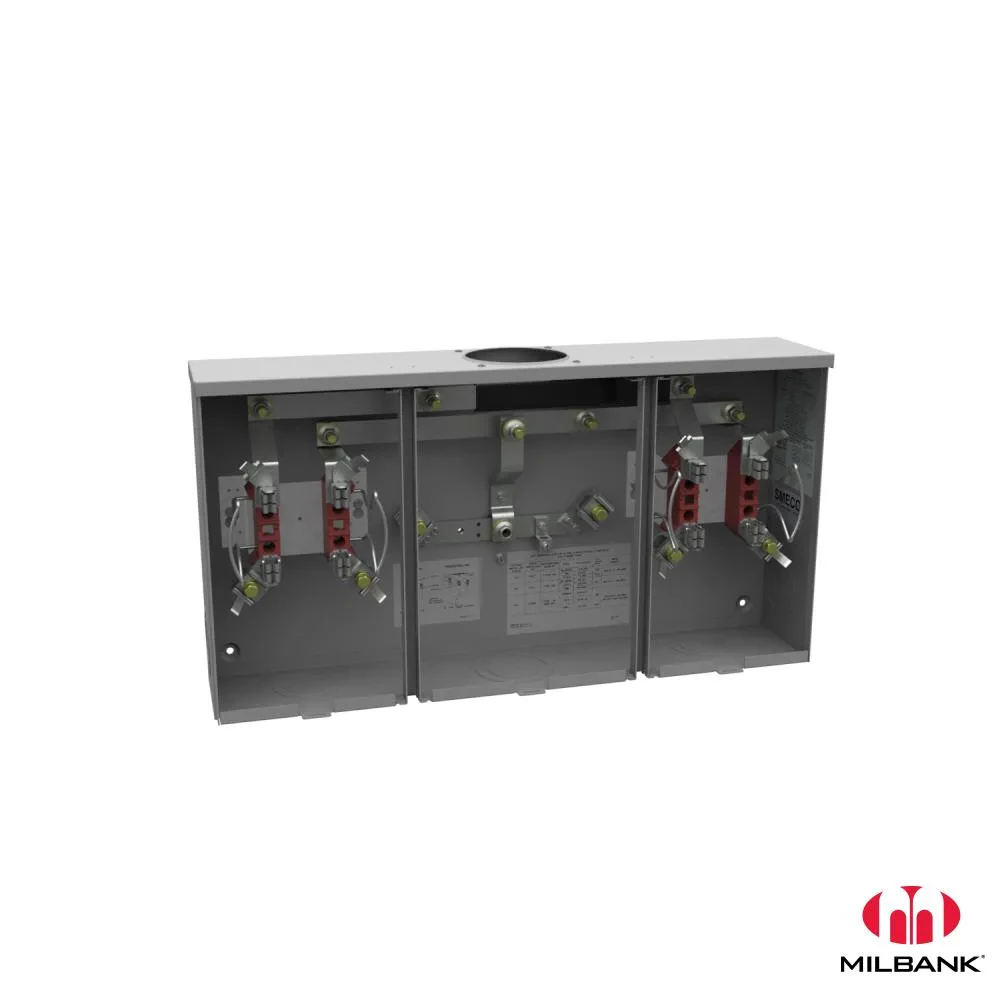

U1252-R-KK-RGE
