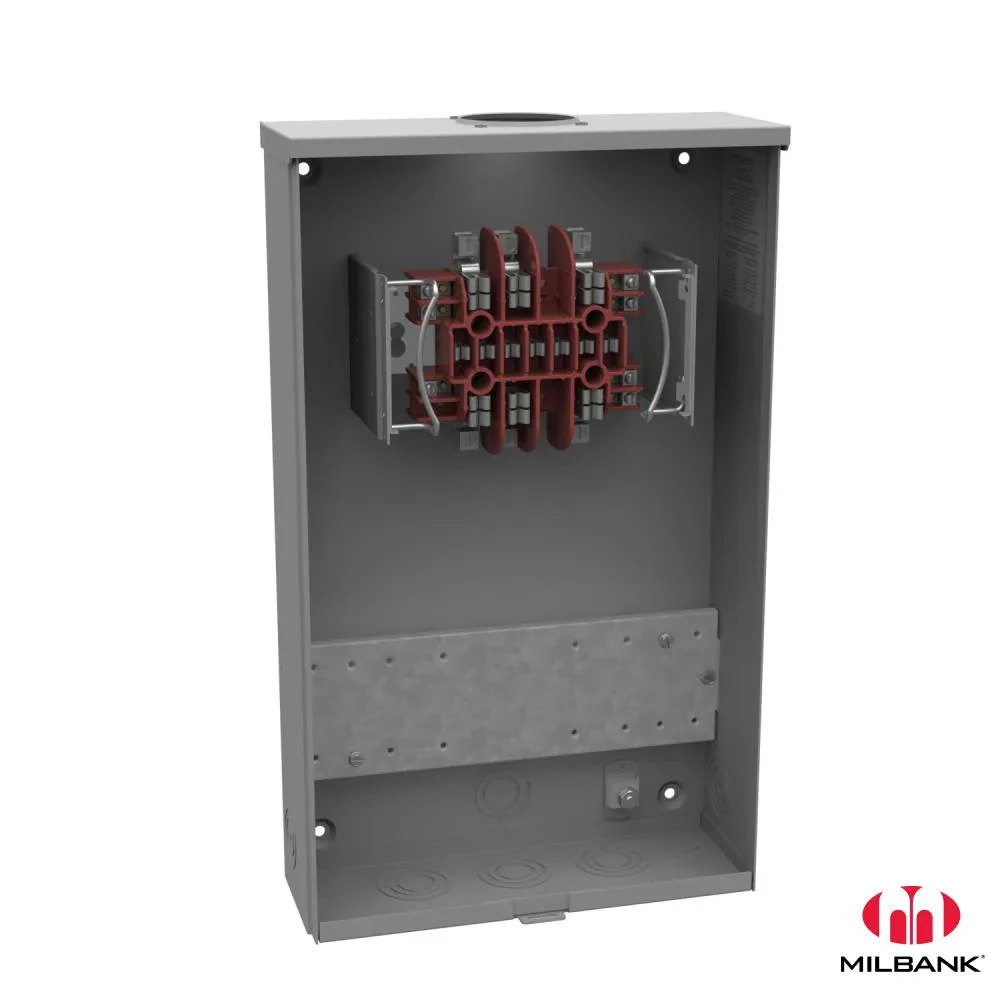

UC7445-RL
SKU: UC7445-RL
MPN: UC7445-RL
Key specs
View all- Amperage Rating
- 20 Continuous Ampere
- Size
- 4.125L x 12W x 20H
- Type
- Ringless Meter Socket
- Voltage Rating
- 600 VAC
Description
Product overview
13 TERM RNGLS SML HUB OPEN TEST SW PROV SGL COVER
13 TERM RNGLS SML HUB OPEN TEST SW PROV SGL COVER
Manufacturer highlights
Additional manufacturer notes
- Short name
- MILB
- Feed description
- MILB UC7445-RL 20A 13T RL TS PROV O
- Invoice description
- 20A 13T RL TS PROV OU 14497
Specifications
- UPC
- 784572144972
- UNSPSC
- 39121102
- Country of Origin
- USA
- Amperage Rating
- 20 Continuous Ampere
- Size
- 4.125L x 12W x 20H
- Type
- Ringless Meter Socket
- Voltage Rating
- 600 VAC
- Amperage Rating
- 20 Continuous Ampere
- Bypass Type
- No Bypass
- Cable Entry
- Overhead or Underground
- Cutout Size
- No Main Breaker
- Enclosure
- G90 Galvanized Steel with Powder Coat Finish
- Equipment Ground
- Ground Lug
- Frequency Rating
- 60 Hz
- Hub Opening
- Small Hub Opening
- Insulation
- Glass Polyester
- Jaw Quantity
- 13 Terminal
- Line Side Wire Range
- 12 - 10 AWG
- Load Side Wire Range
- 12 - 10 AWG
- Mounting
- Surface Mount
- Number of Meter Positions
- 1 Position
- Phase
- 3
- Size
- 4.125L x 12W x 20H
- Standard
- UL Listed;Type 3R
- Terminal
- Single Mechanical
- Type
- Ringless Meter Socket
- Voltage Rating
- 600 VAC
