WML23225RJ
SKU: WML23225RJ
MPN: WML23225RJ
Key specs
View all- Amperage Rating
- 225 A
- Size
- 2
- Type
- WMLCOMMERCIALMETERSTACK
- Voltage Rating
- 120 V
Description
Product overview

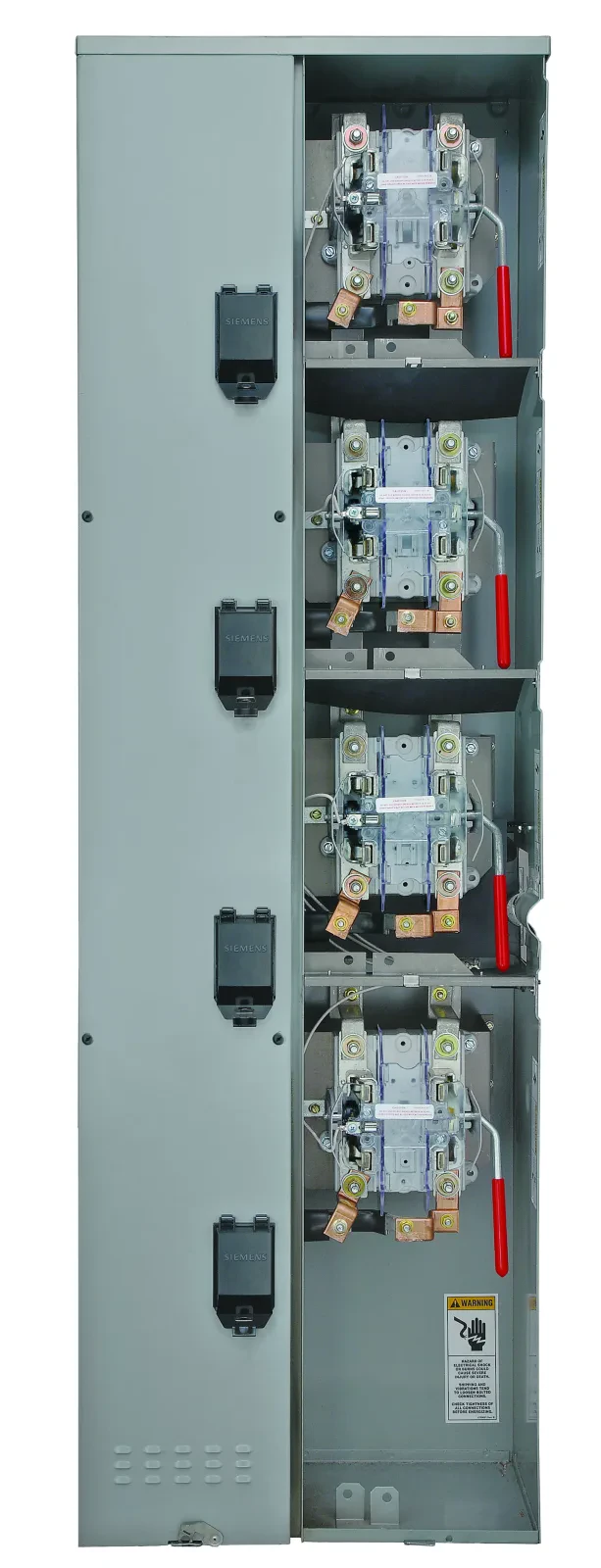

Siemens Low Voltage s Multi-Family Metering Line of Power Mod Lever Bypass Meter Stacks as part of the Power Mod Commercial Meter Stacks Group. Type POWER MOD Features FUSIBLE SWITCH, LEVER BYPASS, EXTRA JAW, RINGLESS Appn GARDEN - STYLE, METER RISE, HIGH RISE Std UL-67 V. Rating 240VAC A. Rating 225A Phase 3PH Size 40.750x23.500x9.688 No. Of Cutouts 4 Cutout Size 2,2-1/2,3,3-1/2,4 Cable Entry BOTTOM FEED Terminal QUICK CONNECT. Insulated. Mounting rails. Enclosure TYPE 3R
Siemens Low Voltage s Multi-Family Metering Line of Power Mod Lever Bypass Meter Stacks as part of the Power Mod Commercial Meter Stacks Group. Type POWER MOD Features FUSIBLE SWITCH, LEVER BYPASS, EXTRA JAW, RINGLESS Appn GARDEN - STYLE, METER RISE, HIGH RISE Std UL-67 V. Rating 240VAC A. Rating 225A Phase 3PH Size 40.750x23.500x9.688 No. Of Cutouts 4 Cutout Size 2,2-1/2,3,3-1/2,4 Cable Entry BOTTOM FEED Terminal QUICK CONNECT. Insulated. Mounting rails. Enclosure TYPE 3R
Manufacturer highlights
Additional manufacturer notes
- Short name
- S-A
- Feed description
- S-A WML23225RJ POWMOD WML 2G 7J 3PH
- Invoice description
- POWMOD WML 2G 7J 3PH I/O 225A
Specifications
- UPC
- 040892170702
- UNSPSC
- 39121102
- Country of Origin
- US
- Amperage Rating
- 225 A
- Size
- 2
- Type
- WMLCOMMERCIALMETERSTACK
- Voltage Rating
- 120 V
- Amperage Rating
- 225 A
- Frequency Rating
- TRUE
- Mounting
- SURFACE/SIEMENSQuickRoll
- Phase
- 3
- Size
- 2
- Special product feature
- LEVERBYPASS
- Standard
- UL67
- Sub Brand
- POWERMOD
- Terminal
- 7-JAW
- Type
- WMLCOMMERCIALMETERSTACK
- Voltage / between phase and phase / rated value
- 240 V
- Voltage Rating
- 120 V
