Videos & documents
Documents
100LET
SKU: 100LET
MPN: 100LET
Key specs
View all- Amperage Rating
- 100 A
- Size
- 56.00 mm Length X 17.70 mm Width X 19.10 mm Height
- Type
- High speed British standard fuse
- Voltage Rating
- 240 V
Description
Product overview

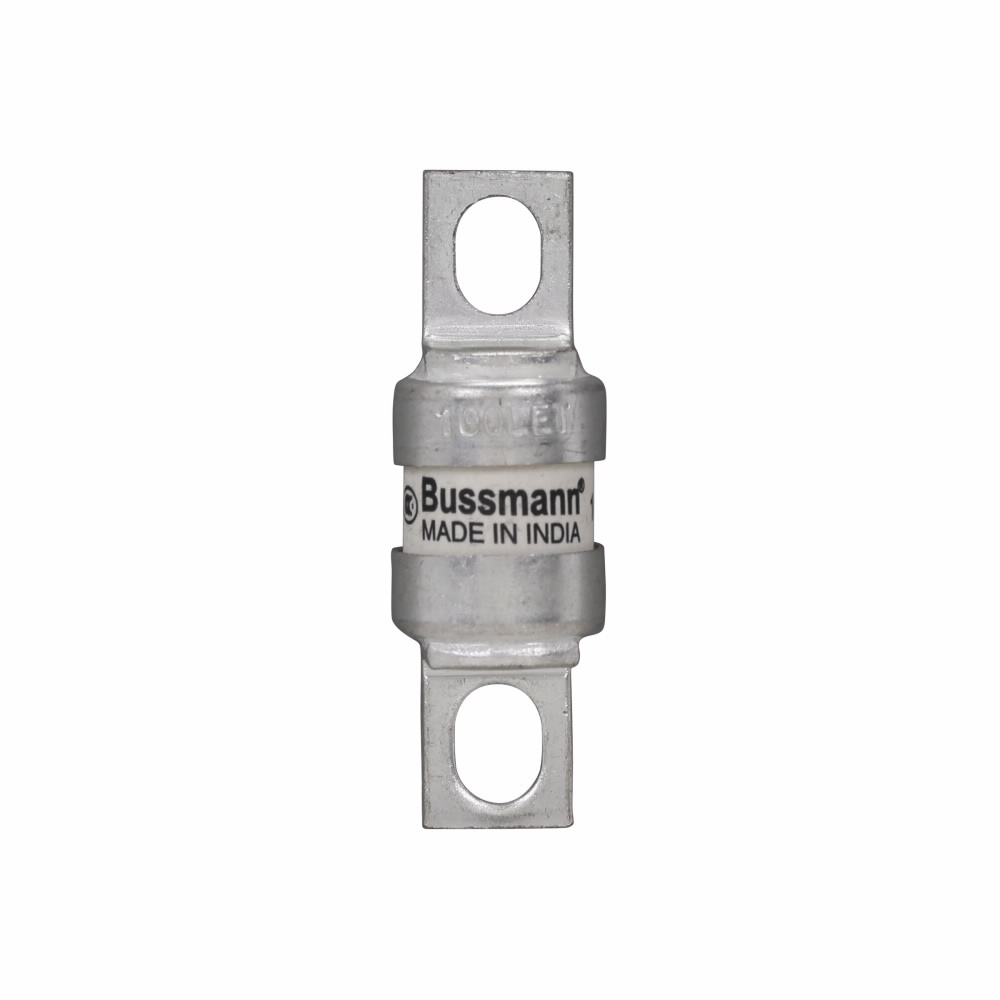

Eaton Bussmann series high speed British standard fuse, 100A, 200 kAIC, None, Fuse, Blade end X blade end, Stud - 100LET
Eaton Bussmann series high speed British standard fuse, 100A, 200 kAIC, None, Fuse, Blade end X blade end, Stud - 100LET
Manufacturer highlights
Eaton's Bussmann British standard BS88 fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of ra...
Eaton's Bussmann British standard BS88 fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current and voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.
Additional manufacturer notes
- Short name
- BUSS
- Feed description
- BUSS 100LET 100A 240V AC BS88 FUSE
- Invoice description
- 100A 240V AC BS88 FUSE
Specifications
- UPC
- 051712830294
- UNSPSC
- 39121628
- Country of Origin
- IN
- Amperage Rating
- 100 A
- Size
- 56.00 mm Length X 17.70 mm Width X 19.10 mm Height
- Type
- High speed British standard fuse
- Voltage Rating
- 240 V
- Amperage Rating
- 100 A
- Connection
- Blade end x blade end
- Dimensions
- 2.1654 IN X 0.7087 IN X 0.7087 IN
- Interrupt Rating
- 200 kAIC
- Mounting
- Stud
- Size
- 56.00 mm Length X 17.70 mm Width X 19.10 mm Height
- Standard
- IEC Rated ,UL Recognized,CE Marked,RoHS Compliant
- Sub Brand
- Bussmann Series
- Type
- High speed British standard fuse
- Voltage Rating
- 240 V
