$89.39 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

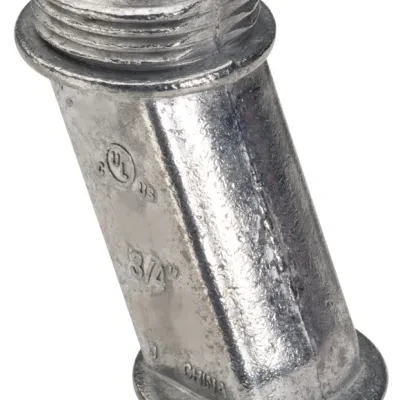

4" Rigid Offset Nipples, 3/4" Offset HDG - Malleable Iron
4" Rigid Offset Nipples, 3/4" Offset HDG - Malleable Iron
Topaz�s Rigid Offset Nipple design enables easier direction or slight elevation change of EMT condui...150
Topaz�s Rigid Offset Nipple design enables easier direction or slight elevation change of EMT conduits entering boxes or enclosures; offsets the axis of raceways by 3/4�. Strengthened by our Dip Galvanizing process to assure performance and integrity; smooth interior facilitates wire pulling and avoids abrasion damage. Topaz applies the hot dip galvanizing process to conduit bodies, covers and accompanying components such as bushings, couplings and supports. The galvanizing process protects from corrosion induced by harsh environmental conditions, instilling end user confidence in the quality, reliability and longevity of the fitting.Available in sizes from 1/2'� to 4�; conforms to finish thickness ASTM A123/123M; UL514B listed; NEMA FB1 compliant and meets Federal Spec. A-A-50553.
- NPSM thread: Smooth inside surface to facilitate wire pulling free of damage
- NPSM thread: Smooth inside surface to facilitate wire pulling free of damage
- UPC
- 751338867246
- UNSPSC
- 39131718
- Country of Origin
- MUL
- Material:
- Malleable Iron
- Size:
- 4 IN
- Type:
- Rigid Offset Nipple
- Connection:
- 4 NPSM IN
- Connectors (IN):
- 4 NPSM IN
- Diameter (IN):
- 4.96 IN
- Finish:
- Hot-Dip Galvanize
- Flexibility:
- Rigid Conduit
- Installation Type:
- Threaded
- Label Description:
- RIGID OFFSET NIPPLES-HOT DIP GALVANIZED
- Length:
- 5.04 in
- Material:
- Malleable Iron
- Nominal Length Inches:
- 5.04
- Outside Diameter:
- 4.96 in
- Size:
- 4 IN
- Size (IN):
- 4" IN
- Size (trade) (IN):
- 4 IN
- Standard:
- UL E148716, ASTM A123/123M, UL514B, RoHS Compliant, NEMA FB1, Federal Specification A-A-50553
- Trade Size:
- 4 in
- Type:
- Rigid Offset Nipple
