1221PWGY
SKU: 1221PWGY
MPN: 1221PWGY
Key specs
View all- Action
- Positive Snap
- Amperage Rating
- 20 A
- Color
- Gray
- Number Of Poles
- 1
- Size
- 4.18 in x 1.3 in x 1.83 in
- Type
- Toggle
Description
Product overview

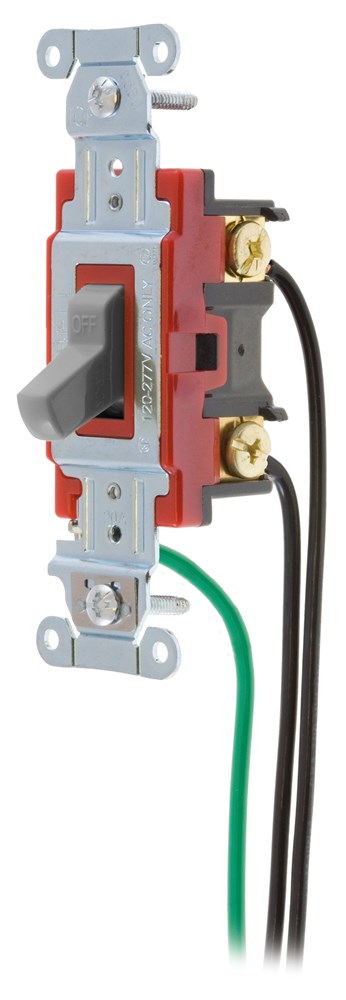

Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Single Pole, 20A120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Gray
Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Single Pole, 20A120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Gray
Manufacturer highlights
Additional manufacturer notes
- Short name
- HWDK
- Feed description
- HWDK 1221PWGY SWITCH, CAT#1221GY W/
- Invoice description
- SWITCH, CAT#1221GY W/8" LEADS
Specifications
- UPC
- 783585188072
- UNSPSC
- 39122211
- Country of Origin
- CN
- Action
- Positive Snap
- Amperage Rating
- 20 A
- Color
- Gray
- Number Of Poles
- 1
- Size
- 4.18 in x 1.3 in x 1.83 in
- Type
- Toggle
- Voltage Rating
- 120 to 277 VAC
- Wattage
- 5,540 W
- Action
- Positive Snap
- Actuator
- Toggle
- Amperage Rating
- 20 A
- Brand ID
- WIRING DEVICE-KELLEMS
- Carton Quantity
- 50
- Catalog Number
- 1221PWGY
- Color
- Gray
- Connection
- Back and Side Wired
- Contact Configuration
- Two Position
- Contact Rating
- Per UL 20
- Current / Amperage Rating
- 20 A
- Description - Long
- Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Single Pole, 20A120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Gray
- Description - Short
- Switches and Lighting Controls, Hubbell- PRO Series, General Purpose AC, Single Pole, 20A120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Gray
- EU RoHS Indicator
- No
- Enclosure
- None
- Environmental Conditions
- Indoor Dry unless protected by additional means
- FEATURES - Bullets
- Steel, zinc plated bridge is corrosion resistant;Color Coded by Amperage makes inspection easy even when installed;Strip gauge for accurate wiring
- FV_Voltage Rating Description
- 120-277 VAC
- Insulation
- None
- Mounting
- Screw Mount
- Number Of Poles
- 1
- Operating Cycles
- 50k
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C,Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
- Product Name
- 1221PWGY
- Size
- 4.18 in x 1.3 in x 1.83 in
- Standard
- UL Listed
- Sub Brand
- AC Toggle Switches
- Temperature Rise - Max.
- 30°C maximum at rated current
- Type
- Toggle
- UPC
- 783585188072
- Voltage Rating
- 120 to 277 VAC
- Voltage Rating Description
- 120-277 VAC
- Wattage
- 5,540 W
