$26.11 / EA
manufacturer discounts
learn about discounts
- $23.50 for $300.00+
- $22.38 for $500.00+
- $21.45 for $1,000.00+
Local stock: 0
Lead time:
over 7 working days

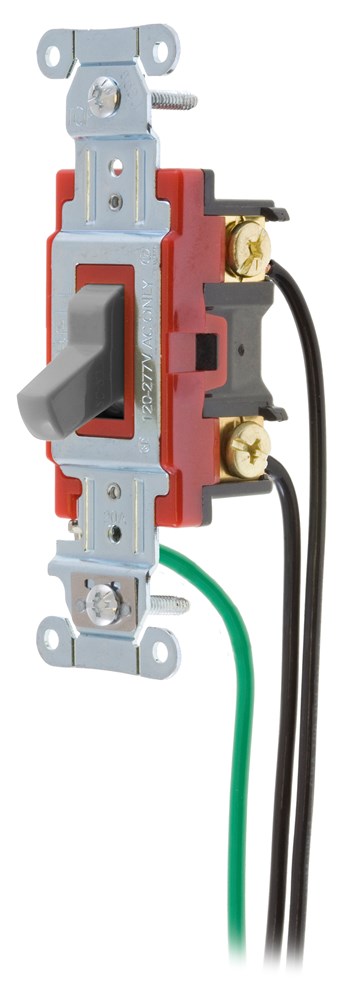

Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Four Way, 20A 120/277VAC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Gray
Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Four Way, 20A 120/277VAC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Gray
150
- UPC
- 783585188317
- UNSPSC
- 39122211
- Country of Origin
- CN
- Action:
- DPDT
- Amperage Rating:
- 20 A
- Color:
- Gray
- Number Of Poles:
- 2
- Size:
- 4.18 in x 1.3 in x 1.83 in
- Type:
- Toggle
- Voltage Rating:
- 120 to 277 VAC
- Wattage:
- 5,540 W
- Action:
- DPDT
- Actuator:
- Toggle
- Amperage Rating:
- 20 A
- Brand ID:
- WIRING DEVICE-KELLEMS
- Catalog Number:
- 1224PWGY
- Color:
- Gray
- Connection:
- Back and Side Wired
- Contact Configuration:
- Two Position
- Contact Rating:
- Per UL 20
- Current / Amperage Rating:
- 20 A
- Current Rating:
- 20 A
- Description - Long:
- Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Four Way, 20A 120/277VAC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Gray
- Description - Short:
- Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Four Way, 20A 120/277VAC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Gray
- EU RoHS Indicator:
- No
- Enclosure:
- None
- Environmental Conditions:
- Indoor Dry unless protected by additional means
- FEATURES - Bullets:
- Steel, zinc plated bridge is corrosion resistant;Color Coded by Amperage makes inspection easy even when installed;Strip gauge for accurate wiring
- Insulation:
- None
- Mounting:
- Screw Mount
- Number Of Poles:
- 2
- Operating Cycles:
- 50k
- Operating Temperature:
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance:
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C,Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
- Product Name:
- 1224PWGY
- Series:
- Heavy Duty
- Size:
- 4.18 in x 1.3 in x 1.83 in
- Standard:
- UL Listed
- Sub Brand:
- AC Toggle Switches
- Temperature Rise - Max.:
- 30°C maximum at rated current
- Type:
- Toggle
- UPC:
- 783585188317
- Voltage Rating:
- 120 to 277 VAC
- Voltage Rating Description:
- 120-277 VAC
- Wattage:
- 5,540 W
Recently Viewed
-
1224PWGY
BRYANT ELECTRIC
Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Four Way, 20A 120/277VAC, Back and Side Wired, Pre-Wired wit...
See more details -
NIOB-2RG30QBB
NORA LIGHTING
Unfortunately, we do not have a description available for NIOB-2RG30QBB. Please call (800) 462-773...
See more details -
52BM9V3D
SIEMENS INDUSTRY, INC.
30MM BlackMax, Epoxy Coated Corrosion Resistant Complete Metal Unit Pushbutton Non-Illuminated Mushroom Head Cap, 2 1/2 (63.5 mm) Plastic, Green 2 Pos...
See more details -

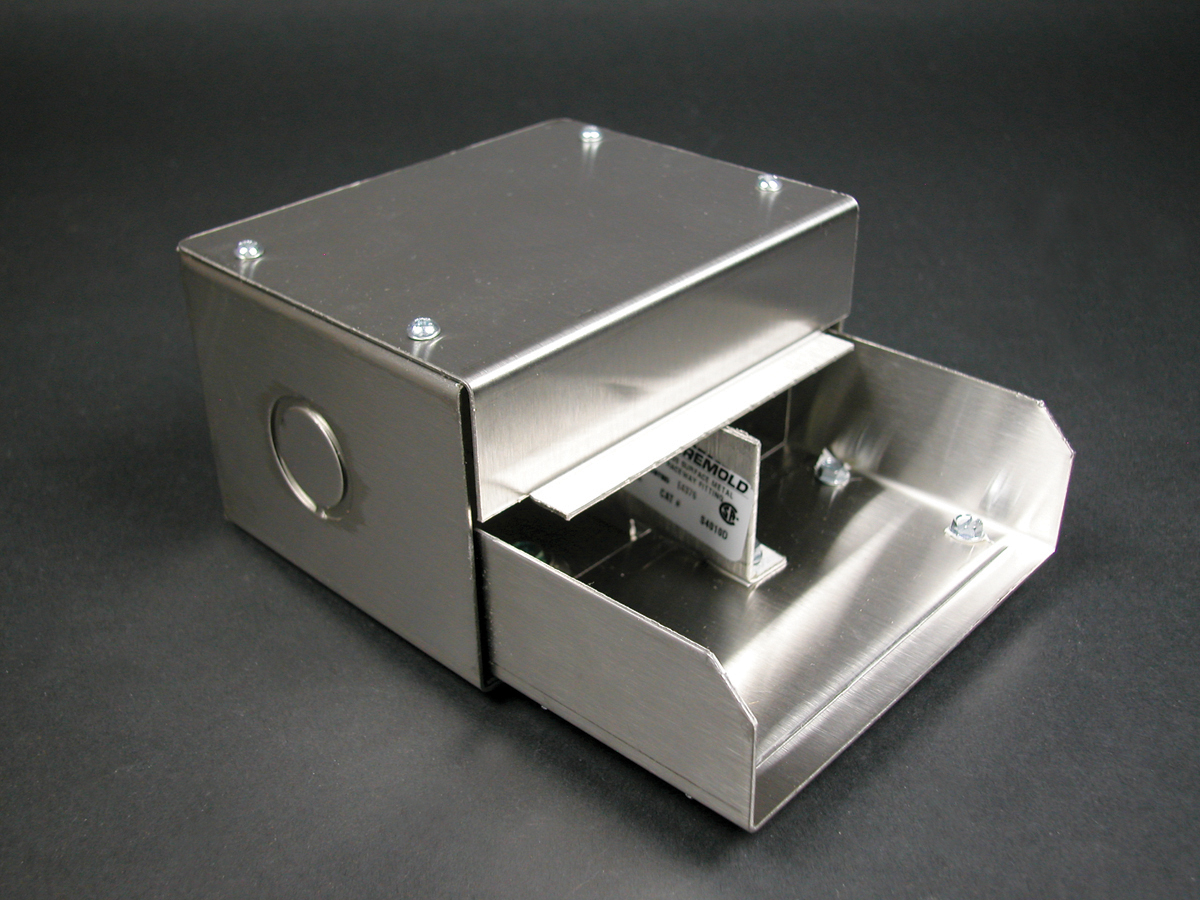

WM S4010D
