126

sku: 126-TOPAZ

Manufacturer
Topaz Electric
Category
Beam Clamps

$3.53 / EA

In stock (0)
Lead time: over 7 days
may be longer on small orders

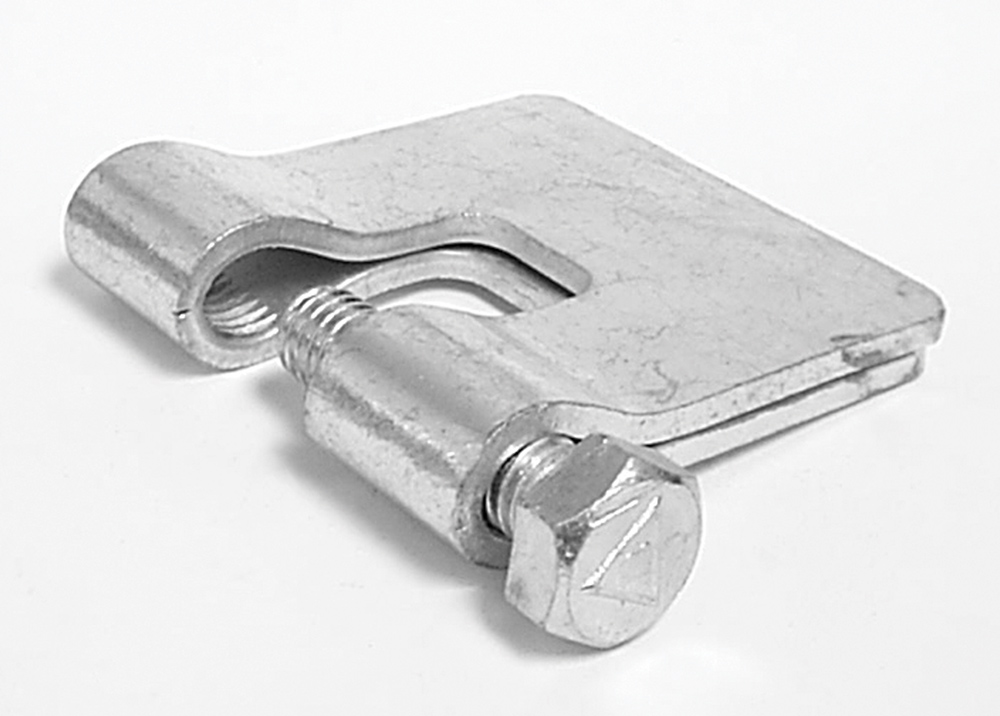

3/8" - 16 I-Beam Steel C Clamps

3/8" - 16 I-Beam Steel C Clamps

Designed to support vertical loads,Topaz�s steel Beam Clamps are machine tapped for use with rods. R...150

Designed to support vertical loads,Topaz�s steel Beam Clamps are machine tapped for use with rods. Recommended for use as a structural attachment to metal beams, channels and angle irons for the support of boxes, enclosures and fixtures.

  • Clamp is tapped for rod
  • Clamp is tapped for rod
UPC
751338751330
UNSPSC
31162905
Country of Origin
MUL
Material:
Steel
Size:
3/4 IN
Type:
C Clamp
For Use With:
Hanging & Support Devices
Height:
2.49 IN
Label Description:
I-BEAM CLAMP
Length:
2.49 in
Material:
Steel
Nominal Length Inches:
1.47
Opening Size:
0.73 IN
Rod Size:
3/8 - 16 IN
Rod Size (IN):
3/8 - 16 IN
Screw:
Yes
Set Screw:
Yes
Size:
3/4 IN
Size (IN):
3/8" - 16 IN
Standard:
UL 514B, UL File Number E174011, US Federal Specification Number A-A-50553, NEMA/ANSI FB-1, Military Specification: W-F-406D, W-F-406E, W-F-408D, W-S-610D
Type:
C Clamp
