12TKLEJ125
SKU: 12TKLEJ125
MPN: 12TKLEJ125
Key specs
View all- Amperage Rating
- 125 A
- Type
- Medium voltage DIN fuse
- Voltage Rating
- 12,000 V
Description
Product overview

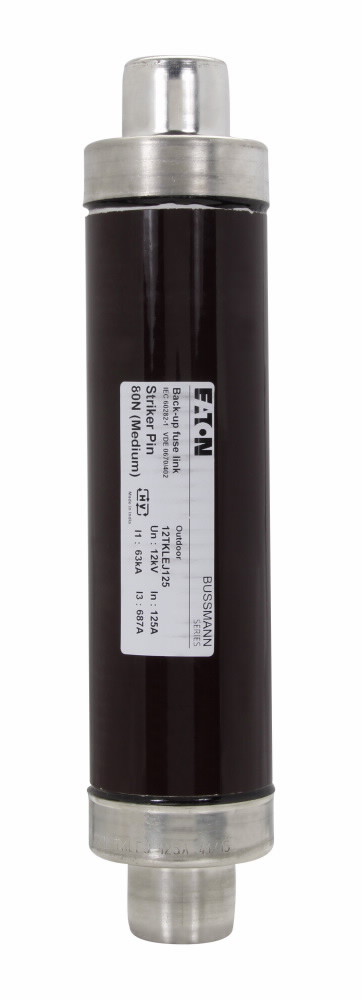

Fuse-link, medium voltage, 125 A, AC 12 kV, 3", 76 x 292 mm, back-up, DIN, with striker -12TKLEJ125
Fuse-link, medium voltage, 125 A, AC 12 kV, 3", 76 x 292 mm, back-up, DIN, with striker -12TKLEJ125
Manufacturer highlights
Eaton's Bussmann medium voltage DIN full range and back-up fuses offer an excellent transformer protection. They are available with or without striker...
Eaton's Bussmann medium voltage DIN full range and back-up fuses offer an excellent transformer protection. They are available with or without striker. They comply to the dimensional standard DIN 43625, VDE 0670 and IEC 60282-1. They are suitable for indoor and outdoor use.
Additional manufacturer notes
- Short name
- BUSS
- Feed description
- BUSS 12TKLEJ125 12KV 125A 3"DIN BRO
- Invoice description
- 12KV 125A 3"DIN BROWN RESIN SEAL FUSE
Specifications
- UPC
- 051712186148
- UNSPSC
- 39121626
- Country of Origin
- MUL
- Amperage Rating
- 125 A
- Type
- Medium voltage DIN fuse
- Voltage Rating
- 12,000 V
- Amperage Rating
- 125 A
- Class
- Class back-up
- Dimensions
- 14.1732 IN X 3.1496 IN X 3.1496 IN
- Interrupt Rating
- 63 kAIC
- Standard
- VDE ,UL,RoHS Compliant,Contact factory
- Sub Brand
- Bussmann Series
- Type
- Medium voltage DIN fuse
- Voltage Rating
- 12,000 V
