Double Snap Lock BX Connector
Double Snap Lock BX Connector
Topaz�s line of economical and efficient Snap Lock Connectors enable fast, two step tool free instal...150
Topaz�s line of economical and efficient Snap Lock Connectors enable fast, two step tool free installations of metal clad or armored cable to steel boxes or enclosures. Featuring a pre-assembled and secure anti-short bushing; fabricated from corrosion resistant and durable zinc die cast; the BX connector is easily removed without tools and is reusable. 3/8� size will fit 1/2� knockout; polycarbonate bushing; UL listed.
- Provides significant labor savings when installing metal clad or armored cable to steel boxes or enclosures
- No tools are required when assembling to the cable or box
- The anti-short bushing is pre-assembled and will not fall out during transit or installation
- The double snap lock BX connector can easily be removed without tools
- Provides significant labor savings when installing metal clad or armored cable to steel boxes or enclosures
- No tools are required when assembling to the cable or box
- The anti-short bushing is pre-assembled and will not fall out during transit or installation
- The double snap lock BX connector can easily be removed without tools
- UPC
- 751338871212
- UNSPSC
- 39121419
- Country of Origin
- MUL
- Material:
- Die Cast Zinc, Spring Steel, Polycarbonate Bushing
- Size:
- 3/8 IN
- Type:
- Double Snap Lock BX Connector
- Connection:
- Double Snap Lock
- Connectors (IN):
- Double Snap Lock IN
- For Use With:
- Fits 1/2 IN Knockout, AL and Steel 3/8 IN RWFMC, AL and Steel AC 14-2 to 10-3, AL and Steel MC/MCI-A/HCF 14-2 to 10-3
- Height:
- 1.46 IN
- Label Description:
- BX CONNECTOR-DOUBLE SNAP LOCK
- Length:
- 1.03 IN
- Material:
- Die Cast Zinc, Spring Steel, Polycarbonate Bushing
- Size:
- 3/8 IN
- Size (IN):
- 3/8" IN
- Size (trade) (IN):
- 3/8" IN
- Standard:
- UL File Number E148716
- Type:
- Double Snap Lock BX Connector
Recently Viewed
-
-
-
17304
MELISSA LIGHTING
Unfortunately, we do not have a description available for 17304. Please call (800) 462-7733 fo...
See more details -
S3202
SATCO PRODUCTS

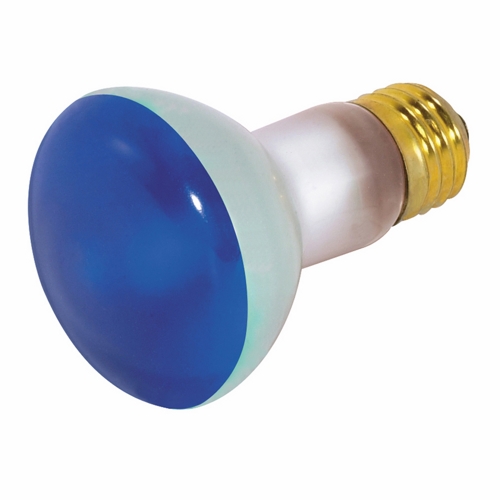

Incandescent Reflector Lamp, Designation: 50R20/B, 130 V, 50 WTT, R20 Shape, E26 Medium Base, Blue, CC-9 Filament, 2000 HR, 4 IN Length, 2-1/2 IN Diam...
