$115.95 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

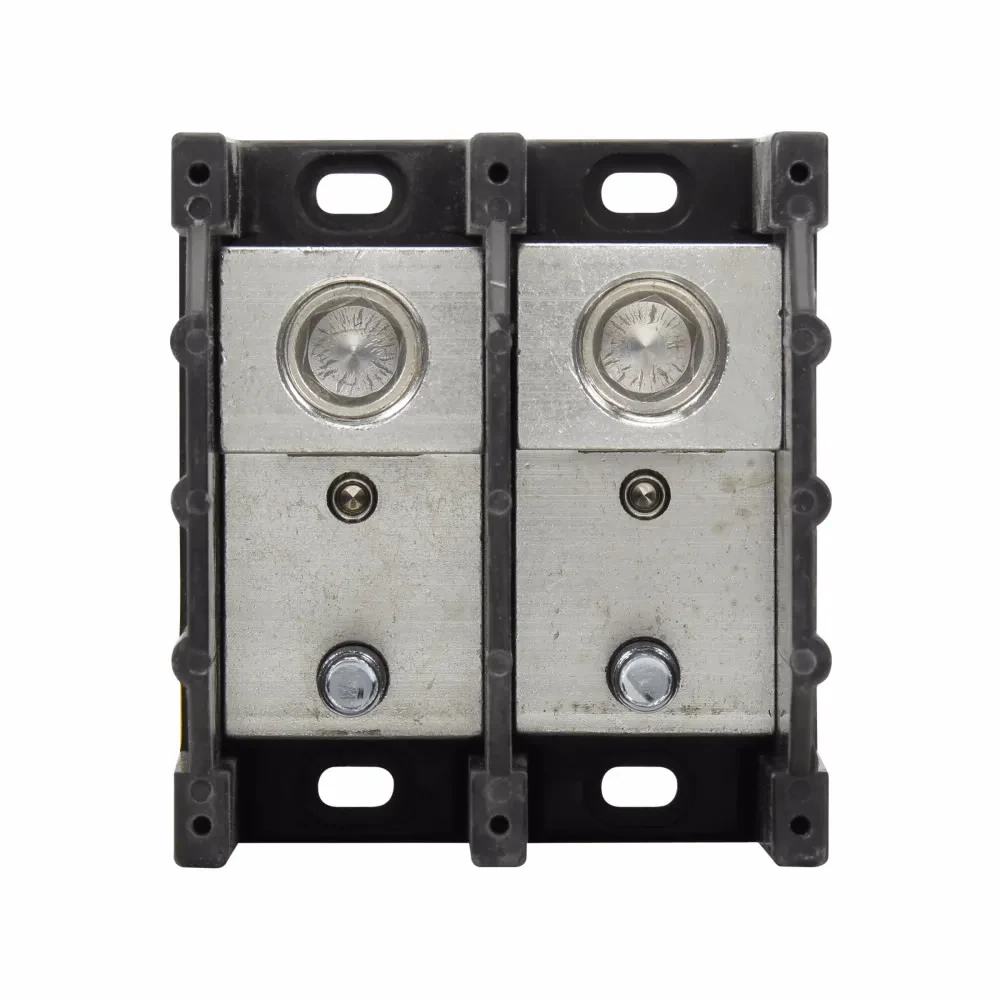

Eaton Bussmann series power terminal block, 600 Vac/dc maximum, 380A, 10 kAIC, Power terminal block, Series 163, Two-pole, Load: (1) 3/8 - 16 x 1 Stud, Black, Thermoplastic base, Tin-plated aluminum connector
Eaton Bussmann series power terminal block, 600 Vac/dc maximum, 380A, 10 kAIC, Power terminal block, Series 163, Two-pole, Load: (1) 3/8 - 16 x 1 Stud, Black, Thermoplastic base, Tin-plated aluminum connector
Bussmann provides the broadest offering of UL listed Cable Limiters, Welder Limiters, Circuit Limite...150
Bussmann provides the broadest offering of UL listed Cable Limiters, Welder Limiters, Circuit Limiters and accessories. With products rated for AC or DC applications to suit your specific application requirements.
- UPC
- 051712271448
- UNSPSC
- 39121410
- Country of Origin
- MX
- Amperage Rating:
- 380 A
- Color:
- Black
- Material:
- Thermoplastic base, tin plated aluminum connector
- Size:
- 3.60 In Length X 4.00 In Width X 3.32 In Height
- Type:
- Power terminal block
- Voltage Rating:
- 600 Vac/dc maximum
- Amperage Rating:
- 380 A
- Color:
- Black
- Connection:
- Load: (1) 3/8 - 16 x 1 Stud
- Dimensions:
- 2.0000 IN X 1.0000 IN X 2.0000 IN
- Material:
- Thermoplastic base, tin plated aluminum connector
- Size:
- 3.60 In Length X 4.00 In Width X 3.32 In Height
- Standard:
- Contact factory,RoHS Compliant
- Sub Brand:
- Bussmann Series
- Type:
- Power terminal block
- Voltage Rating:
- 600 Vac/dc maximum
- Wire Size:
- #6 AWG-500 kcmil Cu/Al
VPT7
$33.07 /ea
Connection Block, Lamp Type: Incandescent, For V-51 Incandescent Luminaires
| Attributed Data | Included |
|---|---|
| Lamp Type | Incandescent Yes |
| Type | Connection Block Yes |
16383-1
$63.84 /ea
Eaton Bussmann series power terminal block, 600 Vac/dc maximum, 380A, 10 kAIC, Power terminal block, Series 163, Single-pole, Load: (1) 3/8 - 16 x 1 Stud, Black, Thermoplastic base, Tin-plated aluminum connector
| Attributed Data | Included |
|---|---|
| Color | Black Yes |
| Connection | Load: (1) 3/8 - 16 x 1 Stud Yes |
| Dimensions | 1.9800 IN X 3.3200 IN X 4.0000 IN Yes |
| Material | Thermoplastic base, tin plated aluminum connector Yes |
| Size | 1.98 In Length X 4.00 In Width X 3.32 In Height Yes |
| Standard | Contact Manufacturer,Contact factory,RoHS Compliant Yes |
| Sub Brand | Bussmann Series Yes |
| Type | Power terminal block Yes |
| Voltage Rating | 600 Vac/dc maximum Yes |
| Wire Size | #6 AWG-500 kcmil Cu/Al Yes |
16383-3
$165.71 /ea
Eaton Bussmann series power terminal block, 600 Vac/dc maximum, 380A, 10 kAIC, Power terminal block, Series 163, Three-pole, Load: (1) 3/8 - 16 x 1 Stud, Black, Thermoplastic base, Tin-plated aluminum connector
| Attributed Data | Included |
|---|---|
| Color | Black Yes |
| Connection | Load: (1) 3/8 - 16 x 1 Stud Yes |
| Dimensions | 3.9500 IN X 5.2000 IN X 3.2200 IN Yes |
| Material | Thermoplastic base, tin plated aluminum connector Yes |
| Size | 5.21 In Length X 4.00 In Width X 3.32 In Height Yes |
| Standard | RoHS Compliant,Contact factory Yes |
| Sub Brand | Bussmann Series Yes |
| Type | Power terminal block Yes |
| Voltage Rating | 600 Vac/dc maximum Yes |
| Wire Size | #6 AWG-500 kcmil Cu/Al Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
VPT7
Connection Block, Lamp Type: Incandescent, For V-51 Incandescent Luminaires
$33.07 / EA
|
16383-1
Eaton Bussmann series power terminal block, 600 Vac/dc maximum, 380A, 10 kAIC, Power terminal block, Series 163, Single-pole, Load: (1) 3/8 - 16 x 1 Stud, Black, Thermoplastic base, Tin-plated aluminum connector
$63.84 / EA
|
16383-3
Eaton Bussmann series power terminal block, 600 Vac/dc maximum, 380A, 10 kAIC, Power terminal block, Series 163, Three-pole, Load: (1) 3/8 - 16 x 1 Stud, Black, Thermoplastic base, Tin-plated aluminum connector
$165.71 / EA
|
|
| Attributed Data | |||
| Amperage Rating | 380 A 380 A | ||
| Color | Black Black | ||
| Connection | Load: (1) 3/8 - 16 x 1 Stud Load: (1) 3/8 - 16 x 1 Stud | ||
| Dimensions | 1.9800 IN X 3.3200 IN X 4.0000 IN 1.9800 IN X 3.3200 IN X 4.0000 IN | 3.9500 IN X 5.2000 IN X 3.2200 IN 3.9500 IN X 5.2000 IN X 3.2200 IN | |
| Lamp Type | Incandescent Incandescent | ||
| Material | Thermoplastic base, tin plated aluminum connector Thermoplastic base, tin plated aluminum connector | ||
| Number Of Terminals | 3 3 | ||
| Size | 1.98 In Length X 4.00 In Width X 3.32 In Height 1.98 In Length X 4.00 In Width X 3.32 In Height | 5.21 In Length X 4.00 In Width X 3.32 In Height 5.21 In Length X 4.00 In Width X 3.32 In Height | |
| Standard | Contact Manufacturer,Contact factory,RoHS Compliant Contact Manufacturer,Contact factory,RoHS Compliant | RoHS Compliant,Contact factory RoHS Compliant,Contact factory | |
| Sub Brand | Bussmann Series Bussmann Series | ||
| Type | Connection Block Connection Block | Power terminal block Power terminal block | |
| Voltage Rating | 600 Vac/dc maximum 600 Vac/dc maximum | ||
| Wire Size | #6 AWG-500 kcmil Cu/Al #6 AWG-500 kcmil Cu/Al | ||
| Add a product to the cart | Show more details | Show more details | Show more details |
