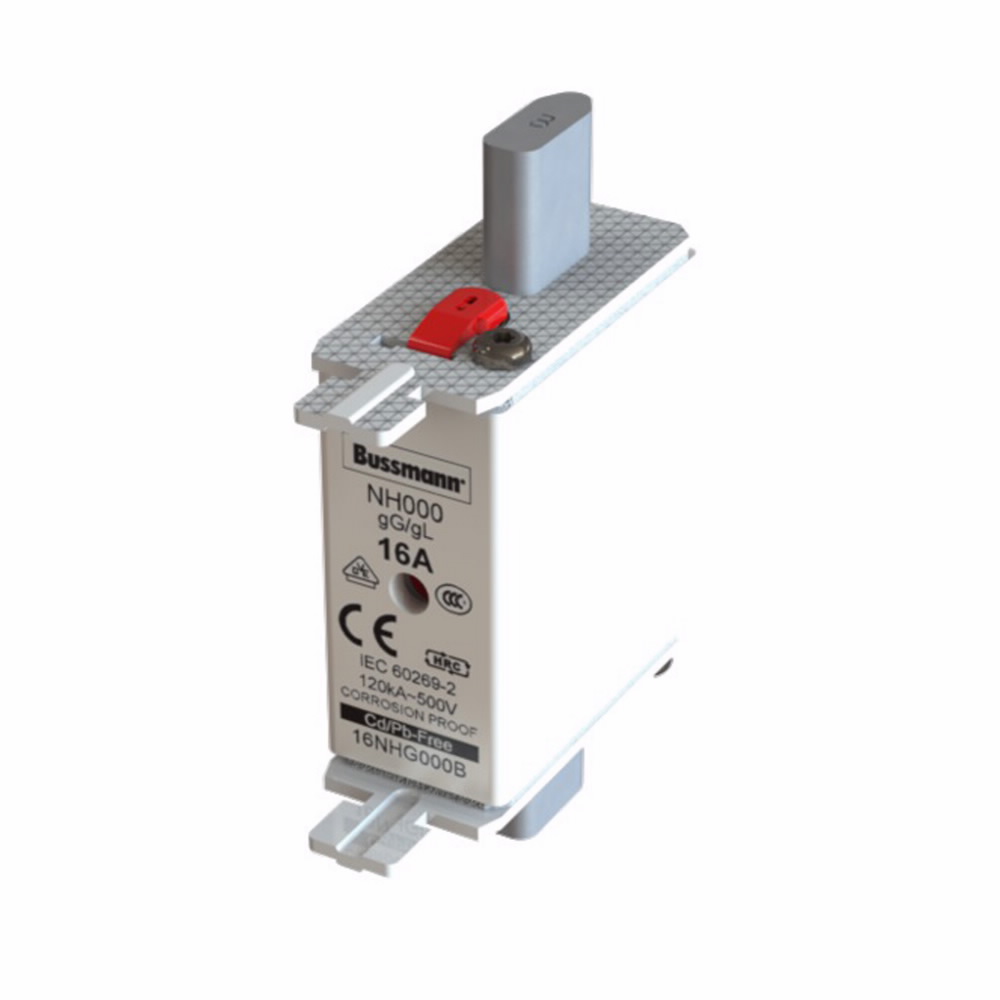

Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 16A, 120 kAIC, Combination fuse status indicator, fuse, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Ceramic body - 16NHG000B

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

16NHG000B

Manufacturer: Cooper Bussmann

Category: Power Fuse

$38.82 / EA

In stock (0)
Lead time: over 7 days
may be longer on small orders

Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 16A, 120 kAIC, Combination fuse status indicator, fuse, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Ceramic body - 16NHG000B

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class...150

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.

UPC: 051712625777
UNSPSC: 39121627
Country of Origin: IN
Amperage Rating:: 16 A
Material:: Ceramic
Type:: Low voltage NH fuse
Voltage Rating:: 500 V
Amperage Rating:: 16 A
Class:: Class C gL/gG
Connection:: Blade end
Dimensions:: 3.1102 IN X 0.8268 IN X 2.0079 IN
Interrupt Rating:: 120 kAIC
Material:: Ceramic
Standard:: EAC ,EAC ,UL geregistreerd ,CCC gemarkeerd ,EAC ,CCC Marked ,Marqué CCC ,VDE ,UL Listed ,EAC ,VDE ,VDE ,UL Listed ,CCC Marked ,CCC Marked ,Répertorié UL ,VDE ,EAC ,UL Listed ,UL Listed ,VDE ,VDE ,CCC Marked ,EAC,CE-merket,CE-Kennzeichnung,Con marchio CE,Marquage CE,CE Marked,RoHS-kompatibel,Conformité RoHS,Conforme a RoHS,RoHS-compliant,RoHS-konform,CE-markering,RoHS Compliant
Sub Brand:: Bussmann Series
Type:: Low voltage NH fuse
Voltage Rating:: 500 V
