170M1319
SKU: 170M1319
MPN: 170M1319
Key specs
View all- Amperage Rating
- 160 A
- Size
- 100 mm Length X 21 mm Width X 40 mm Height
- Type
- High speed square body fuse
- Voltage Rating
- 690 V
Description
Product overview

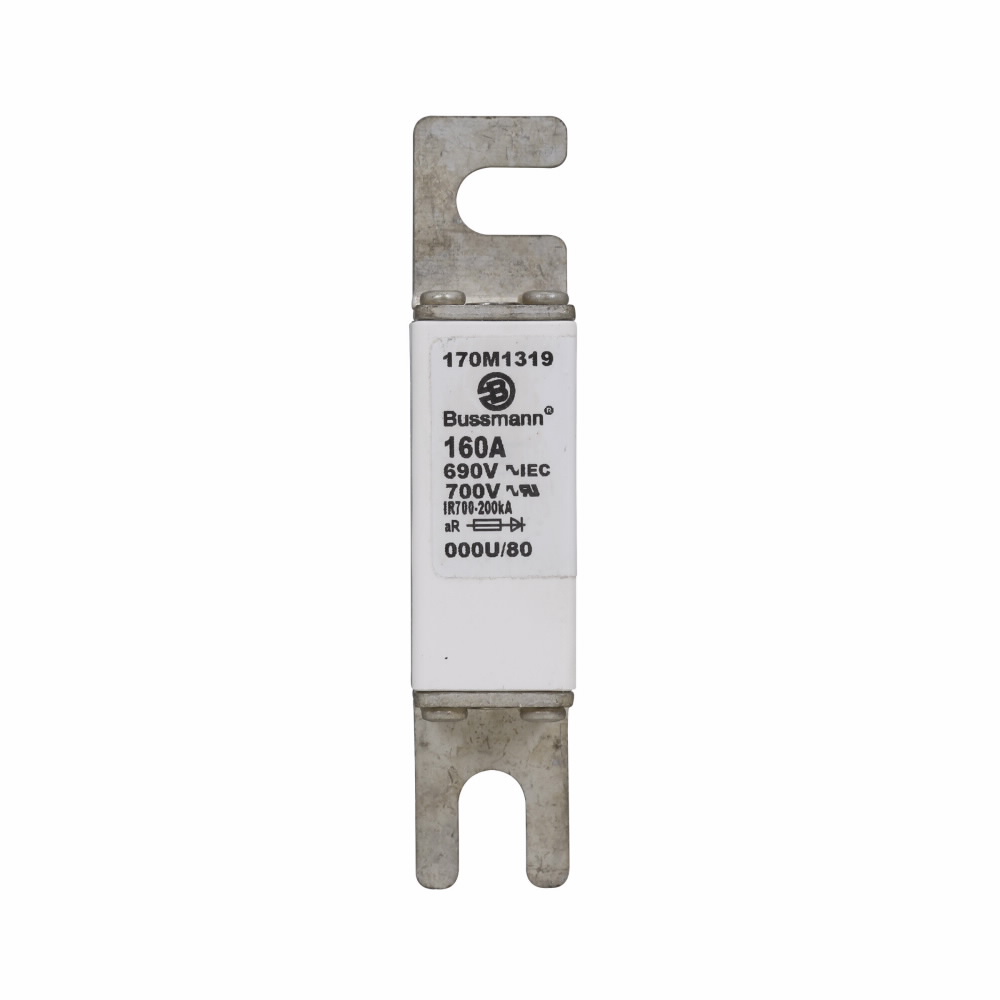

Eaton Bussmann series high speed square body fuse, 690V, 160A, 200 kAIC, None, Fuse, Blade end X blade end, Class aR, DIN 43 620
Eaton Bussmann series high speed square body fuse, 690V, 160A, 200 kAIC, None, Fuse, Blade end X blade end, Class aR, DIN 43 620
Manufacturer highlights
Eaton's Bussmann series High speed Square Body semiconductors fuses are suitable for the protection of AC and DC Drives, power converters/rectifiers a...
Eaton's Bussmann series High speed Square Body semiconductors fuses are suitable for the protection of AC and DC Drives, power converters/rectifiers and variable speed drives.
Additional manufacturer notes
- Short name
- BUSS
- Feed description
- BUSS 170M1319 FUSE 160A 690V 000U/8
- Invoice description
- FUSE 160A 690V 000U/80 AR UC
Specifications
- UPC
- 051712216555
- UNSPSC
- 39121628
- Country of Origin
- IN
- Amperage Rating
- 160 A
- Size
- 100 mm Length X 21 mm Width X 40 mm Height
- Type
- High speed square body fuse
- Voltage Rating
- 690 V
- Amperage Rating
- 160 A
- Class
- Class aR
- Connection
- Blade end x blade end
- Dimensions
- 4.1339 IN X 11.8110 IN X 1.8110 IN
- Interrupt Rating
- 200 kAIC
- Mounting
- DIN 43-653 Stud
- Size
- 100 mm Length X 21 mm Width X 40 mm Height
- Standard
- UL Recognized ,IEC Rated,CE Marked,RoHS Compliant
- Sub Brand
- Bussmann Series
- Type
- High speed square body fuse
- Voltage Rating
- 690 V
