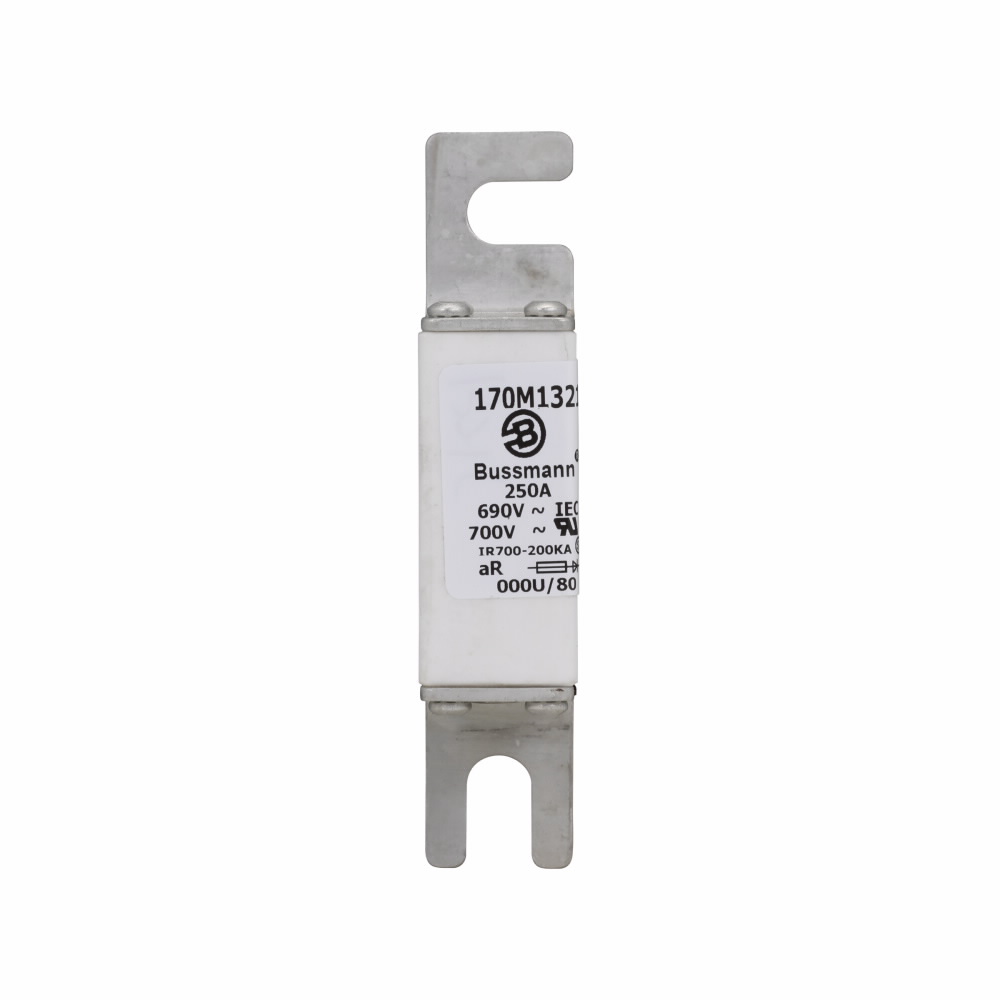

Eaton Bussmann series high speed square body fuse, 690V, 250A, 200 kAIC, None, Fuse, Blade end X blade end, Class aR, DIN 43 620
Eaton Bussmann series high speed square body fuse, 690V, 250A, 200 kAIC, None, Fuse, Blade end X blade end, Class aR, DIN 43 620
Eaton Bussmann series high speed square body fuse, 690V, 250A, 200 kAIC, None, Fuse, Blade end X blade end, Class aR, DIN 43 620
Eaton Bussmann series high speed square body fuse, 690V, 250A, 200 kAIC, None, Fuse, Blade end X blade end, Class aR, DIN 43 620

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

170M1321

Manufacturer
Cooper Bussmann

$100.79 / EA

Available to order

Local stock: 0
Lead time: 1 - 2 working days

Eaton Bussmann series high speed square body fuse, 690V, 250A, 200 kAIC, None, Fuse, Blade end X blade end, Class aR, DIN 43 620

Eaton Bussmann series high speed square body fuse, 690V, 250A, 200 kAIC, None, Fuse, Blade end X blade end, Class aR, DIN 43 620

Eaton�s Bussmann series High speed Square Body semiconductors fuses are suitable for the protection...150

Eaton�s Bussmann series High speed Square Body semiconductors fuses are suitable for the protection of AC and DC Drives, power converters/rectifiers and variable speed drives.

UPC
051712216579
UNSPSC
39121628
Country of Origin
PL
Amperage Rating:
250 A
Size:
100 mm Length X 21 mm Width X 40 mm Height
Type:
High speed square body fuse
Voltage Rating:
690 V
Amperage Rating:
250 A
Class:
Class aR
Connection:
Blade end x blade end
Dimensions:
4.1339 IN X 11.8110 IN X 1.8110 IN
Interrupt Rating:
200 kAIC
Mounting:
DIN 43 620
Size:
100 mm Length X 21 mm Width X 40 mm Height
Standard:
IEC Rated ,UL Recognized,RoHS Compliant,CE Marked
Sub Brand:
Bussmann Series
Type:
High speed square body fuse
Voltage Rating:
690 V
