$84.03 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

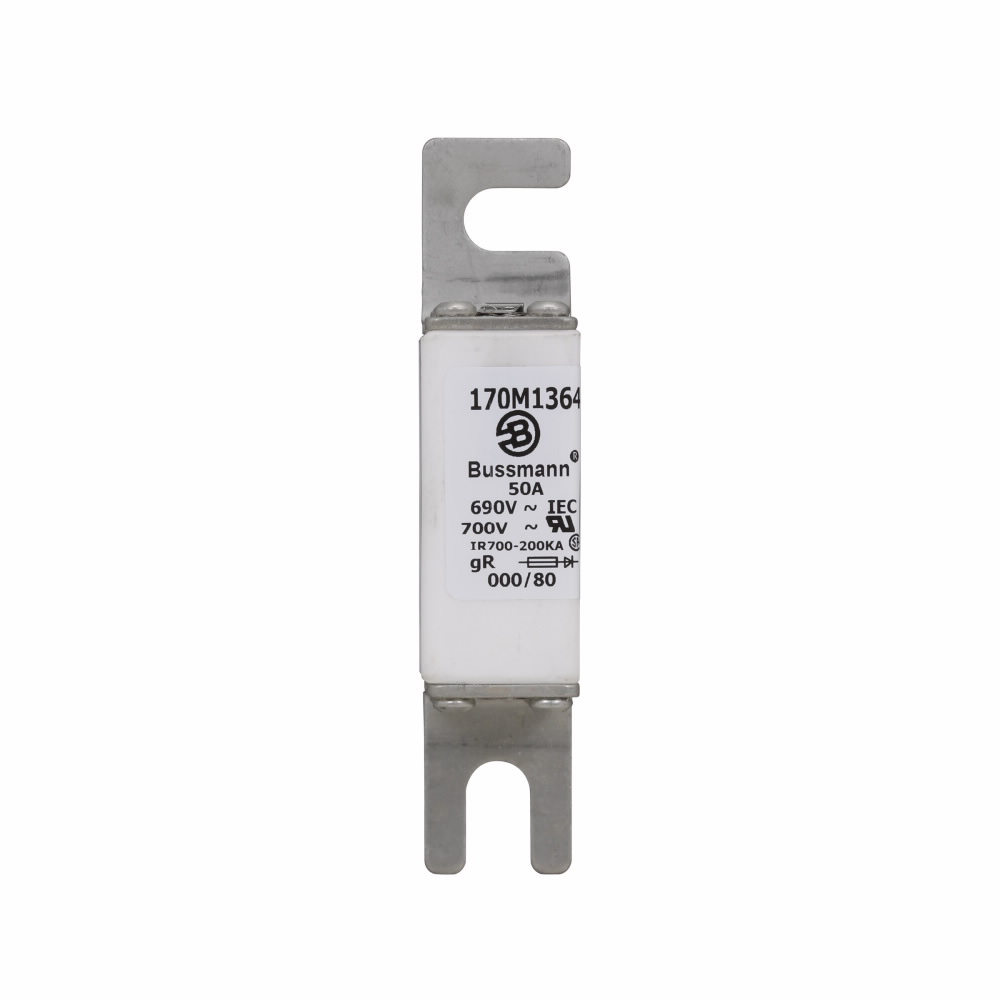

Eaton Bussmann series high speed square body fuse, 50A, 200 kAIC, Top fuse status indicator, Fuse, Blade end X blade end, Class gR, DIN 43 620 - 170M1364
Eaton Bussmann series high speed square body fuse, 50A, 200 kAIC, Top fuse status indicator, Fuse, Blade end X blade end, Class gR, DIN 43 620 - 170M1364
Eaton�s Bussmann series High speed Square Body semiconductors fuses are suitable for the protection...150
Eaton�s Bussmann series High speed Square Body semiconductors fuses are suitable for the protection of AC and DC Drives, power converters/rectifiers and variable speed drives.
- UPC
- 051712216654
- UNSPSC
- 39121628
- Country of Origin
- CN
- Amperage Rating:
- 50 A
- Size:
- 100 mm Length X 21 mm Width X 40 mm Height
- Type:
- High speed square body fuse
- Voltage Rating:
- 690 V
- Amperage Rating:
- 50 A
- Class:
- Class gR
- Connection:
- Blade end x blade end
- Dimensions:
- 4.1339 IN X 11.8110 IN X 1.8110 IN
- Interrupt Rating:
- 200 kAIC
- Mounting:
- DIN 43 620
- Size:
- 100 mm Length X 21 mm Width X 40 mm Height
- Standard:
- UL Recognized ,IEC Rated,RoHS Compliant,CE Marked
- Sub Brand:
- Bussmann Series
- Type:
- High speed square body fuse
- Voltage Rating:
- 690 V
