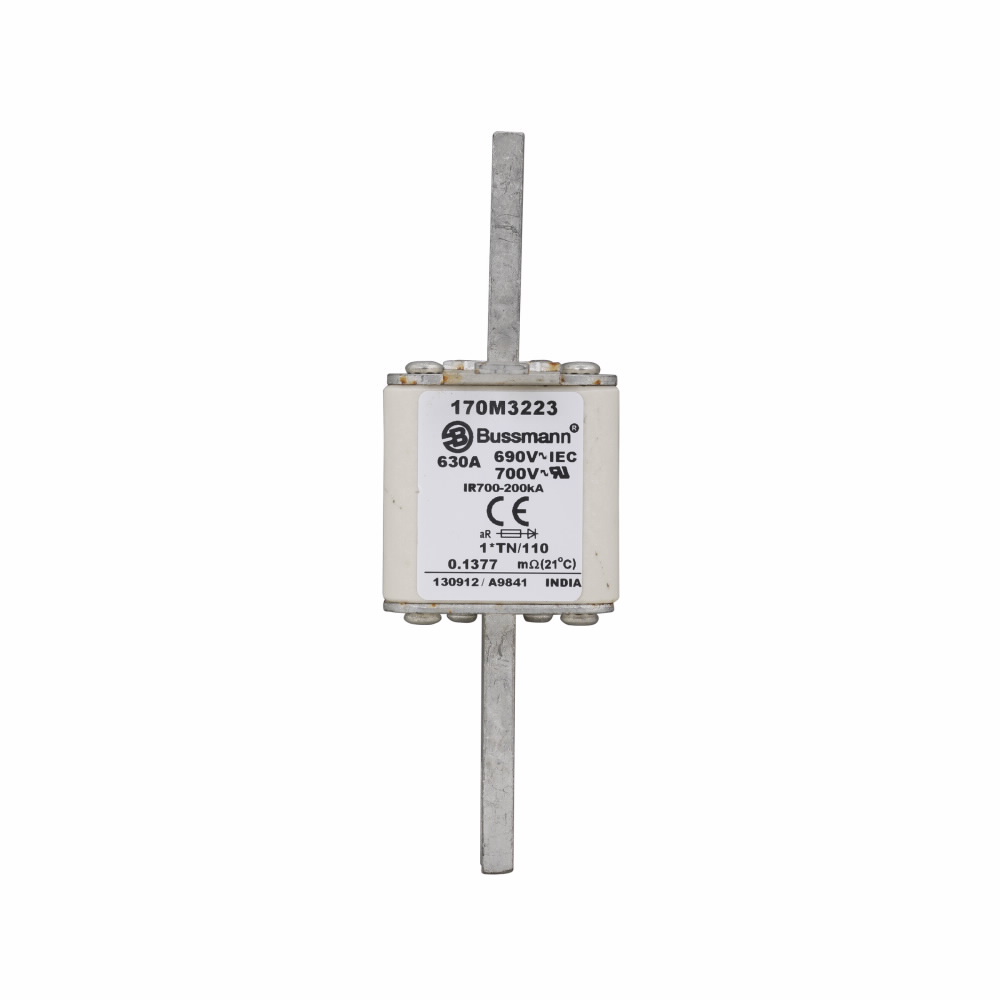

Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 630A, 200 kAIC, Top fuse status indicator, Fuse, Blade end X blade end, Class aR, DIN 43 620 - 170M3223
Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 630A, 200 kAIC, Top fuse status indicator, Fuse, Blade end X blade end, Class aR, DIN 43 620 - 170M3223
Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 630A, 200 kAIC, Top fuse status indicator, Fuse, Blade end X blade end, Class aR, DIN 43 620 - 170M3223
Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 630A, 200 kAIC, Top fuse status indicator, Fuse, Blade end X blade end, Class aR, DIN 43 620 - 170M3223

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

170M3223

Manufacturer
Cooper Bussmann

$313.14 / EA

Available to order

Local stock: 0
Lead time: 1 - 2 working days

Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 630A, 200 kAIC, Top fuse status indicator, Fuse, Blade end X blade end, Class aR, DIN 43 620 - 170M3223

Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 630A, 200 kAIC, Top fuse status indicator, Fuse, Blade end X blade end, Class aR, DIN 43 620 - 170M3223

Eaton�s Bussmann series High speed Square Body semiconductors fuses are suitable for the protection...150

Eaton�s Bussmann series High speed Square Body semiconductors fuses are suitable for the protection of AC and DC Drives, power converters/rectifiers and variable speed drives.

UPC
051712255301
UNSPSC
39121628
Country of Origin
IN
Amperage Rating:
630 A
Size:
134 mm Length X 45 mm Width X 58 mm Height
Type:
High speed square body fuse
Voltage Rating:
690 V
Amperage Rating:
630 A
Class:
Class aR
Connection:
Blade end x blade end
Dimensions:
11.4173 IN X 5.5906 IN X 2.4409 IN
Height:
2.087 in
Interrupt Rating:
200 kAIC
Length:
5.433 in
Mounting:
DIN 43-653 Stud
Size:
134 mm Length X 45 mm Width X 58 mm Height
Standard:
IEC Rated ,UL Recognized,RoHS Compliant,CE Marked
Sub Brand:
Bussmann Series
Type:
High speed square body fuse
Voltage Rating:
690 V
Weight:
1.6456 lb
Width:
0.315 in
