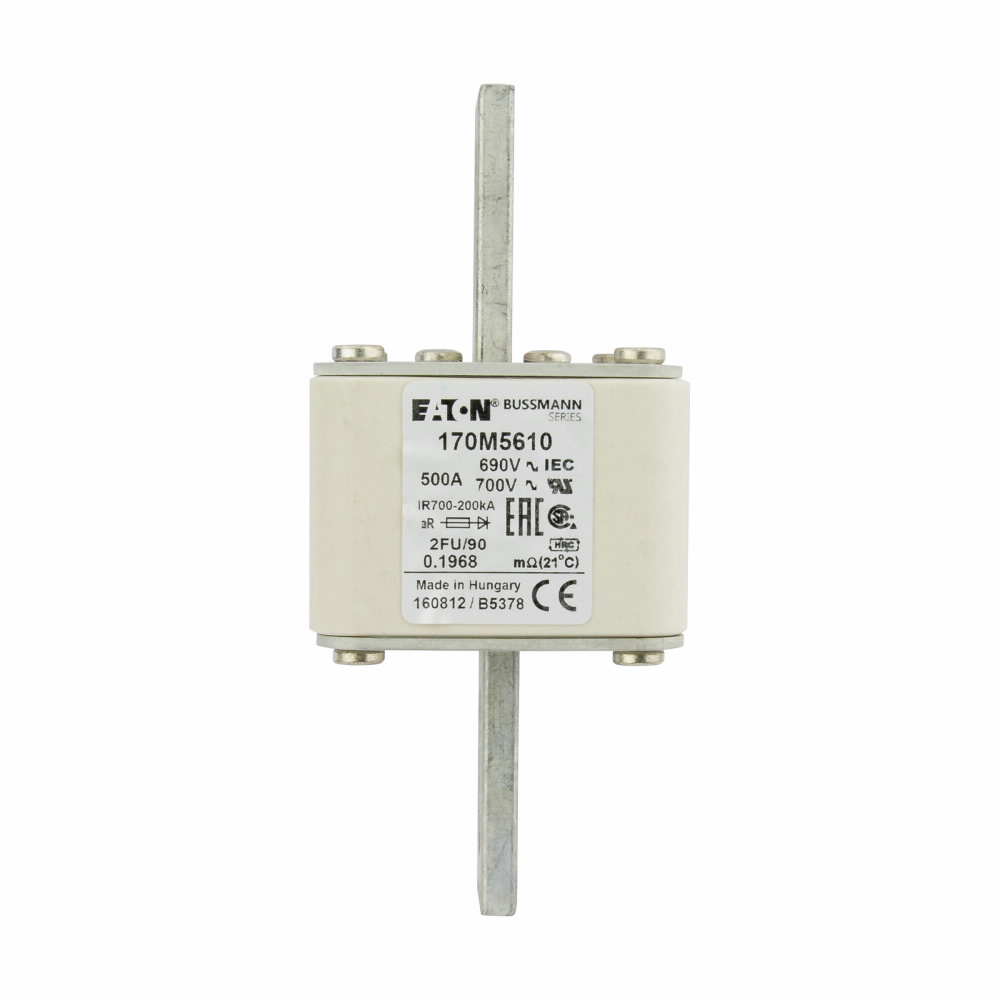

Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 500A, 200 kAIC, None, Fuse, Blade end X blade end, Class aR - 170M5610
Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 500A, 200 kAIC, None, Fuse, Blade end X blade end, Class aR - 170M5610
Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 500A, 200 kAIC, None, Fuse, Blade end X blade end, Class aR - 170M5610
Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 500A, 200 kAIC, None, Fuse, Blade end X blade end, Class aR - 170M5610

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

170M5610

Manufacturer
Cooper Bussmann

$336.77 / EA

Available to order

Local stock: 0
Lead time: 1 - 2 working days

Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 500A, 200 kAIC, None, Fuse, Blade end X blade end, Class aR - 170M5610

Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 500A, 200 kAIC, None, Fuse, Blade end X blade end, Class aR - 170M5610

Eaton�s Bussmann series High speed Square Body semiconductors fuses are suitable for the protection...150

Eaton�s Bussmann series High speed Square Body semiconductors fuses are suitable for the protection of AC and DC Drives, power converters/rectifiers and variable speed drives.

UPC
051712261838
UNSPSC
39121628
Country of Origin
HU
Amperage Rating:
500 A
Size:
135 mm Length X 61 mm Width X 77 mm Height
Type:
High speed square body fuse
Voltage Rating:
690 V
Amperage Rating:
500 A
Class:
Class aR
Connection:
Blade end x blade end
Dimensions:
5.3150 IN X 6.4961 IN X 2.3228 IN
Height:
5 in
Interrupt Rating:
200 kAIC
Length:
2.25 in
Size:
135 mm Length X 61 mm Width X 77 mm Height
Standard:
UL Recognized ,IEC Rated,RoHS Compliant,CE Marked
Sub Brand:
Bussmann Series
Type:
High speed square body fuse
Voltage Rating:
690 V
Weight:
1.253 lb
Width:
2.25 in

Recently Viewed

  • placeholder image

    170M5610

    COOPER BUSSMANN
    Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 500A, 200 kAIC, None, Fuse, Blade end X blade end, Class aR - 170M5610
    See more details
  • placeholder image

    45884NI

    KICHLER LIGHTING

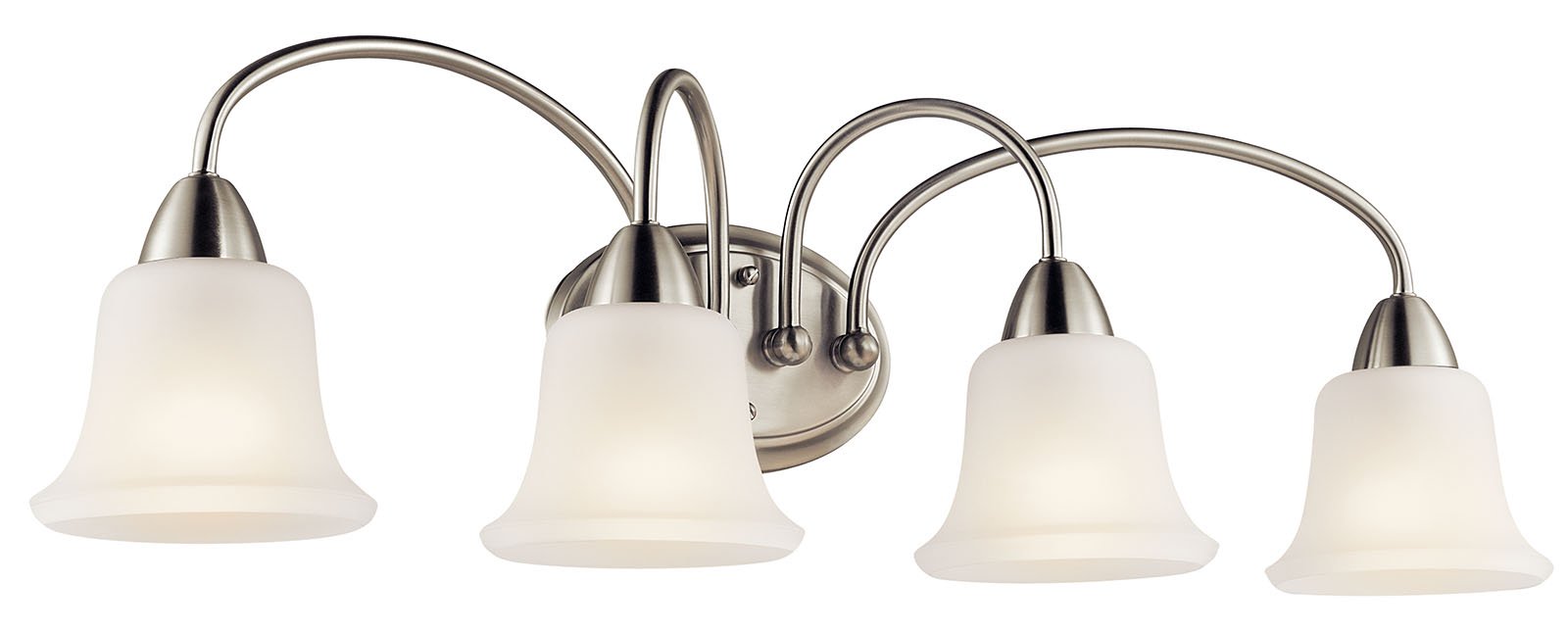

    This tasteful 4 light wall fixture from the Nicholson(TM) collection will make a refined statement in your home. Featuring an elegant, Brushed Nickel...
