180
SKU: 180-TOPAZ
MPN: 180
Key specs
View all- Material
- Die Cast Zinc
- Type
- EMT to NM Set-Screw Combination Coupling
Description
Product overview

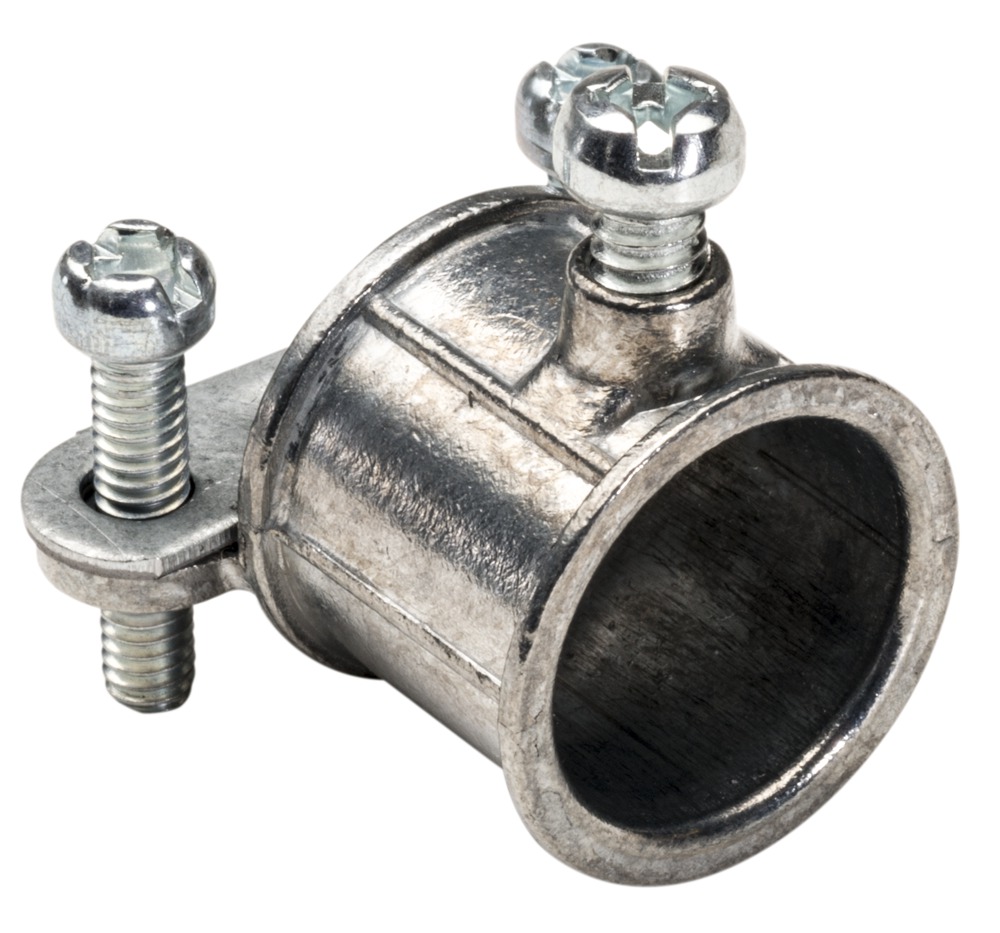

Set Screw to Clamp Type EMT to BX or NM Cable Combination Coupling
Set Screw to Clamp Type EMT to BX or NM Cable Combination Coupling
Manufacturer highlights
Topaz's corrosion resistant Combination Couplings maintain fixed position for EMT to BX or NM cable; set screw to clamp type design ensures a secure c...
Topaz's corrosion resistant Combination Couplings maintain fixed position for EMT to BX or NM cable; set screw to clamp type design ensures a secure connection. Recommended for indoor use. Rugged, corrosion resistant zinc die cast construction; trade sizes of 1/2" - 3/8' available; built to last and dependable. 2 screw assembly; UL listed, always in stock and ready for fast delivery.
- Set screw to clamp type
- Combination coupling used to join NM cable to EMT
Additional manufacturer notes
- Short name
- TPZ
- Feed description
- TPZ 180 1/2 "EMT3/8" FLX COUP 50/50
- Invoice description
- 1/2 "EMT3/8" FLX COUP 50/500
Specifications
- UPC
- 751338114104
- UNSPSC
- 39131707
- Country of Origin
- MUL
- Material
- Die Cast Zinc
- Type
- EMT to NM Set-Screw Combination Coupling
- Connection
- Screw to Clamp
- Connectors (IN)
- Screw to Clamp IN
- Diameter (IN)
- 0.630 IN
- Flexibility
- EMT Conduit
- For Use With
- EMT Conduit
- Inside Diameter
- 0.170 IN
- Inside Min (IN)
- 0.170 IN
- Installation Type
- Screw to Clamp
- Label Description
- EMT TO BOX OR NM CABLE COMBO COUPLING
- Length
- 1.35 in
- Material
- Die Cast Zinc
- Nominal Length Inches
- 1.35
- Outside Diameter
- 0.63 in
- Size (IN)
- 1/2" - 3/8" IN
- Size (trade) (IN)
- 1/2 - 3/8 IN
- Standard
- UL E148716, CSA Certified, UL 514B, Federal Specification A-A-50553, NEMA/ANSI FB-1, Military Specification Number W-F-406D, W-F-406E, W-F-408D, W-S-610D
- Trade Size
- 0.375/0.5 in
- Type
- EMT to NM Set-Screw Combination Coupling
- Manufacturer keywords
- 1/2 "EMT3/8" FLX COUP 50/500
