1BS101
SKU: 1BS101
MPN: 1BS101
Key specs
View all- Amperage Rating
- 100 A
- Material
- Tin-plated aluminum connectorZinc-plated steel studs/nut/washerMolded black phenolic base
- Size
- 2.00 In Height
- Type
- Accessory
- Voltage Rating
- 600 V
- Wattage
- 150 CEL
Description
Product overview

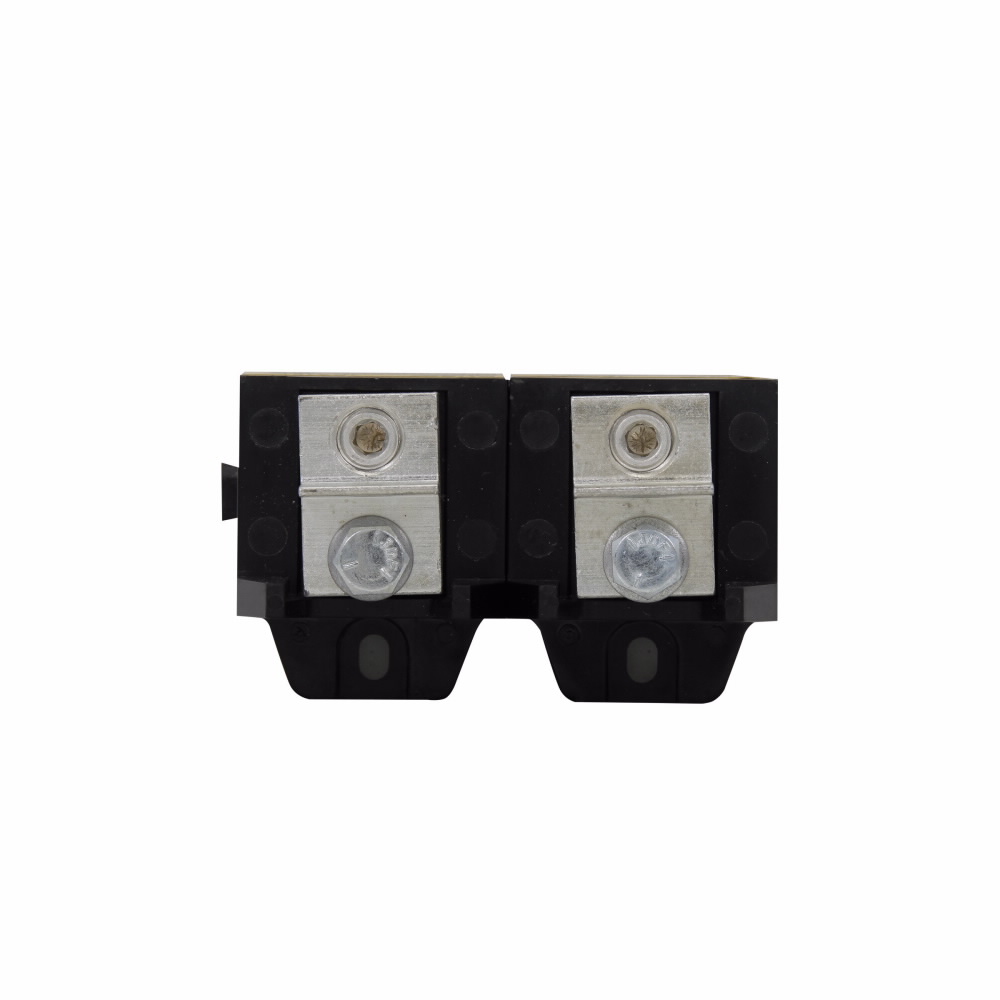

Eaton Bussmann series 1BS10x universal fuse block, 600V, 100A, 200 kAIC, Modular, Set Screw, Stud, Molded Black Phenolic Base, Zinc Plated Steel Studs/Nut/Washer, Tin Plated Aluminum Connector
Eaton Bussmann series 1BS10x universal fuse block, 600V, 100A, 200 kAIC, Modular, Set Screw, Stud, Molded Black Phenolic Base, Zinc Plated Steel Studs/Nut/Washer, Tin Plated Aluminum Connector
Manufacturer highlights
Bussmann series circuit protection products and services focus on downtime reduction, workplace safety and Code compliance for the industrial/MRO, OEM...
Bussmann series circuit protection products and services focus on downtime reduction, workplace safety and Code compliance for the industrial/MRO, OEM and construction markets. From electrical power fuses to fuse blocks and holders and engineering services, the Bussmann brand stands for protection you rely on.
Additional manufacturer notes
- Short name
- BUSS
- Feed description
- BUSS 1BS101 BUSS FUSEBLOCK
- Invoice description
- BUSS FUSEBLOCK
Specifications
- UPC
- 051712134989
- UNSPSC
- 39121624
- Country of Origin
- MX
- Amperage Rating
- 100 A
- Material
- Tin-plated aluminum connectorZinc-plated steel studs/nut/washerMolded black phenolic base
- Size
- 2.00 In Height
- Type
- Accessory
- Voltage Rating
- 600 V
- Wattage
- 150 CEL
- Amperage Rating
- 100 A
- Connection
- Set screw
- Dimensions
- 4.4000 IN X 3.2000 IN X 2.6000 IN
- Material
- Tin-plated aluminum connectorZinc-plated steel studs/nut/washerMolded black phenolic base
- Mounting
- Stud
- Operating Temperature
- 150 Deg C
- Size
- 2.00 In Height
- Standard
- RoHS Compliant,Contact factory
- Sub Brand
- Bussmann Series
- Type
- Accessory
- Voltage Rating
- 600 V
- Wattage
- 150 CEL
