2-1000LL4
SKU: 2-1000LL4
MPN: 2-1000LL4
Key specs
View all- Color
- Silver
- Material
- Aluminum
- Number Of Poles
- 1
- Voltage Rating
- 600 V
Description
Product overview

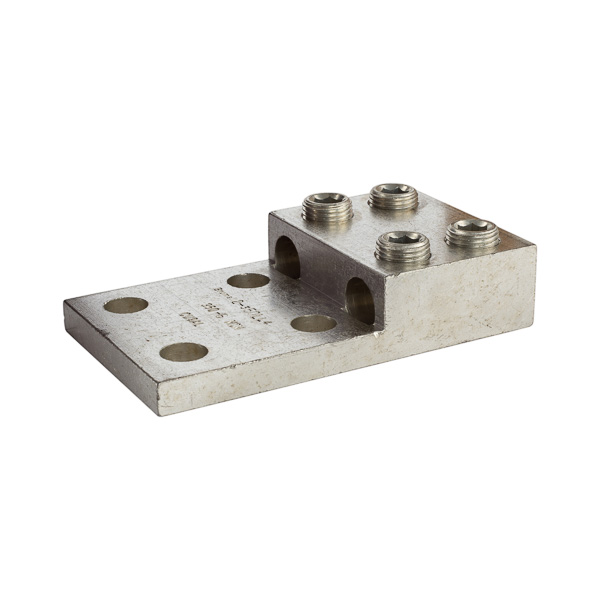

2 Port Heavy Duty Dual Rated Transformer Lug 1000 MCM - 500 MCM Heavy Duty Dual Rated Transformer Lugs are versatile and reusable set screw connectors made from high strength 6061-T6 aluminum alloy for superior electrical and mechanical performance. Two set screws per wire hole ensure an exceptional connection. Electro-tin plated for low contact resistance. For use with copper or aluminum conductors. Mounting hole spacing is NEMA 1-3/4". Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperat...
2 Port Heavy Duty Dual Rated Transformer Lug 1000 MCM - 500 MCM Heavy Duty Dual Rated Transformer Lugs are versatile and reusable set screw connectors made from high strength 6061-T6 aluminum alloy for superior electrical and mechanical performance. Two set screws per wire hole ensure an exceptional connection. Electro-tin plated for low contact resistance. For use with copper or aluminum conductors. Mounting hole spacing is NEMA 1-3/4". Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI 2-1000LL4 Dble Screw Lug(2)1000
- Invoice description
- Dble Screw Lug(2)1000-500
Specifications
- UPC
- 662381027221
- Color
- Silver
- Material
- Aluminum
- Number Of Poles
- 1
- Voltage Rating
- 600 V
- Color
- Silver
- Environmental Conditions
- 90 C
- Finish
- Aluminum
- Material
- Aluminum
- Number Of Poles
- 1
- Sub Brand
- Utilities
- Temperature Rating
- 90 C
- Voltage Rating
- 600 V
