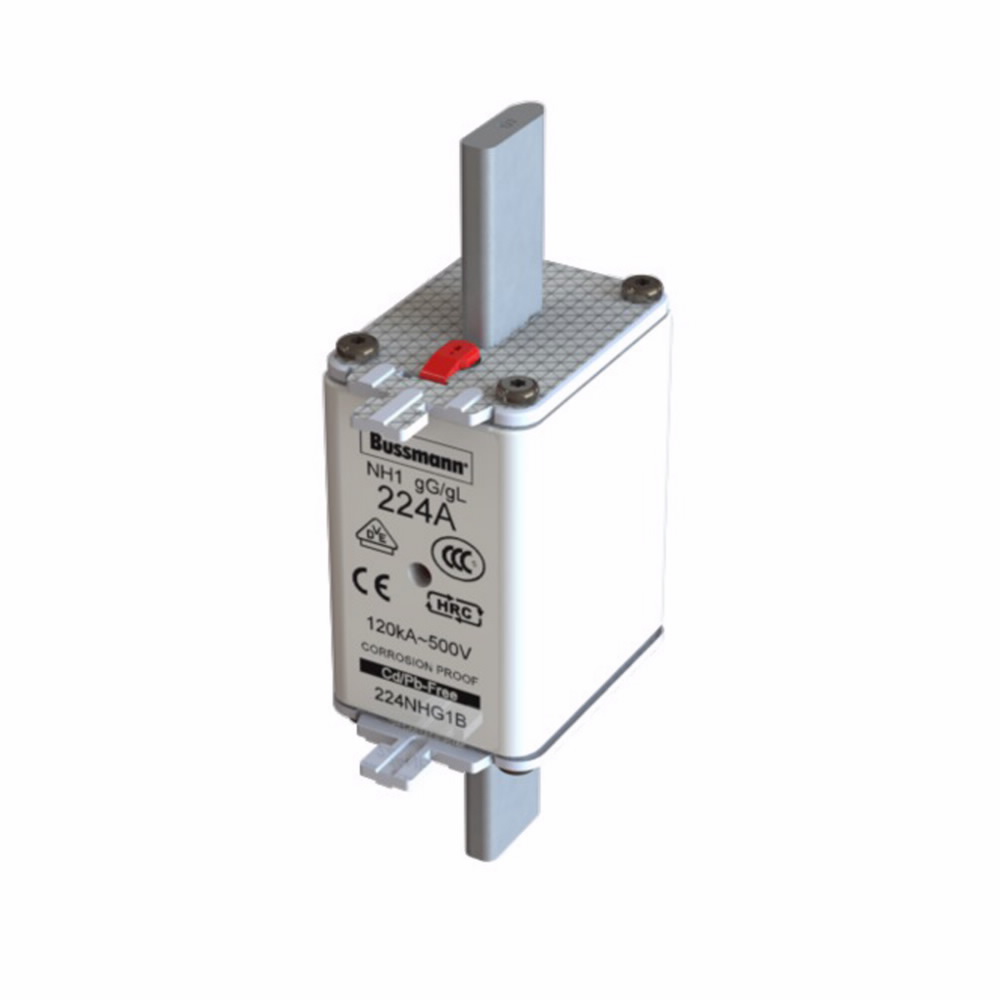

Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 224A, 120 kAIC, Combination fuse status indicator, fuse, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Ceramic body - 224NHG1B
Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 224A, 120 kAIC, Combination fuse status indicator, fuse, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Ceramic body - 224NHG1B
Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 224A, 120 kAIC, Combination fuse status indicator, fuse, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Ceramic body - 224NHG1B
Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 224A, 120 kAIC, Combination fuse status indicator, fuse, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Ceramic body - 224NHG1B

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

224NHG1B

Manufacturer
Cooper Bussmann
Category
Power Fuse

$91.67 / EA

Available to order

Local stock: 0
Lead time: 1 - 2 working days

Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 224A, 120 kAIC, Combination fuse status indicator, fuse, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Ceramic body - 224NHG1B

Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 224A, 120 kAIC, Combination fuse status indicator, fuse, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Ceramic body - 224NHG1B

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class...150

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.

UPC
051712626040
UNSPSC
39121627
Country of Origin
IN
Amperage Rating:
224 A
Material:
Ceramic
Type:
Low voltage NH fuse
Voltage Rating:
500 V
Amperage Rating:
224 A
Class:
Class C gL/gG
Connection:
Blade end
Dimensions:
5.3150 IN X 1.5748 IN X 2.4803 IN
Interrupt Rating:
120 kAIC
Material:
Ceramic
Standard:
CCC Marked ,CCC Marked ,UL Listed ,CCC gemarkeerd ,CCC Marked ,UL geregistreerd ,UL Listed ,Marqué CCC ,UL Listed ,Répertorié UL ,UL Listed ,CCC Marked,RoHS Compliant,Con marchio CE,Conformité RoHS,CE-merket,CE Marked,RoHS-konform,Marquage CE,CE-Kennzeichnung,Conforme a RoHS,RoHS-compliant,RoHS-kompatibel,CE-markering
Sub Brand:
Bussmann Series
Type:
Low voltage NH fuse
Voltage Rating:
500 V
