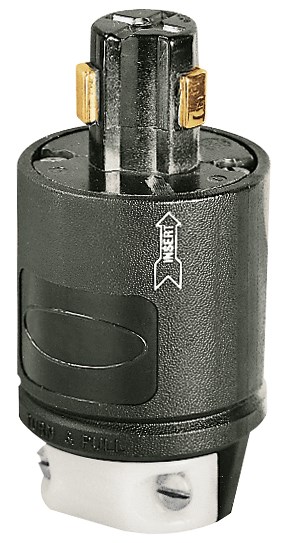

Bryant Electric 23005 Electrical Plugs product image

Bryant Electric 23005 Electrical Plugs product image view 2

Bryant Electric 23005 Electrical Plugs product image view 3

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

Videos & documents

Documents

Spec Sheet

23005

SKU: 23005

MPN: 23005

Purchase options

$128.52 / EA

manufacturer discounts
learn about discounts

$115.67 for $300.00+
$110.16 for $500.00+
$105.57 for $1,000.00+

Available to order

Lead time: over 7 working days

Lead time: over 7 working days
Secure checkout with protected order handling.
Single-unit ordering available.

Dale Electric Supply ships electrical products across the U.S. and supports international orders through customer service. Local delivery may be available in defined regional delivery zones, and larger same-manufacturer orders may qualify for factory-direct shipping. Shipping and fulfillment can vary by product, vendor, manufacturer program, stock state, destination, quantity, and quote workflow.

Customer Service International Sales Factory Direct Shipping

Buying confidence

Established 1948
Secure checkout and protected order handling
Phone support for compatibility and stock questions

Need cross-reference help?

Send us the SKU, manufacturer, photo, or catalog reference. We can cross-reference, confirm availability, and help source hard-to-find electrical supplies.

Contact support Browse catalog Search products

Key specs

View all

Amperage Rating: 20 A
Color: Black/White
Material: Composite
Number Of Poles: 3
Size: 1.62 in x 1.62 in x 3.56 in
Type: Plugs

Description

Product overview

Locking Devices, Bryant Power Interrupting, Industrial, Male Plug, 20A 125V AC or DC/10A 250V DC 480V AC, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Black and White

Manufacturer highlights

Additional manufacturer notes

Short name: BRYANT
Feed description: BRYANT 23005 POW-INT PLUG, 3P3W, 20
Invoice description: POW-INT PLUG, 3P3W, 20A 125-480V

Specifications

UPC: 781786618879

UNSPSC: 39121402

Country of Origin: US

Amperage Rating: 20 A

Color: Black/White

Material: Composite

Number Of Poles: 3

Size: 1.62 in x 1.62 in x 3.56 in

Type: Plugs

Voltage Rating: 125 VAC/125 VDC/250 VDC/480 VDC

Wattage: 9,600 W

Amperage Rating: 20 A

Brand ID: BRYANT

Carton Quantity: 20

Catalog Number: 23005

Color: Black/White

Cord Diameter: 0.320-0.660 in

Cord Type: All Listed Portables

Current Rating: 20 A

Description - Long: Locking Devices, Bryant Power Interrupting, Industrial, Male Plug, 20A 125V AC or DC/10A 250V DC 480V AC, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Black and White

Description - Short: Locking Devices, Bryant Power Interrupting, Industrial, Male Plug, 20A 125V/10A 250V DC 480V AC, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Black and White

EU RoHS Indicator: Yes

Environmental Conditions: Indoor Dry Unless Protected By Additional Means

FEATURES - Bullets: Molded-in male contacts are resistant to damage and provide a consistently positive connection;Insulated non-metallic housing enhances safety and abuse resistance;Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability;Three-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust

FV_Current/Amperage Rating Description: 20 Amp/10 Amp

FV_Voltage Rating Description: 125 VAC/125 VDC/250 VDC/480 VDC

Item Type: 10A/20A Male Nylon Non-Grounding Plug

Material: Composite

Material - Mounting Hardware: Cord Mounted

Number Of Poles: 3

Number Of Wires: 3

OEM Brand Name: Hubbell Bryant

Phase: Multi Phase

Product Name: 23005

Size: 1.62 in x 1.62 in x 3.56 in

Type: Plugs

UPC: 781786618879

Voltage Rating: 125 VAC/125 VDC/250 VDC/480 VDC

Voltage Rating Description: 125 VAC/125 VDC/250 VDC/480 VDC

Wattage: 9,600 W

Wire Size: #14 AWG to #10 AWG
