231TBS
SKU: 231TBS
MPN: 231TBS
Key specs
View all- Material
- Malleable Iron
- Size
- 1/2 IN
- Type
- 45 DEG Connector
Description
Product overview

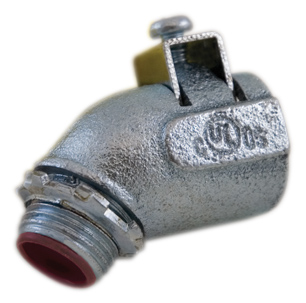

1/2 IN 45DEG Top-Bite saddle type Connectors
1/2 IN 45DEG Top-Bite saddle type Connectors
Manufacturer highlights
Topazs 45 Top Bite Connectors join flexible metal conduit or armored cable to boxes or enclosures when a 45 angle is required. Insulated throat offers...
Topazs 45 Top Bite Connectors join flexible metal conduit or armored cable to boxes or enclosures when a 45 angle is required. Insulated throat offers superior protection against abrasion; dual gripping saddle clamps and tri combo head screw afford easy installation. One piece construction for optimal product strength and integrity; NPSM male thread provides secure connection. High quality malleable iron construction with zinc plated finish for resilience; steel locknut and steel clamps; UL listed.
- With insulated throat
- Male hub threads - NPSM
- One piece malleable construction affording extra strength
- Dual gripping saddle clamps
- Saddle clamps ride up and down on screw for ease of installation
- Tri combo head screw
Additional manufacturer notes
- Short name
- TPZ
- Feed description
- TPZ 231TBS 45 DEG 1/2" TOP BITE SAD
- Invoice description
- 45 DEG 1/2" TOP BITE SADDLE CON 25/150
Specifications
- UPC
- 751338851849
- UNSPSC
- 39121311
- Country of Origin
- MUL
- Material
- Malleable Iron
- Size
- 1/2 IN
- Type
- 45 DEG Connector
- Connection
- Male Threaded
- Connectors (IN)
- Male Threaded IN
- Height
- 2.13 IN
- Knockout Size
- 1/2 IN
- Label Description
- 45° TOP-BITE SADDLE TYPE CONNECTORS
- Length
- 2.13 IN
- Material
- Malleable Iron
- Size
- 1/2 IN
- Size (IN)
- 1/2" IN
- Size (trade) (IN)
- 1/2" IN
- Standard
- cULus E18173
- Type
- 45 DEG Connector
- Width
- 1.26 IN
- Manufacturer keywords
- 45 DEG 1/2" TOP BITE SADDLE CO
