$21.90 / EA
manufacturer discounts
learn about discounts
- $18.88 for $1,300.00+
- $17.82 for $2,000.00+
- $16.91 for $3,000.00+
Local stock: 0
Lead time:
1
-
2
working days
20-Amp, 277-Volt, Flush Mounting Locking Receptacle, Industrial Grade, Grounding, V-0-MAX, Black
20-Amp, 277-Volt, Flush Mounting Locking Receptacle, Industrial Grade, Grounding, V-0-MAX, Black
150
- UPC
- 078477809808
- UNSPSC
- 39121406
- Country of Origin
- MX
- Amperage Rating:
- 20 A
- Color:
- Black
- Material:
- PBT
- Number Of Poles:
- 2
- Size:
- 3.63 H x 1.69 W x 1.31 D IN
- Type:
- Flush Mount Locking Receptacle
- Voltage Rating:
- 277 V
- Amperage Rating:
- 20 A
- Color:
- Black
- Connection:
- Back Wired;Side Wired
- Dielectric Strength:
- 2000 (Min.) V
- Environmental Conditions:
- Flammability (Rated V-2, Rated V-0 per UL94)
- Material:
- PBT
- Mounting:
- Box
- NEMA Rating:
- L7-20R
- Number Of Poles:
- 2
- Number Of Wires:
- 3
- Size:
- 3.63 H x 1.69 W x 1.31 D IN
- Standard:
- NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No.42;UL Fed Spec WC-596 (File E13399);UL Listed 498
- Sub Brand:
- V-0-Max
- Temperature Rating:
- -40 to +60 DEG C
- Type:
- Flush Mount Locking Receptacle
- Voltage Rating:
- 277 V
- Wire Size:
- 14-8 AWG
Recently Viewed
-
2330
LEVITON MANUFACTURING
20-Amp, 277-Volt, Flush Mounting Locking Receptacle, Industrial Grade, Grounding, V-0-MAX, Black
See more details -
19282
HUNTER FAN COMPANY
Unfortunately, we do not have a description available for 19282. Please call (800) 462-7733 fo...
See more details -
-
C20101
PECO FASTENERS & ELECTRICAL SUPPLIES

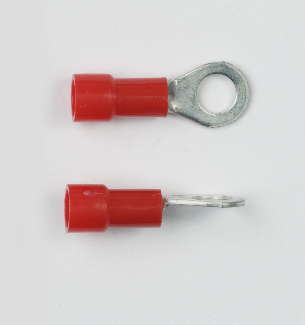

PECO FASTENERS 16-14 VINYL RING - 1/4 STUD 100 PER JAR
