Call Us Today: (800) 462-7733
Dale Electric Supply Co Inc
20 Amp, 480 Volt, NEMA L8-20R, 2P, 3W, Isolated Ground Locking Receptacle, Industrial Grade, Orange
20 Amp, 480 Volt, NEMA L8-20R, 2P, 3W, Isolated Ground Locking Receptacle, Industrial Grade, Orange

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

2340-IG

$28.94 / EA

manufacturer discounts
learn about discounts

  • $24.95 for $1,300.00+
  • $23.55 for $2,000.00+
  • $22.36 for $3,000.00+
Available to order

Local stock: 0
Lead time: 1 - 2 working days

20 Amp, 480 Volt, NEMA L8-20R, 2P, 3W, Isolated Ground Locking Receptacle, Industrial Grade, Orange

20 Amp, 480 Volt, NEMA L8-20R, 2P, 3W, Isolated Ground Locking Receptacle, Industrial Grade, Orange

150

UPC
078477045060
UNSPSC
39121406
Country of Origin
MX
Amperage Rating:
20 A
Color:
Orange
Material:
PBT
Number Of Poles:
2
Size:
3.63 H x 1.69 W x 1.31 D IN
Type:
Flush Mount Locking Receptacle
Voltage Rating:
480 V
Amperage Rating:
20 A
Color:
Orange
Connection:
Back Wired;Side Wired
Dielectric Strength:
2000 (Min.) V
Environmental Conditions:
Flammability (Rated V-2, Rated V-0 per UL94)
Material:
PBT
Mounting:
Box
NEMA Rating:
L8-20R
Number Of Poles:
2
Number Of Wires:
3
Size:
3.63 H x 1.69 W x 1.31 D IN
Standard:
NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No.42;UL Fed Spec WC-596 (File E13399);UL Listed 498
Sub Brand:
V-0-Max
Temperature Rating:
-40 to +60 DEG C
Type:
Flush Mount Locking Receptacle
Voltage Rating:
480 V
Wire Size:
14-8 AWG

Recently Viewed

  • placeholder image

    2340-IG

    LEVITON MANUFACTURING
    20 Amp, 480 Volt, NEMA L8-20R, 2P, 3W, Isolated Ground Locking Receptacle, Industrial Grade, Orange
    See more details
  • placeholder image

    ST483612LG

    HAMMOND MANUFACTURING CO., INC.
    Unfortunately, we do not have a description available for ST483612LG. Please call (800) 462-7733 See more details
  • placeholder image

    AC8791BK

    ARTCRAFT OF MONTREAL
    Unfortunately, we do not have a description available for AC8791BK. Please call (800) 462-7733...
    See more details
  • placeholder image

    ED41B025L

    SIEMENS INDUSTRY, INC.
    SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CA...
    See more details
  • placeholder image

    SPC100DE

    BRYANT ELECTRIC

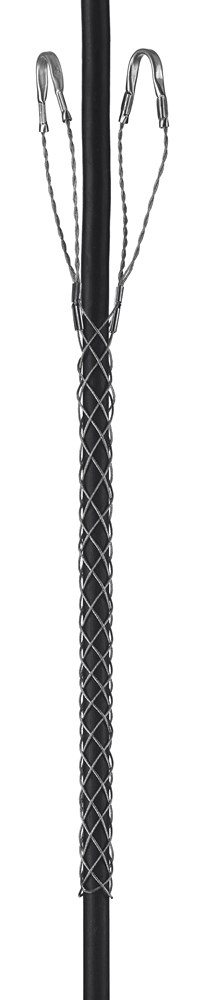

    Wire and Cable Management, Support Grip, Double Eye, Closed Mesh, Tin-Coated Bronze, 1.00-1.24"
