$130.73 / EA
manufacturer discounts
learn about discounts
- $112.70 for $1,300.00+
- $106.39 for $2,000.00+
- $100.98 for $3,000.00+
Local stock: 0
Lead time:
1
-
2
working days
20 Amp, 347 Volt, Industrial Grade, Locking Blade, Connector, Grounding, Wetguard, Yellow
20 Amp, 347 Volt, Industrial Grade, Locking Blade, Connector, Grounding, Wetguard, Yellow
150
- UPC
- 078477474198
- UNSPSC
- 39121402
- Country of Origin
- US
- Amperage Rating:
- 20 A
- Color:
- Yellow
- Material:
- TPV
- Number Of Poles:
- 2
- Size:
- 2.50 Diameter X 5.52 L IN
- Type:
- Watertight Connector;Locking
- Voltage Rating:
- 347 V
- Amperage Rating:
- 20 A
- Color:
- Yellow
- Connection:
- Screw Terminal
- Cord Type:
- SO;ST;STO;SJ;SJO;SJT;SOO
- Environmental Conditions:
- Flammability (Rated V-2 per UL 94 (Wiring Module));Operating Temperature Range (-40 to +60 DEG C)
- Material:
- TPV
- Mounting:
- Cable
- NEMA Rating:
- L24-20R
- Number Of Poles:
- 2
- Number Of Wires:
- 3
- Phase:
- 1
- Size:
- 2.50 Diameter X 5.52 L IN
- Standard:
- NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA (C22.2 No.42);UL (498)
- Sub Brand:
- Wetguard
- Type:
- Watertight Connector;Locking
- Voltage Rating:
- 347 V
- Wire Size:
- 16-10 AWG
Recently Viewed
-
23W07
LEVITON MANUFACTURING
20 Amp, 347 Volt, Industrial Grade, Locking Blade, Connector, Grounding, Wetguard, Yellow
See more details -
SPS050SO
BRYANT ELECTRIC
Wire and Cable Management, Support Grip, Offset Eye, Split Mesh, Lace Closing, Tin- Coated Bronze, 0.50-0.62"
See more details -
78108
LEDVANCE LLC
OBS78108 LED A19, 6W, Dimmable, 93CRI, 470 Lumen, 2700K, 25000 life
See more details -
P226W
BRYANT ELECTRIC
Hubbell Wiring Device Kellems, Wallplates and Box Covers, Wallplate,Non-Metallic, 3-Gang, 2) Toggle 1) Decorator, White
See more details -

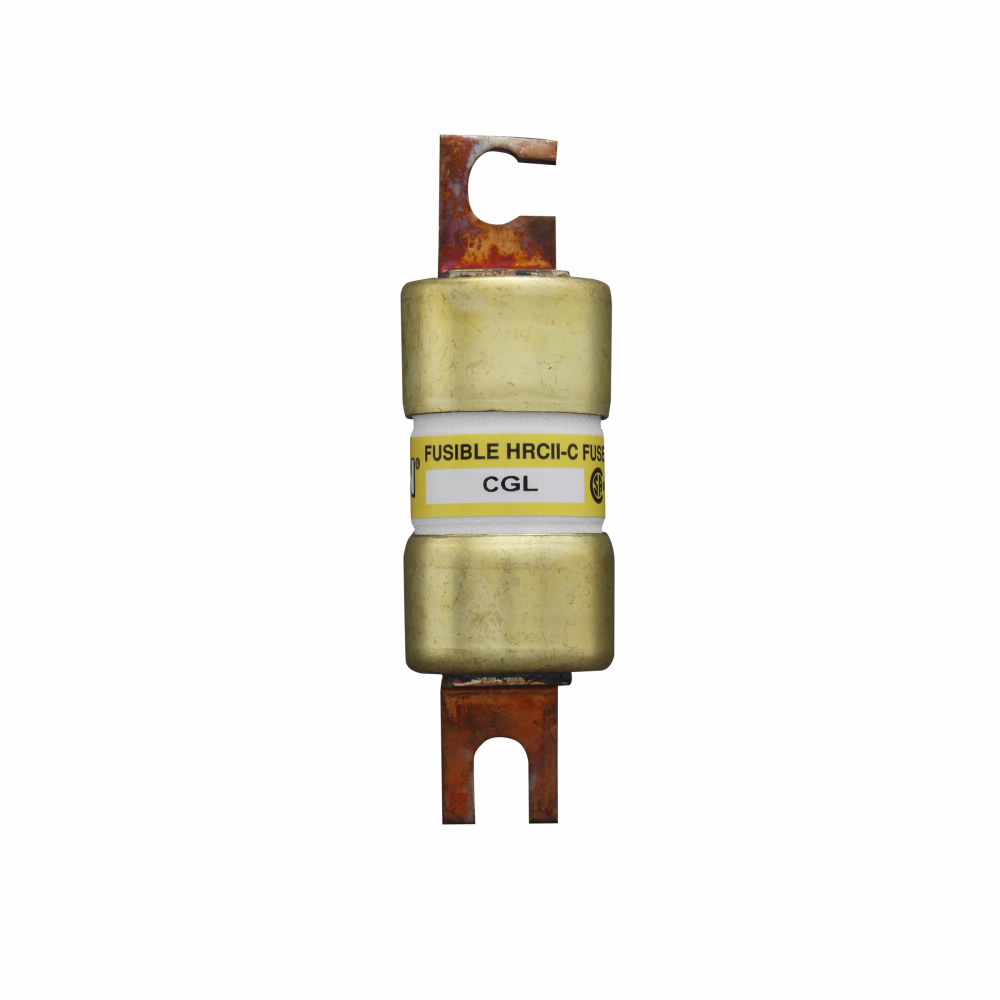

CGL-100
