24TXMEJ160
SKU: 24TXMEJ160
MPN: 24TXMEJ160
Key specs
View all- Amperage Rating
- 160 A
- Size
- 88 mm Diameter X 442 mm Length
- Type
- Medium voltage DIN fuse
- Voltage Rating
- 24,000 V
Description
Product overview

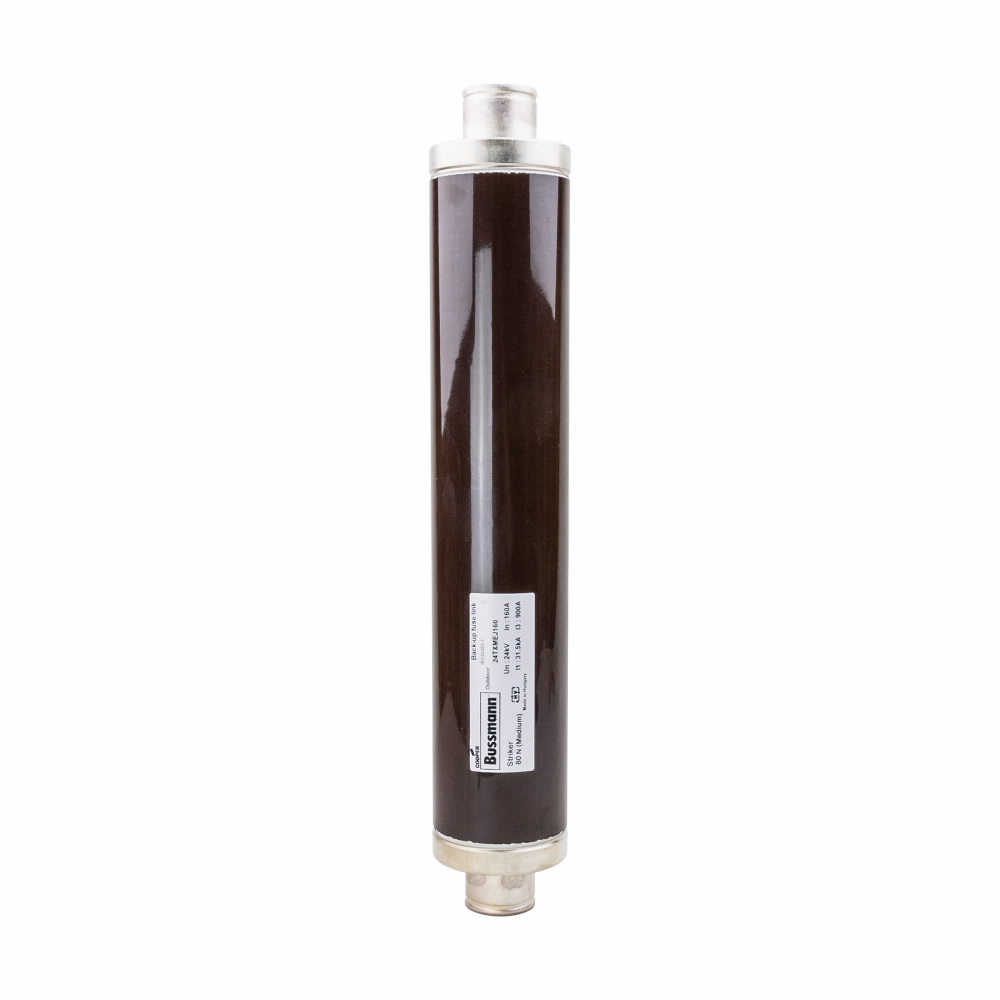

Fuse-link, medium voltage, 160 A, AC 24 kV, 3.5", 88 x 442 mm, back-up, DIN, with striker -24TXMEJ160
Fuse-link, medium voltage, 160 A, AC 24 kV, 3.5", 88 x 442 mm, back-up, DIN, with striker -24TXMEJ160
Manufacturer highlights
Eaton's Bussmann medium voltage DIN full range and back-up fuses offer an excellent transformer protection. They are available with or without striker...
Eaton's Bussmann medium voltage DIN full range and back-up fuses offer an excellent transformer protection. They are available with or without striker. They comply to the dimensional standard DIN 43625, VDE 0670 and IEC 60282-1. They are suitable for indoor and outdoor use.
Additional manufacturer notes
- Short name
- BUSS
- Feed description
- BUSS 24TXMEJ160 24KV 160AMP 3" DIN
- Invoice description
- 24KV 160AMP 3" DIN FUSE
Specifications
- UPC
- 051712186391
- UNSPSC
- 39121626
- Country of Origin
- HU
- Amperage Rating
- 160 A
- Size
- 88 mm Diameter X 442 mm Length
- Type
- Medium voltage DIN fuse
- Voltage Rating
- 24,000 V
- Amperage Rating
- 160 A
- Class
- Class back-up
- Dimensions
- 20.0787 IN X 3.4646 IN X 3.4646 IN
- Interrupt Rating
- 31.5 kAIC
- Size
- 88 mm Diameter X 442 mm Length
- Standard
- VDE ,UL,Contact factory,RoHS Compliant
- Sub Brand
- Bussmann Series
- Type
- Medium voltage DIN fuse
- Voltage Rating
- 24,000 V
