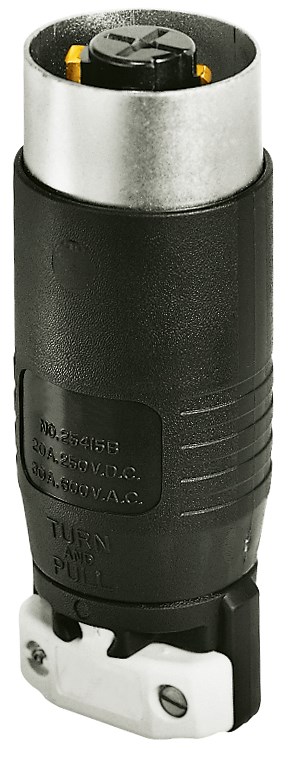

Bryant Electric 25415 Electrical Plugs product image

Bryant Electric 25415 Electrical Plugs product image view 2

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

Videos & documents

Documents

Spec Sheet

25415

SKU: 25415

MPN: 25415

Purchase options

$266.00 / EA

manufacturer discounts
learn about discounts

$239.40 for $300.00+
$228.00 for $500.00+
$218.50 for $1,000.00+

Available to order

Lead time: over 7 working days

Lead time: over 7 working days
Secure checkout with protected order handling.
Single-unit ordering available.

Dale Electric Supply ships electrical products across the U.S. and supports international orders through customer service. Local delivery may be available in defined regional delivery zones, and larger same-manufacturer orders may qualify for factory-direct shipping. Shipping and fulfillment can vary by product, vendor, manufacturer program, stock state, destination, quantity, and quote workflow.

Customer Service International Sales Factory Direct Shipping

Buying confidence

Established 1948
Secure checkout and protected order handling
Phone support for compatibility and stock questions

Need cross-reference help?

Send us the SKU, manufacturer, photo, or catalog reference. We can cross-reference, confirm availability, and help source hard-to-find electrical supplies.

Contact support Browse catalog Search products

Key specs

View all

Amperage Rating: 20A/30 A
Color: Black
Material: Composite
Number Of Poles: 4
Size: 2.50 in x 2.50 in x 6.56 in
Type: Plugs

Description

Product overview

Locking Devices, Bryant Power Interrupting, Industrial, Male Plug, 20A 250V DC/30A 600V AC, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal, Black nylon with cord grip

Manufacturer highlights

Additional manufacturer notes

Short name: BRYANT
Feed description: BRYANT 25415 POW-INT PLUG, 4P5W, 30
Invoice description: POW-INT PLUG, 4P5W, 30A 250/600V

Specifications

UPC: 781786684003

UNSPSC: 39121402

Country of Origin: US

Amperage Rating: 20A/30 A

Color: Black

Material: Composite

Number Of Poles: 4

Size: 2.50 in x 2.50 in x 6.56 in

Type: Plugs

Voltage Rating: 250 VDC/600 VAC

Wattage: 30 kW

Amperage Rating: 20A/30 A

Brand ID: BRYANT

Carton Quantity: 5

Catalog Number: 25415

Color: Black

Cord Diameter: 0.700-1.200 in

Cord Type: All Listed Portables

Current Rating: 20A/30 A

Description - Long: Locking Devices, Bryant Power Interrupting, Industrial, Male Plug, 20A 250V DC/30A 600V AC, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal, Black nylon with cord grip

Description - Short: Locking Devices, Bryant Power Interrupting, Industrial, Male Plug, 60A 250V DC/600V AC, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal, Black and White

EU RoHS Indicator: No

Environmental Conditions: Indoor Dry Unless Protected By Additional Means

FEATURES - Bullets: Molded-in male contacts are resistant to damage and provide a consistently positive connection;Insulated non-metallic housing enhances safety and abuse resistance;Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability;Three-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust

FV_Current/Amperage Rating Description: 20 Amp /30 Amp

FV_Voltage Rating Description: 250 VDC/600 VAC

Item Type: 20A/30A Male Plug

Material: Composite

Material - Mounting Hardware: Cord Mounted

Number Of Poles: 4

Number Of Wires: 5

OEM Brand Name: Hubbell Bryant

Phase: Multi Phase

Product Name: 25415

Size: 2.50 in x 2.50 in x 6.56 in

Type: Plugs

UPC: 781786684003

Voltage Rating: 250 VDC/600 VAC

Voltage Rating Description: 250 VDC/600 VAC

Wattage: 30 kW

Wire Size: #14 AWG to #10 AWG

Do you have a question about 25415?

Videos & documents

Documents

$26.46 / EA

4 available

View details

Specification comparison

Scan the attributes that differ across these alternatives.

5266-C View key specs

SKU: 5266-C
Price: $9.40 / EA
Availability: 8 available
Amperage Rating: 15 A
Assembly Screws: Zinc Plated Steel
Blades/contacts Material: Solid Brass
Color: Black/White
Connection: —
Cord Type: —

View full product details

2611-LEV View key specs

SKU: 2611-LEV
Price: $26.46 / EA
Availability: 3 available
Amperage Rating: 30 A
Assembly Screws: —
Blades/contacts Material: —
Color: Black/White
Connection: Screw Terminal
Cord Type: S;SO;ST;STO;STW;STW-A;STOW-A;SOO;STOO

View full product details

5366-C View key specs

SKU: 5366-C
Price: $15.46 / EA
Availability: 4 available
Amperage Rating: 20 A
Assembly Screws: Zinc Plated Steel
Blades/contacts Material: Solid Brass
Color: Black/White
Connection: —
Cord Type: —

View full product details

515PR View key specs

SKU: 515PR
Price: $5.79 / EA
Availability: 3 available
Amperage Rating: 15 A
Assembly Screws: Zinc Plated Steel
Blades/contacts Material: Brass
Color: Black
Connection: —
Cord Type: —

View full product details

2311 View key specs

SKU: 2311
Price: $13.67 / EA
Availability: 8 available
Amperage Rating: 20 A
Assembly Screws: —
Blades/contacts Material: —
Color: Black/White
Connection: Screw Terminal
Cord Type: S;SO;ST;STO;STW;STW-A;STOW-A;SOO;STOO

View full product details

5369-C View key specs

SKU: 5369-C
Price: $26.46 / EA
Availability: 4 available
Amperage Rating: 20 A
Assembly Screws: Zinc Plated Steel
Blades/contacts Material: Solid Brass
Color: Black/White
Connection: —
Cord Type: —

View full product details

Attribute	5266-C 15 Amp, 125 Volt, Industrial Grade, Plug, Straight Blade, Grounding, Black-White	2611-LEV 30 Amp, 125 Volt, NEMA L5-30P, 2P, 3W, Locking Plug, Industrial Grade, Grounding...	5366-C 20 Amp, 125 Volt, Plug, Straight Blade, Industrial Grade, Grounding, Black-White	515PR Leviton 000-515PR-000 15 Amp Black Rubber Plug Grounded 125 Volt	2311 20 Amp, 125 Volt, NEMA L5-20P, 2P, 3W, Locking Plug, Industrial Grade, Grounding...	5369-C 20 Amp, 125 Volt, Connector, Industrial Grade, Straight Blade, Grounding, Black-...
Price	$9.40 / EA	$26.46 / EA	$15.46 / EA	$5.79 / EA	$13.67 / EA	$26.46 / EA
Availability	8 available	3 available	4 available	3 available	8 available	4 available
Amperage Rating	15 A	30 A	20 A	15 A	20 A	20 A
Assembly Screws	Zinc Plated Steel	—	Zinc Plated Steel	Zinc Plated Steel	—	Zinc Plated Steel
Blades/contacts Material	Solid Brass	—	Solid Brass	Brass	—	Solid Brass
Color	Black/White	Black/White	Black/White	Black	Black/White	Black/White
Connection	—	Screw Terminal	—	—	Screw Terminal	—
Cord Type	—	S;SO;ST;STO;STW;STW-A;STOW-A;SOO;STOO	—	—	S;SO;ST;STO;STW;STW-A;STOW-A;SOO;STOO	—
Environmental Conditions	Flammability (Rated V-2 per UL94);Operating Temperature Range (-40 to +60 DEG C)	Flammability (Rated V-2 per UL 94);Operating Temperature Range (-40 to +60 DEG C)	Flammability (Rated V-2 per UL94);Operating Temperature Range (-40 to +60 DEG C)	Flammability (Rated V-2 per UL94);Operating Temperature Range (-40 to +60 DEG C)	Flammability (Rated V-2);Operating Temperature Range (-40 to +60 DEG C)	Flammability (Rated V-2 per UL94);Operating Temperature Range (-40 to +60 DEG C)
Horsepower	—	2 HP	—	—	1 HP	—
Material	Super Tough Nylon (Body)	Impact Modified Nylon	Super Tough Nylon (Body)	EPTR Rubber (Body)	Impact Modified Nylon	Super Tough Nylon (Body)
Mounting	Cable	Cable	Cable	Cable	Cable	Cable
NEMA Rating	5-15P	L5-30P	5-20P	5-15P	L5-20P	5-20R
Number Of Poles	2	2	2	2	2	2
Number Of Wires	3	3	3	3	3	3
Phase	—	1	—	—	1	—
Replacement Parts Material	Thermoplastic (Back Cover);Nylon (Wire Module, Cord-Clamp, Clamp Insert);Brass (Terminal Screws)	—	Thermoplastic (Back Cover);Nylon (Wire Module, Cord-Clamp, Clamp Insert);Brass (Terminal Screws)	—	—	Thermoplastic (Back Cover);Nylon (Wire Module, Cord-Clamp, Clamp Insert);Brass (Terminal Screws)
Size	1.53 Dia x 1.98 H IN	28 Diameter X 2.47 L IN	1.53 Dia x 1.98 H IN	1.54 Dia x 2.77 H IN	28 Diameter X 2.47 L IN	1.49 Dia x 2.76 H IN
Standard	NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Listed 498 (File E13399);UL Fed Spec WC-596 (File E13393);UL Fed Spec WC-598	NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA Certified (File LR-406);UL Fed Spec WC-596 (File E13393);UL498 (File E13393)	NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Listed 498 (File E13399);UL Fed Spec WC-596 (File E13393)	NEMA (WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406)UL Listed 498 (File E13393)	NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA Certified (File LR-406);UL Fed Spec WC-596 (File E13393);UL498 (File E13393)	NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Listed 498 (File E13399);UL Fed Spec WC-596 (File E13393)
Sub Brand	Black & White	Black & White	Black & White	—	Black & White	Black & White
Type	Straight Blade Plug	Locking Plug	Straight Blade Plug	Straight Blade;Rubber	Locking Plug	Plug
Voltage Rating	125 V	125 V	125 V	125 V	125 V	125 V
Wire Size	18-10 AWG (Terminal Accommodation);.250-.685 IN (Cord Grip Range)	18-10 AWG	18-10 AWG (Terminal Accommodation);.250-.685 IN (Cord Grip Range)	18-12 AWG (Wire Gauge);0.245-0.700 IN (Cord Grip Range)	18-10 AWG	18-10 AWG (Terminal Accommodation);.250-.685 IN (Cord Grip Range)
